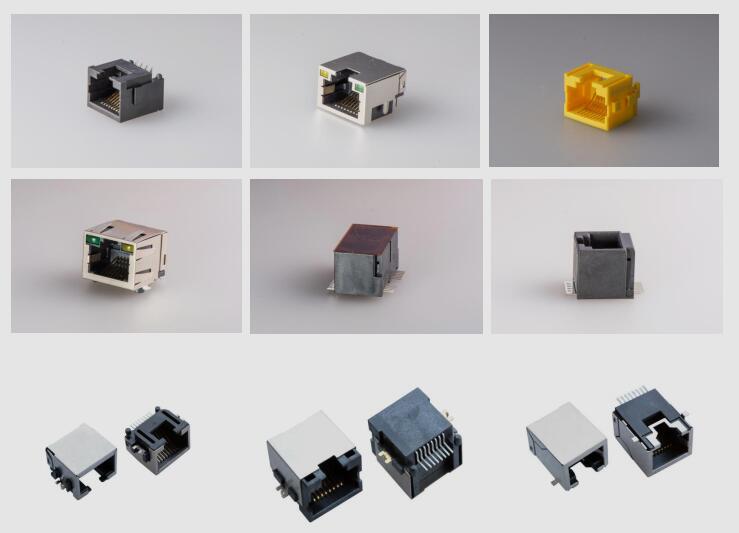

8P8C Sinking Board Low Profile RJ45 Jack With LED Shielded Blue LCP House

Low Profile RJ45 Jack 8P8C Sinking Board With LED And Shielded , Blue Color , LCP House

Spectifications

NOTES:

ELECTRICAL:
1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:

1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.

ENVIRONMENTAL:

1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)
MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.
Lead-free process,compliant RoHS

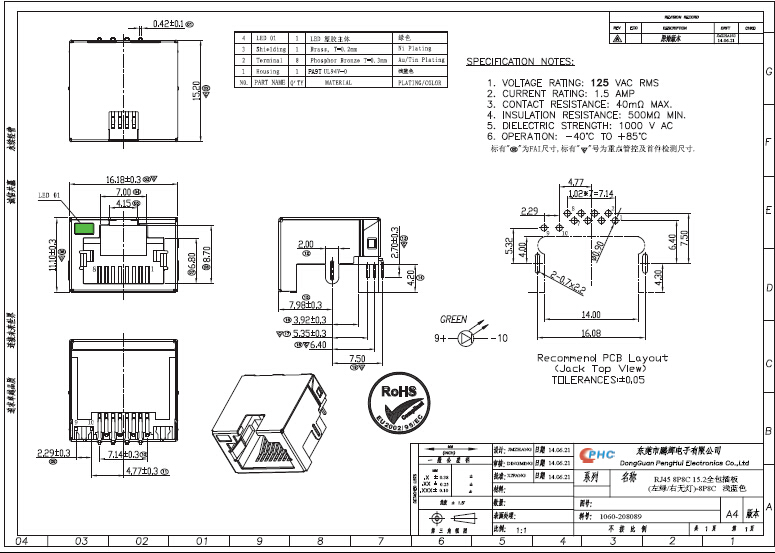

Drawing

Low Profile RJ45 Jack 8P8C Sinking Board With LED And Shielded , Blue Color , LCP House

(PHC)
