PHC Single Port Low Profile Rj45 Connector 8P8C Gold Plated G / F

PHC Low Profile RJ45 Jack Single Port 8P8C Gold-Plated G / F

Specifications

ELECTRICAL:

1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:

1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.

ENVIRONMENTAL:

1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

Drawing

PHC Low Profile RJ45 Jack Single Port 8P8C Gold-Plated G / F

( PHC )

Why Choose PengHui

Quality :

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing ,

packing .All the step are doing by ourself . So we can control the quality .

Unit Price

Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent

Service

PHC Offer good pre-sales & after-sales service &Strong technical support

Design &Technical strength

We have many more than 20years experience in connector industry engineer can support

your new project.Design a new tooling time : 30-45 workdays

PATENTS PRODUCTS IN China

RJ45 With Transformers series

Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

------------- PHC Sales & Support Team

PengHui Electronics Co., LTD was founded in July 2006,is Located in ChangAn Dong Guan Guang Dong of China,Factory covers an area of 8000 square meters,More than 300 employees.In 2009 August we set up a production factoryin HuNan; In 2010 we got the ISO9001-2008 and UL Certification. PengHui Focus on design, production, sales&services and provide ODM/OEM in connector.

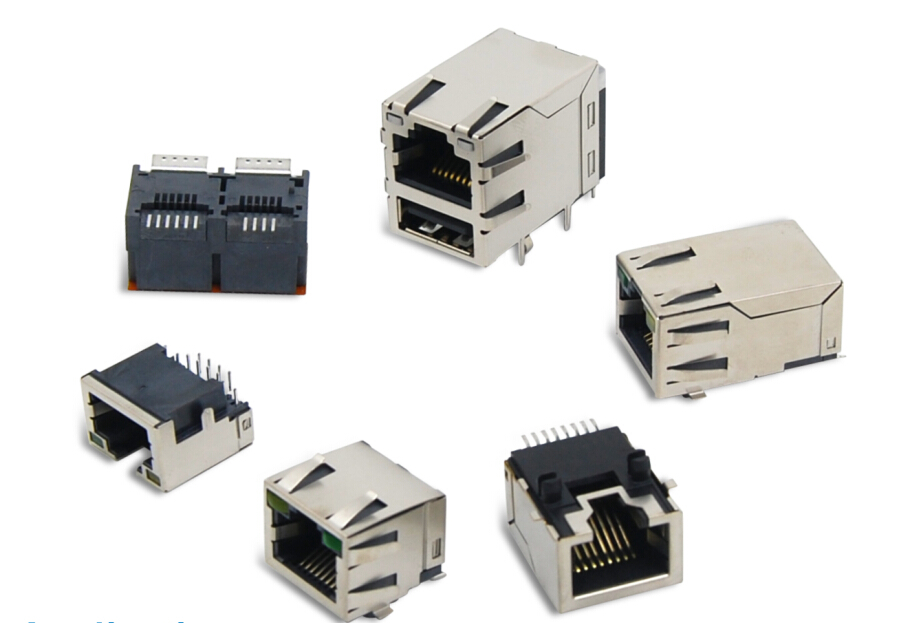

At present Company has10 units Stamping machine, 20units injection molding,more than 30 units Automata, and many test equipment,Except the plating ,from Mold design ,injection molding, stamping,assembly, packaging,testing process,are all by our factory. So we can control the cost and quality better. Our main product: Modular RJ45 JACK, RJ1,RJ45 with transformers connectors, Pin header&Female header,FPC,SFP,USB,CARD CONNECTOR etc,.

Since the company found ,PengHui have more and more high tech talen and advanced manufacturing technology,Our product are exported to the Americas,the Europe, the Middle East,Southeast Asia and other places.And also established strategic partnership of long-term. To many well known customer in foreign. Our clients include consumer electronics,home appliances,communications equipment,power system, Pay system,and securlty,automtive,medical and other industries. The Main customers:HUAWEI, MOTO, HITACHI, HISENSE, FLEXTRONICS, LIANDI, PAX, STAR-NET,NEWLAND AND so on.

After nearly ten years of efforts, with innovative products ,excellent quality,accurate delivery and excellent service,great to win customers trust and praise, and establish a good reputation within the industry,We believe: customer has a bright future, we just have beautiful tomorrow!
