96x32 Dots 0.68Inch COG OLED Display Module with SSD1306BZ Driver IC
Product Description
VGM096032A4W01 is a monochrome OLED display module with 96×32 dot matrix. It consists of organic compounds that emit light when an electric current is applied. This technology allows for each pixel to emit its own light, resulting in high contrast, deep blacks, and vibrant colors. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
| ITEM | SPECIFICATION |
| Display Color | White |
| Dot Matrix | 96(W)×32(H) |
| Dot Size | 0.15(W)×0.15 (H) (mm2) |
| Dot Pitch | 0.17 (W)×0. 17 (H)(mm2) |
| Aperture Rate | 78% |
| Active Area | 16.3(W)×5.42(H)(mm2) |

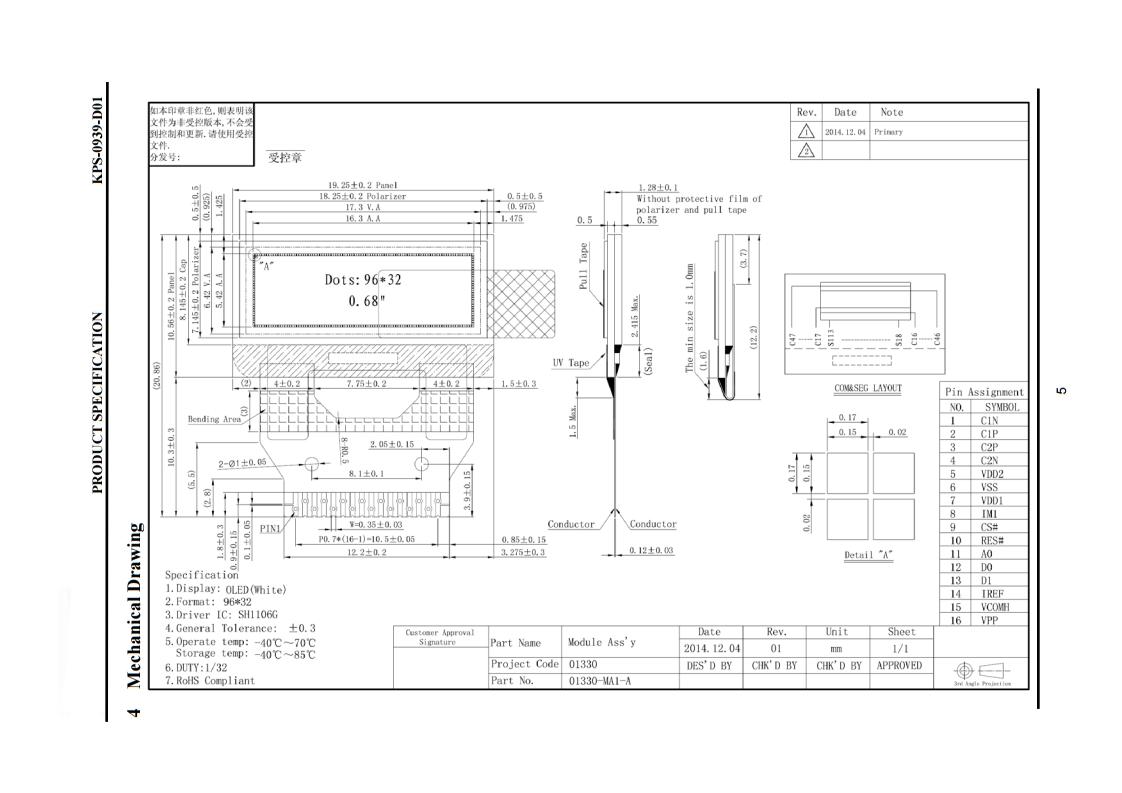

| Panel Size | 19.25(W)×10.56(H)×1.05(T)(mm3) |
| Module Size | 19.25(W)×20.86(H)×1.28 (T)(mm3) |
| Diagonal A/A Size | 0.68 inch |
| Module Weight | 0.54±10% gram |
| Driver IC | SH1106G |
| Interface | I2C, 4-wire SPI |
| Wide range of operating temperature | -40℃ to 70℃ |
| Wide range of Storage temperature | -40℃ to 85℃ |
Product Applications
A 0.68-inch display, can be used in various applications that require a small-sized, high-quality display. Here are some common applications where a 0.68-inch display can be utilized:
| Wearable Devices | smartwatches, fitness trackers,smart glasses |
| Portable Medical Devices | pulse oximeters, glucose meters, portable ECG monitors |
| IoT (Internet of Things) Devices | small sensors, smart home controllers, connected gadgets |
| Handheld Instruments | small handheld instruments,measurement tools |
| Portable Audio/Video Players | pulse oximeters, glucose meters, portable ECG monitors |
| Audio Equipment | MP3 players, digital audio recorders |
| Small-Scale HMI (Human-Machine Interface) | control panels, automation systems, industrial equipment |
| Smart Home Devices | smart thermostats, smart plugs, home automation controllers |
Customized Services
We have a professional team to provide OEM&ODM services. Even customers do not have a cooperation with us, we also can provide technical services. And we can customize 100% completely the same according to customer's requirement and guarantee to provide our products for sale for a long time and provide complete after-sales service.
1. LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2. Display form: LCD panel/COB/COG/COF
3. Polarizer: Transflective, Transmissive, Reflective
4. Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5. Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6. Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
Our Advantages
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. High quality with direct factory price.
4. Faster reply within 24 hours.
5. Better after-sale service.
6. Last for one year warranty.
7. Professtional ODM&OEM service.
8. Even customers do not have a cooperation with us, we also can
provide technical services.
9. If mass production has any quality problem, customer can return
it.
FAQ
1.What's the MOQ of your product?
-Different MOQ requirements for bulk order.
2. How do you package the product?
-For small sizes of products we often use tray + carton, and for
bigger sizes we use foam slot + carton. Also we can design packages
to meet customers' requirements.
3. How to deal with it if the goods are damaged when arrive?
-Please don't hesitate to contact me immediately, I will verify the
damage and contact logistics soon to solve it for you ASAP.
4. What about the delivery time?
-For standard product,1 week for samples,4 weeks for bulk order;
and for customization,3-4 weeks for samples,4 weeks for mass
production after sample confirmation.
5. Is there any warranty for your products?
-Yes,we offer 12-month warranty for unartificial defect.
|
