SPI OLED Display Module 2.23′′ 128*32 Parallel NHD-2.23-12832UCY3

Categories OLED Display Module
Brand Name: ROYAL DISPLAY
Model Number: RYOM223-01
Certification: SGS ROHS
Place of Origin: CHINA
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 300k/Month
Delivery Time: 10-15 Working Days
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Model No.: RYOM223-01
Resolution: 128x32 dots
Display Color: Yellow/White/Blue
Controller IC: SSD1305
Outline Dimensions: 63.2*43.1mm
Interface: Parallel, SPI or I2C interface
Active Area: 60*18mm
Operating Temp.: -20°C~+70°C
Storage Temp.: -30°C~+80°C
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SPI OLED Display Module 2.23′′ 128*32 Parallel NHD-2.23-12832UCY3

100% replace NHD-2.23-12832UCY3 2.23'' 128*32 OLED display

DESCRIPTION OF 2.23'' GRAPHIC OLED DISPLAY

128x32 Graphic OLED Display | RYOM223-01

Module size: 63.2mm x 43.1mm

Driver: SSD1305

Modify an OLED display to your exact specifications. Our experts can modify the display's connectors with pin header soldering or customize the display interface with resistors and jumpers. Adjust the size, shape, and pinout of your OLED's cables and PCB to meet your design requirements.


1Model NumberRYOM223-01
2Resolution128*32
3Display colorYellow/White/Blue
4Dot Patch0.22*0.19mm
5Controller ICSSD1305
6Outline Dimensions63.2*43.1mm
7Active Area60*18mm
8InterfaceParallel, SPI or I2C interface
9Operating Temp.-20°C~+70°C
10Storage Temp.-30°C~+80°C


MORE INFORMATION ABOUT OLED DISPLAY

OLED Displays
Lighter, Brighter, and More Efficient
OLEDs offer bright, high contrast graphics with faster response times, wider viewing angles, and lower power consumption than conventional LCDs and VFDs. On this page you'll find all of our graphic OLEDs, available in character type and graphic types with screen sizes ranging from 0.95" to 3.12" and resolutions from 96x64 pixels to 256x64 pixels. Character OLED displays range from 2-line by 16 characters to 4-line by 20 characters and are available in a variety of colors including green, yellow, blue, white, and full color.

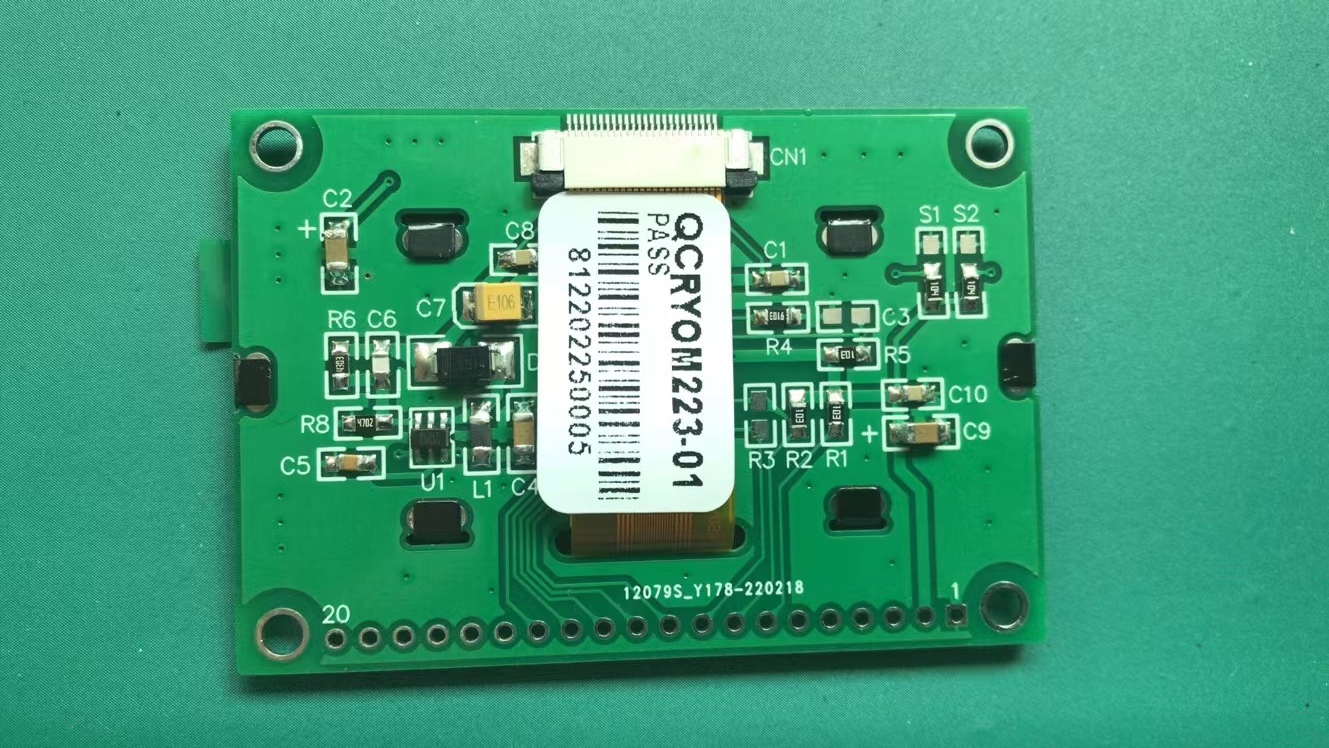

DETAILED IMAGES



PRODUCT APPLICATION

Cable Customization
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that's precisely designed to make your connections streamlined and secure.

Connector Customization
Easily modify any connectors on your display to meet your application's requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors which your display may require.

Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.

PCB Modifications
Change the shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.

2.23 inch monochrome graphic OLED display module with PCB introduction:

Mono graphic OLED screen 2.23inch with PCB 128x32 pixels is mono oled display module, 128x32 pixels mono oled display screen.

The 2.23 inch monochrome oled display with PCB, is a graphic passive matrix oled display, it have 128x32 dots, wide viewing angle, wide temperature, high brightness, high contrast, fast response time.


Mono graphic OLED display module screen-2.23inch oled screen with PCB:

because it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than TFT LCD module,

and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle.

2.23’’ 128x32 OLED lcd display module with PCB could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree.

2.23 inch OLED screen with PCB 128x32 dots is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display.
