| Categories | Fiber Optic Accessories |
|---|---|
| Brand Name: | GEZHI or OEM |
| Model Number: | FC/UPC Fiber Optic Attenuator |
| Certification: | CE RoHS,ISO9001 |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | Negotiable |
| Supply Ability: | 5000pcs per month |
| Packaging Details: | Paper box |
| Fiber Connector: | FC/UPC |
| Storage Temperature Range: | -40~85°C |
| Operating Temperature Range: | -40~85°C |
| Humidity: | 95%RH |
| Polarization Dependent Loss: | ≤0.2dB |
| Return Loss: | ≥55dB |
| Attenuation Accuracy: | ±0.5dB |
| Operating Wavelength(nm): | 1260~1620(SM) |
| Attenuation: | 1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB |
| Transfer Mode: | Singlemode |
| Connector Gender: | Fixed Male to Female |
| Ferrule Type: | Zirconia Ceramic |
| Company Info. |
| Gezhi Photonics (Shenzhen) Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

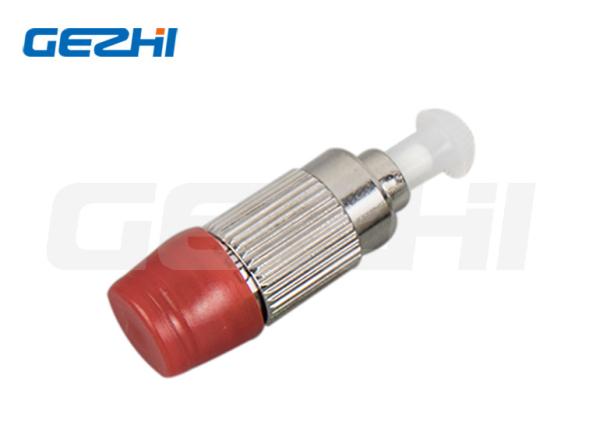

FC/UPC Singlemode Fixed Fiber Optic Attenuator, Male-Female Fiber Attenuator FC/UPC
Products Description
As optical passive devices, the attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Feature
• Low insertion loss.
• High-precision ceramic sleeve and smooth inner hole.
• Good degree of concentricity and inner circle.
• Superior repeatability and changeability.
• Excellent anti-aging performance.
• Stable connectivity compatibility.
• Uniform insertion force and good consistency.
• Elaborately designed protection with dust cap and bag package
A Variety of Applications in Fiber Optic Communication Systems
Fiber optic attenuators are usually used to test the power level margins in a fiber optic communication system, and properly match transmitter and receiver optical signal levels.
Product Paramenters
|
