Sc Upc Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories

Categories Fiber Optic Accessories
Brand Name: GEZHI or OEM
Model Number: SC UPC Fiber Optical Attenuator
Certification: ISO, ISO9001
Place of Origin: China
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Packaging Details: Paper box
Name: SC/UPC Female-Male Fiber Optical Attenuator
Attenuation Values: 0-25db
Attenuator Wavelength: 1310/1550
Operating Temperature: -40°C~+75°C
Connector Type: SC/UPC
Operating Wavelength(SM): 1310nm And 1550
Attenuator Mode: In Line Type
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Sc Upc Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories

SC UPC Inline Optical Attenuator Female Male 0-25db Fiber Optic Accessories


Product introduction


Attenuator optic attenuator is a precise device that can provide different attenuation for needing.They are used in the transmit line of fiber.There are two kinds of attenuator,alterable and fixable .The attenuation form 1dB to 65dB.
Optic attenuator is a precise device that provide the attenuation form 1dB to 65dB.It is design under the international standard and accord with the standard of IEC.It is largely used in the area of optic communication.
Fixable attenuator can be adjusted in need of the project.It is used in many fiber transmissions.There are three kinds of these products,FC/SC/ST convertor,high return lossof FC/SC type,high return loss of online type.


Key Features


1.1dB to 25dB
2.ROHS, ISO9001,NTT,JIS,IEC,Bellcore
3.OEM/ODM


Application


1. Testing equipment
2. Fiber optical CATV
3. Fiber optical sensor
4. Fiber optical telecommunication system


Product specifications


arameterSM(9/125)MM(50/125,62.5/125)
Attenuation values1dB to 20dB(1dB step),25dB,30dB1dB to 25dB(1dB step)
attenuator Wavelength1310nm & 1550nm850nm &1300nm
Attenuation Tolerance (dB)1-10dB<±1.0dB ( typical ) standard2dB,5dB,10dB<±1.0dB(typical ) standard
11-25dB<±10% ( typical ) standard15dB<±10% ( typical ) standard
1-10dB<±0.5dB ( typical ) premium2dB,5dB,10dB<±0.5dB(typical ) premium
11-25dB<±5% ( typical ) premium15dB<±5% ( typical ) premium
attenuator Return LossPC45 dB

/

UPC≥55 dB
APC≥65 dB
Attenuator modeFixed type, male to female type, In-line type, Variable type
attenuator Operating Temperature-40°C~+75°C
attenuator Storage Temperature-40°C~+85°C

Pictures

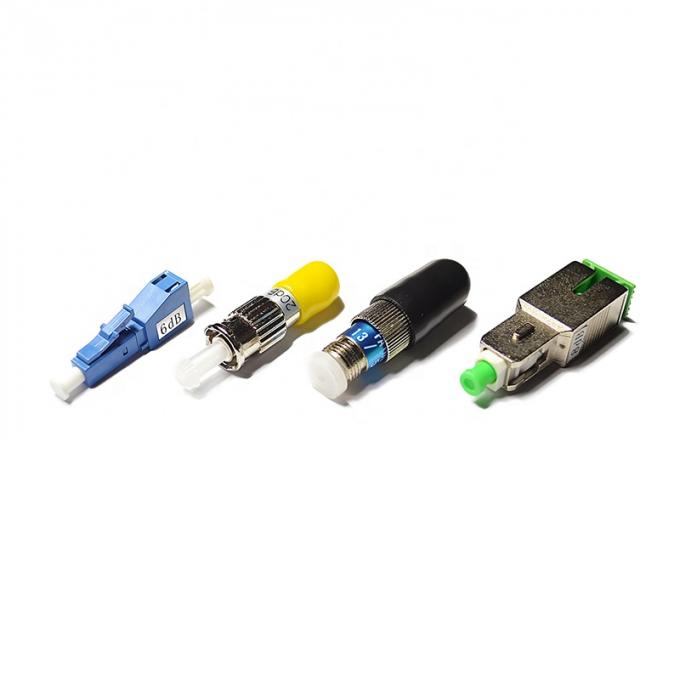

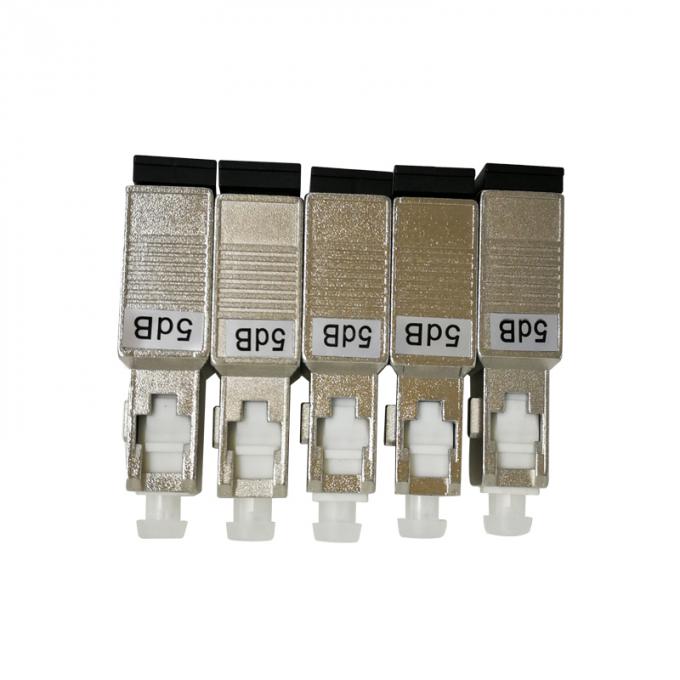

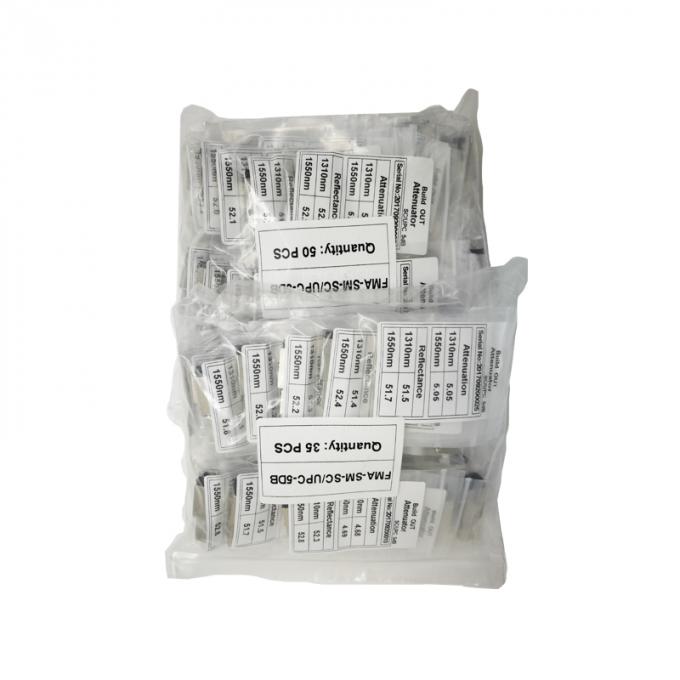

SC UPC Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories 1

SC UPC Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories 0

SC UPC Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories 2

SC UPC Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories 3
