PV Solar Panel Inverter MIN 10000TL-X 10Kw Three Phase Grid Tie Inverter

Categories On Grid Solar System
Brand Name: Growatt
Model Number: MIN 10000TL-X
Certification: CE, IEC62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, C10/C11,EN50549, CEI 0-21, CEI 0-16, IEC62116, IEC61727, AS/NZS 4777 , G98, TOR Erzeuger
Place of Origin: China
MOQ: 10 units
Price: negotiable
Packaging Details: carton package
Type: DC/AC Inverters
Output Type: Three Phase
Inverter Efficiency: 99.9%
Output Frequency: 50/60hz
Warranty: 5-10 Years
MPPT Voltage Range: 180-1100V
Operating temperature range: -25°C--60°C
Protection: IP65
Display: OLED+LED/WIFI+APP
AC connection: Cable gland+OT terminal
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PV Solar Panel Inverter MIN 10000TL-X 10Kw Three Phase Grid Tie Inverter

Growatt Residential PV Inverter MIN 10000TL-X 10kw Battery ready grid tied three phase inverter

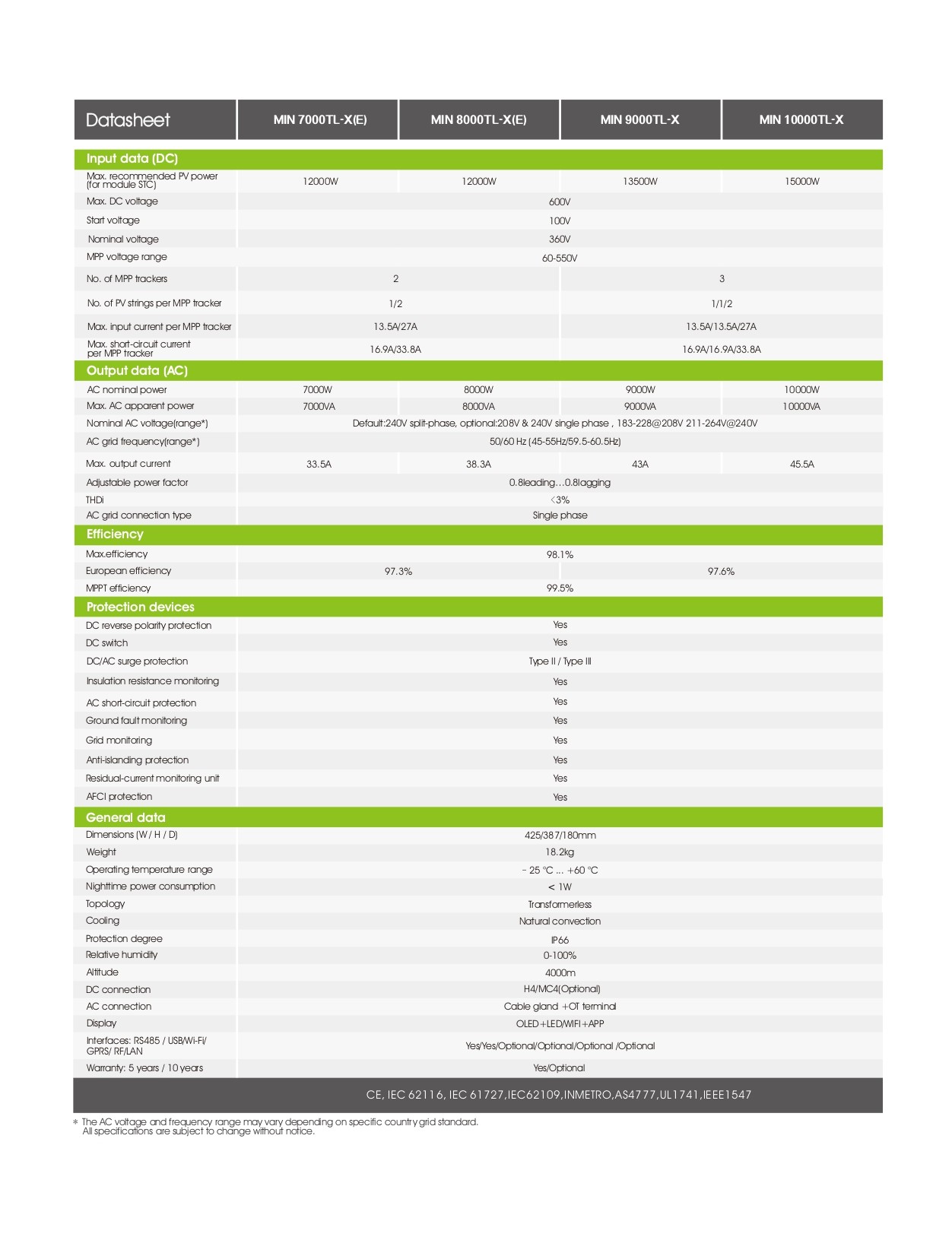

Specification
Place of Origin:
China
Brand Name:
GROWATT
Model Number:
MIN7000~10000TL-X
Input Voltage:
60V-550V
Output Voltage:
Default:240V split-phase, optional:208V & 240V single phase , 183-228@208V 211-264V@240V
Output Current:
33.5-45.5A
Output Type:
Single Phase
Size:
425/387/180mm
Type:
DC/AC Inverters
Certificate:
CE UNE IEC VFR
Inverter Efficiency:
99.9%
Warranty:
10 Years
Weight:
18.2kg
Max. DC voltage:
550V
Nominal voltage:
360V
Start voltage:
100V
MPPT voltage range:
2
Protection degree:
IP65
Interfaces: USB/RS485/WiFi /GPRS/LAN/RF:
yes/yes/Optional/Optional/Optional/Optional

Price Discount Solar Related Products Growatt Min 7000-10000tl-x Single Phase On-grid 2-3Mppt Solar Inverter For Solar System
