Categories | Solar Power Inverter |
---|---|
Place of Origin: | Zhejiang, China |
Brand Name: | Deye |

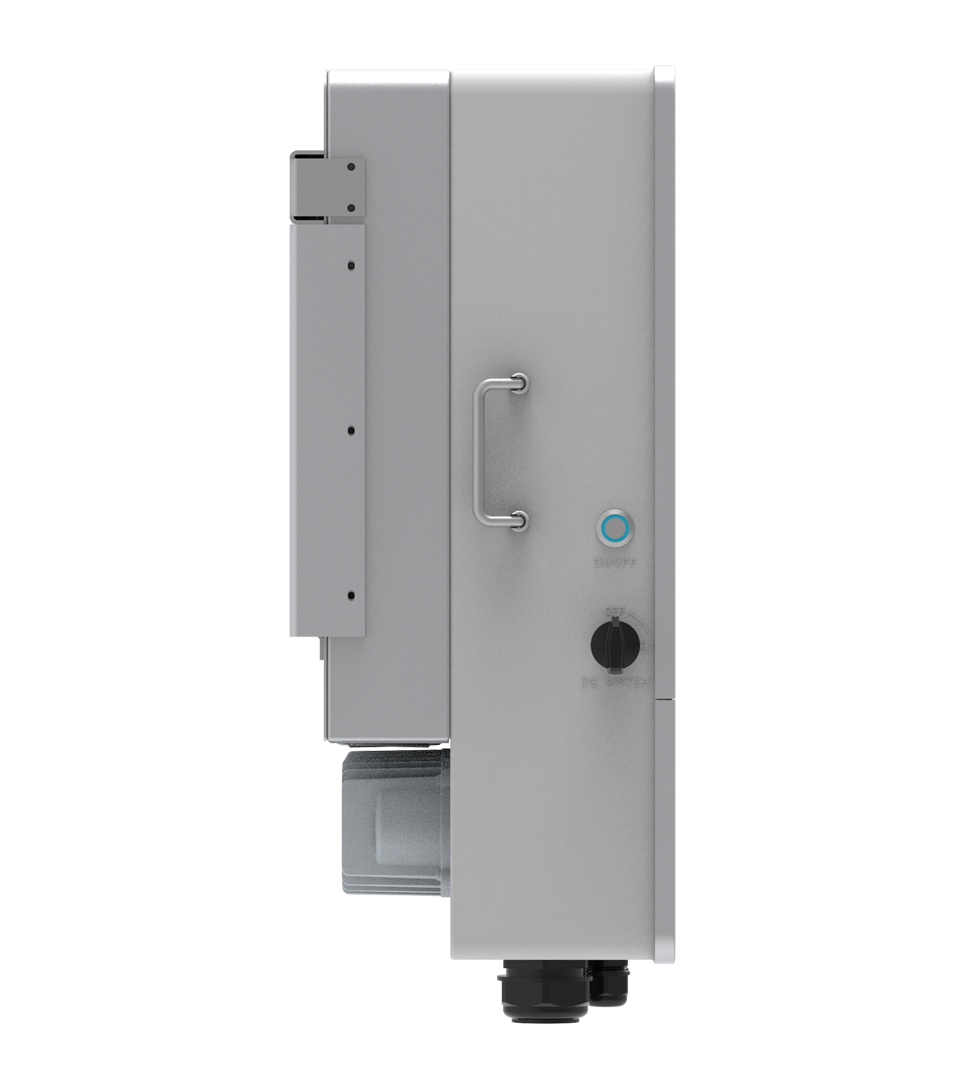

Model Number: | SUN-8K-SG04LP3-EU |
Input Voltage: | 550(160~800) |
Output Voltage: | 380V |
Output Current: | 15.2/14.5 |
Output Frequency: | 50/60Hz |
Output Type: | Three Phase |
Size: | 422*702*281 |
Type: | DC/AC Inverters |
Inverter Efficiency: | 97.6% |
Certificate: | EN/IEC |
Warranty: | 5 YEARS |
Weight: | 33.6kg |
Battery Type: | Lithium-ion |
Battery Voltage Range: | 40~60V |
Max. Charging Current: | 13A+13A |
Number of battery input: | 2 |
Charging Strategy for Li-Ion Battery: | Self-adaption to BMS |
Max. DC Input Power: | 10.4KW |
Rated PV Input Voltage: | 160~800V |
MPPT Range: | 200-850V |
No.of MPP Trackers: | 2 |
No.of Strings per MPP Tracker: | 1+1 |
Packaging Details: | Plywood Case |
Port: | Shanghai/Ningbo/Qingdao/Guangzhou |
Supply Ability: | 10 Carton/Cartons per Day |
Price: | $1,450.00/watts 1-4 watts |
Company Info. |
Zhengzhou LingYang New Energy Technology Co.,Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 40~60 | |||||||||
Max. Charging Current (A) | 120 | 150 | 190 | 210 | 240 | |||||
Max. Discharging Current (A) | 120 | 150 | 190 | 210 | 240 | |||||
Charging Curve | 3 Stages / Equalization | |||||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||||
PV String Input Data | ||||||||||
Max. DC Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | |||||
Rated PV Input Voltage (V) | 550(160~800) | |||||||||
Start-up Voltage (V) | 160 | |||||||||
MPPT Range (V) | 200-650 | |||||||||
Full Load DC Voltage Range (V) | 350-650 | |||||||||
PV Input Current (A) | 13+13 | 26+13 | ||||||||
Max. ISC (A) | 17+17 | 34+17 | ||||||||
No.of MPP Trackers | 2 | |||||||||
No.of Strings per MPP Tracker | 1+1 | 2+1 |
![]() |
