12m Scissor Lifting Work Platform Lead Acid Battery Electric Cargo Lift Platform

Categories Lifting Work Platform
Brand Name: HIGHTOP
Model Number: HTLP-12
Certification: CE,EPA,ISO,TUV
Place of Origin: China
MOQ: 1 Set
Price: Negotiation
Payment Terms: Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability: 100 set per month
Delivery Time: 5-14 work days
Packaging Details: Wooden case
Product Name: Lift Work Platform
Safe working load of extension: 320kg
Overall length: 2600mm
Overall width: 1170mm
Maximum platform height: 12m
Working platform size (length x width): 2400mm*1170mm
Company Info.
Shandong Hightop Group
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

12m Scissor Lifting Work Platform Lead Acid Battery Electric Cargo Lift Platform

12m Lift Work Platform Lead Acid Battery Electric Cargo Lift Platform


Description of Lift Work Platform

The body of self-walking mini-lifing platform is beautiful, compact and flexible, The main engine is electric-drivenwhee steerina. which has the functions ot sel-wa kina. ifing and steerina. mported hvdrau ic components. eauipped witrexplosion-proot tube device. emercency descent device.


Features of Lift Work Platform

waking steering is realized by electric drive machine. ow noiseno air polution: durable. non-scratching ground. non-sticky debris. non-skid trackless tires are selected: under theoremise of ensuring satetv and reliability. product contro mode and control procedures are optimized. and the operation ismore humane.


Technical parameters of Lift Work Platform


ModelHTLP-12
Sale working load320kg
Safe working load of extension113kg
Maximum number of2
Maximum working height14m
Maximum platform height12m
overall length2600mm
overall width1170mm
Overall height (fence not folded)2640mm
Overall height (fence folding)1940mm
Working platform size (length x width)2400mm* 1170mm
Platform extension size0.7m
Minimum ground clearance (retracted)0.1m
Minimum ground clearance (lifting0.019m
Wheelbase1.89m
Minimum turning radius (inner wheel)0
Minimum turning radius (outer wheel)2.20m
Lifting motor / drive motor24v/4.0kw
Machine ground speed (stowed)3.5km/h
Machine travel speed (lifting state)0.8km/h
Up / down speed80/90 sec
Battery6V/230Ah
Charger24v/25A
Max Climb Capability25%
Maximum allowable working angle (indoor/ outdoor)2° /3°
tyre4.381*127
Weight of whole machine2800kg

Adhibitions of Lift Work Platform


Maintenance works, such as cleaning, installation, decoration, inspection, repairing and maintenance in workshops, airports.

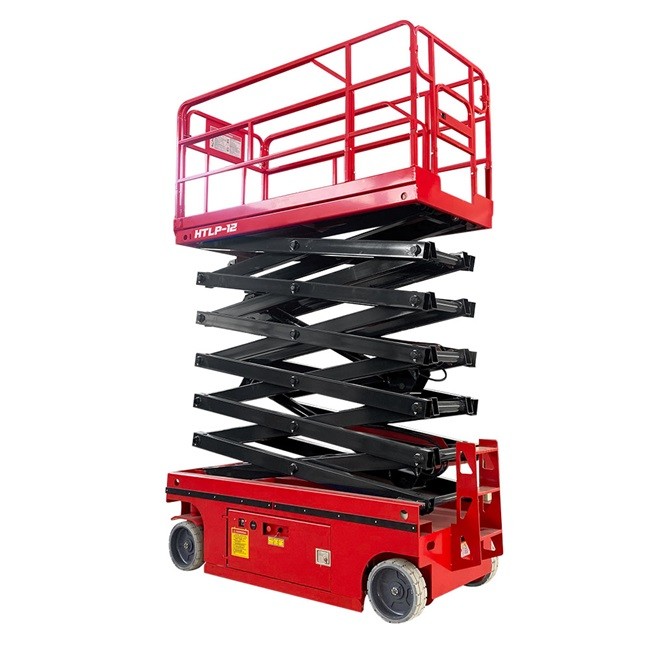

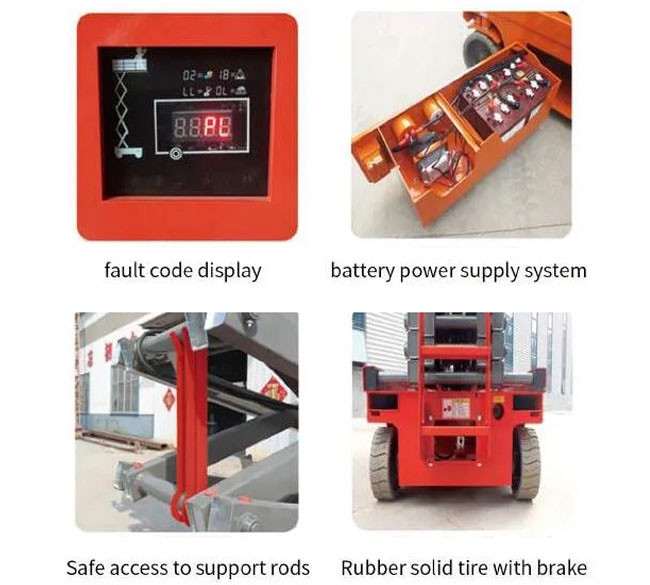

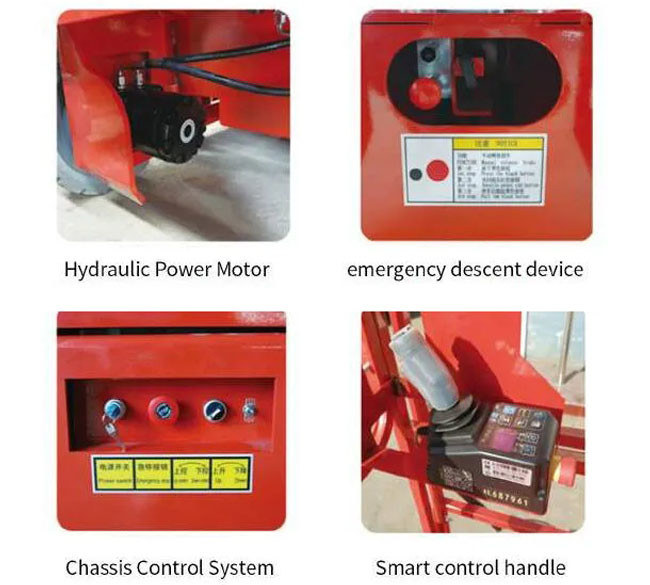

Images of Lift Work Platform

Quality 12m Scissor Lifting Work Platform Lead Acid Battery Electric Cargo Lift Platform for sale
