8m Hydraulic Mobile Lift Work Platform Self Propelled Lift Platform
Description of Lift Work Platform
Lift Working Platform flexible and convenient in movement, high-altitude operations more efficient and convenient is modern enterprise, safety production ideal high-altitude operations equipment.
Features of Lift Work Platform
1. Self-propelled scissor lift has its own walking and liting function, with the steering wheel to control the direction of running.
2. Speed can walk and a brake device, battery driven DC motor running and movements, may also choose to AC motor or diesel engine running and movements.
Technical parameters of Lift Work Platform
Model | HTLP-08 |
Sale working load | 320kg |
Safe working load of extension | 113kg |
Maximum number of | 2 |
Maximum working height | 10m |
Maximum platform height | 8m |
overall length | 2600mm |
overall width | 1170mm |
Overall height (fence not folded) | 2400mm |
Overall height (fence folding) | 1700mm |
Working platform size (length x width) | 2400mm,1170mm |
Platform extension size | 0.7m |
Minimum ground clearance (retracted) | 0.1m |
Minimum ground clearance (lifting | 0.019m |
Wheelbase | 1.89m |
Minimum turning radius (inner wheel) | 0 |
Minimum turning radius (outer wheel) | 2.20m |
Lifting motor / drive motor | 24v/4.0kw |
Machine ground speed (stowed) | 3.5km/h |
Machine travel speed (lifting state) | 0.8km/h |
Up / down speed | 80/90 sec |
Battery | 6V/230Ah |
Charger | 24v/25A |
Max Climb Capability | 25% |
Maximum allowable working angle (indoor/ outdoor) | 2° /3° |
tyre | <1.381*127 |
Weight of whole machine | 2400kg |
Adhibitions of Lift Work Platform
Maintenance works, such as cleaning, installation, decoration, inspection, repairing and maintenance in workshops, airports.

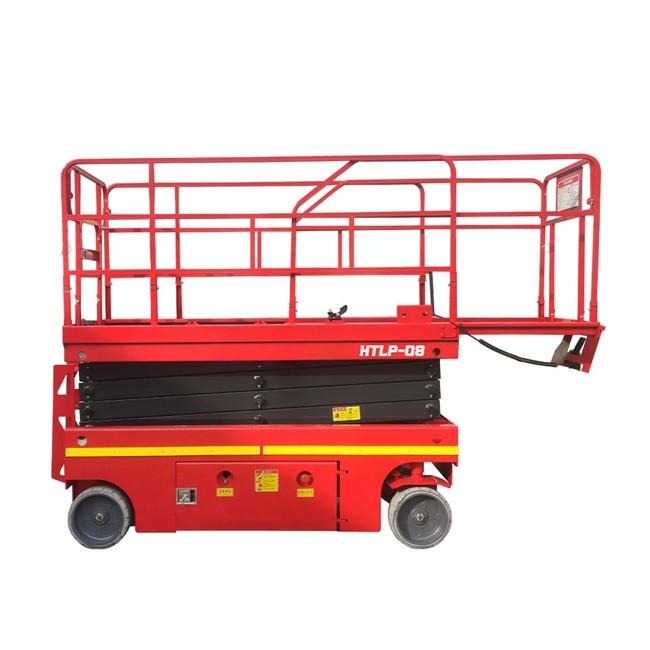

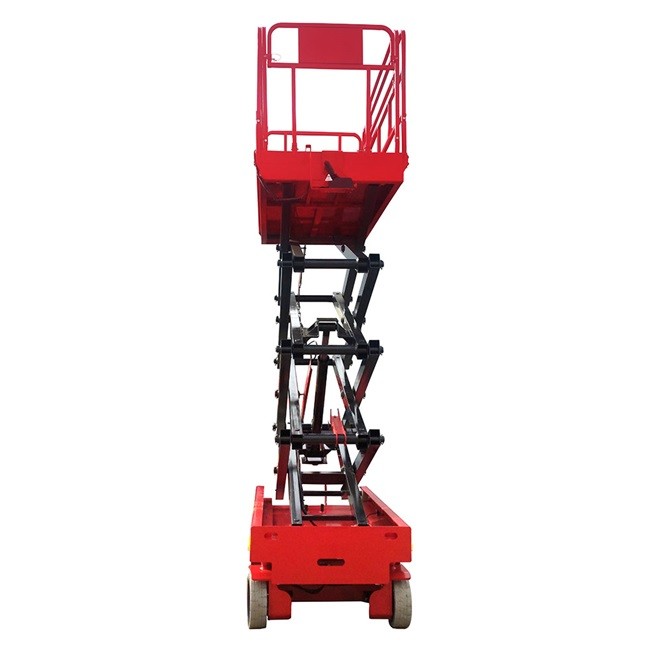

Images of Lift Work Platform
![]() |
