| Categories | Custom PCB Assembly |
|---|---|
| Brand Name: | Leadsintec |
| Model Number: | PCBA |
| Certification: | IATF16949, ISO13485, ISO9001 |
| Place of Origin: | Shenzhen |
| MOQ: | 1pcs |
| Price: | Negotiable (Depends on your gerber and bom) |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 80000pcs/month |
| Delivery Time: | 1-30days |
| Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
| Product name: | Custom PCB Assembly |
| Copper thickness: | 1/2OZ 1OZ 2OZ 3OZ |
| Base material: | FR-4 |
| Solder mask color: | White Black Yellow Green Red |
| Layers: | 1-58layers |
| Surface finishing: | HASL,HASL Lead Free,OSP,ENIG,Immersion Gold |
Aerospace Automotive High TG FR4 Pcb Fabrication Service
Product Parameter:
| Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) |
| Standard | (0.1-4mm±10%) |
| Board Thickness | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” | |
| 8layer:0.01±0.008” | |
| Bow and twist | no more than 7/1000 |
| Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Solder Mask Thickness | (0.012*0.017mm) |
| Silkscreen Color | white,black,yellow,blue… |
| Silkscreen Min size | 0.006″(0.15mm) |
| Max Size of Finish Board | 700*460mm |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB Outline | Square,circle,irregular(with jigs) |
| Package | QFN,BGA,SSOP,PLCC,LGA |
Application Fields
We produce PCBs for our customers working in frequency ranges from LED products to communication equipments and in industries as diverse as Medical devices through to automotive, aerospace and Bluetooth etc.

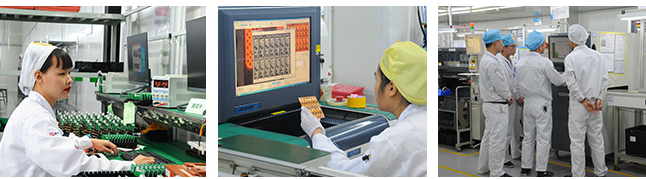

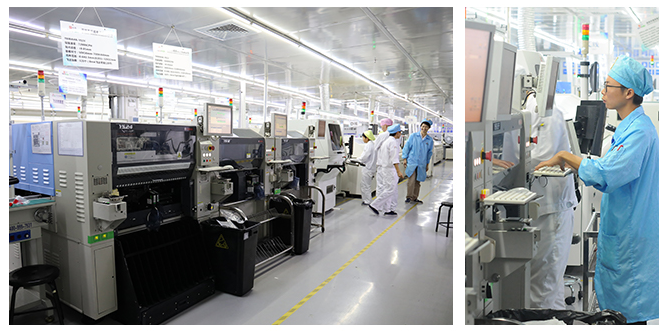

Leadsintec Technology Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 20 years of development, FASPCBA turns into a first class manufacturer of HDI PCB, with production capability 35,000 square meters. Leadsintec is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.
Leadsintec has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO 9001, IATF 16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.
|
