Brand Name: | DOPOW |
Model Number: | 4V330C-10 |
Certification: | CE ISO9001 |
Place of Origin: | Yueqing China |
MOQ: | 1 PC |
Price: | Negotiable |
Payment Terms: | L/C, D/P, T/T, Western Union |
Supply Ability: | 100000PCS/MO |
Delivery Time: | 5 working days after receiving the customers' payment |
Packaging Details: | Wooden box,Standard carton packaging |
Product Name: | 5 Way 3 Position Pneumatic Valve |
Valve Type: | 5/2 Way, Single Solenoid |
Working pressure: | 0.15-0.8MPa |
Port Size: | In=Out=3/8'' Exhaust=1/4'' |
Working Temperature: | 0℃~60℃ |
Power:: | Pneumatic |
Action:: | Direct Acting |
Material: | Aluminum |
Company Info. |
Zhejiang Dopow Technology Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |
Pneumatic solenoid valves are used to direct or stop the flow of
compressed air to their appliances. They can be used for example to
actuate a cylinder, a larger industrial valve or air tools.
Pneumatic solenoid valves are generally classified by 2 numbers,
the first digit indicates the number of ports, the second digit the
number of states. The most common types are 3/2 way, 5/2 way and
5/3 way. The valves can be single or double acting (1 or 2
solenoids). By changing the solenoid coil, different operating
voltages can be achieved.

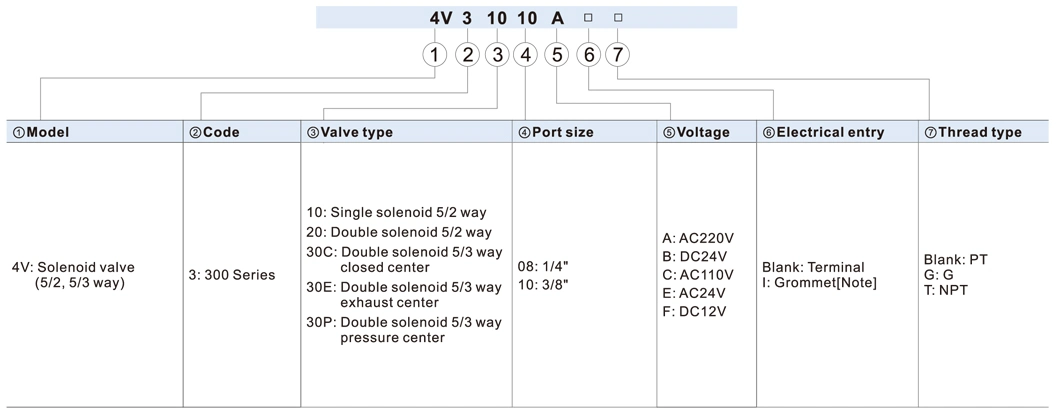

Model | 4V310-08 | 4V320-08 | 4V330C-08 4V330E-08 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 4V330E-10 4V330P-10 |
Fluid | Air (to be filtered by 40 μm filter element) | |||||
Acting | internal pilot or external pilot | |||||
Port Size | In=Out=Exhaust=1/4'' | In=Out=3/8'', Exhaust=1/4'' | ||||
Orifice Size | 4V310-10, 4V320-10: 28.0mm² (Cv=1.65) 4V330C-10: 21.3mm² (Cv=1.25) | |||||
Vlave Type | 5 way 2 position | 5 way 3 postion | 5 way 2 position | 5 way 3 position | ||
Operating Pressure | 0.15 to 0.8 MPa (21 to 114 psi) | |||||
Proof Pressure | 1.2 MPa (175 psi) | |||||
Temperature | -20 to +70ºC | |||||
Body Material | Aluminum Alloy | |||||
Max Frequency | 5 cycle/sec | 3 cycle/sec | 5 cycle/sec | 3 cycle/sec | ||
Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
![]() |
