4M Series 5 Port 2 Position Solenoid Valve 3 Way 4M210-08 0.15-0.8MPa

Categories Pneumatic Solenoid Valve
Brand Name: DOPOW
Model Number: 4M210-08
Certification: CE ISO9001
Place of Origin: Yueqing China
MOQ: 1 PC
Price: Negotiable
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100000PCS/MO
Delivery Time: 5 working days after receiving the customers' payment
Packaging Details: Wooden box,Standard carton packaging
Product Name: 5 Port 2 Position Solenoid Valve
Valve Type: 3 Way 2 Position
Working pressure: 0.15-0.8MPa
Port Size: 1/8,1/4,3/8
Working Temperature: -20 to +70
Power:: Pneumatic
Action:: Direct Acting
Material: Aluminum
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4M Series 5 Port 2 Position Solenoid Valve 3 Way 4M210-08 0.15-0.8MPa

4M series 2 position 5 port Solenoid Valve 4M210-08


Aluminum Alloy 5 way 2 position namur solenoid valve. G1/4'' port size, Class F insulation, 4.8 Watts coil power, IP65 coil protection. The solenoid valve with 5 position 2 positions with namur interface makes it suitable for attaching directly to the pneumatic actuator (both in operation and back to the spring). Standard features include manual override, indicator plug (IP65), encapsulated low voltage coil (AC 5.5 VA, DC 4.8 Watts). Available in all voltages. Comes with mounting screws.


Data of NAMUR Pneumatic Solenoid Valves:


Model No

4M110-M5

4M120-M5

4M110-06

4M120-06

4M210-06

4M220-06

4M210-08

4M220-08

4M310-08

4M320-08

4M310-10

4M320-10

FluidAir (to be filtered by 40 μm filter element)
Port SizeIn=Out=M5In=Out=1/8''In=Out=1/8''In=Out=1/4''In=Out=1/4''In=Out=3/8''
Orifice Size

5.5mm²

(Cv=0.31)

12.0mm²

(Cv=0.67)

14.0mm²

(Cv=0.78)

16.0mm²

(Cv=0.89)

25.0mm²

(Cv=1.40)

30.0mm²

(Cv=1.67)

Valve Type5 Way 2 Position
Operating Pressure0.15 to 0.8MPa (21 to 114 PSI)
Proof Pressure1.5MPa (215PSI)
Temperature (℃)-20 to +70
Body MaterialAluminum Alloy
Max. Frequency5 Cycle / Second4 Cycle / Second
Coil Voltages12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Coil Protection ClassIP65
Activating Time0.05 second and below

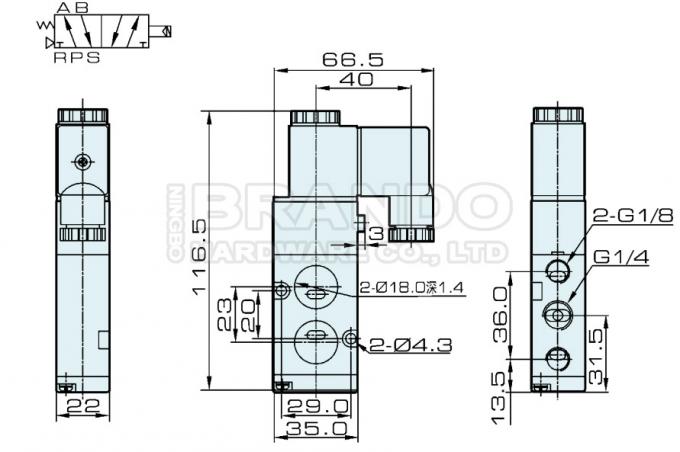

Dimension of 4M210-08 Namur Solenoid Valve:

4M210-08 Airtac Type Namur Solenoid Valve 5/2 Way G1/4'' 24V 220V 0
