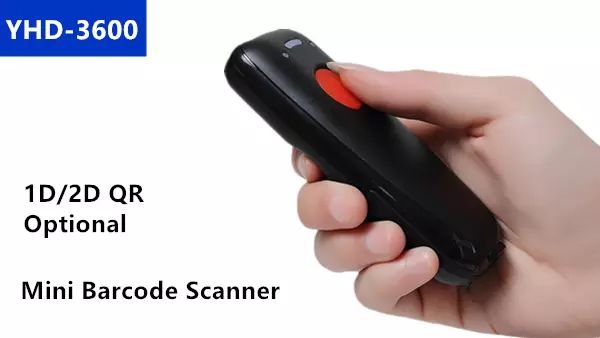

YHD Mini 1D 2D QR Bluetooth Bar Code Reader Portable Image Barcode Scanner Support Screen Reading

Categories	Qr Barcode Scanner
Brand Name:	YHD
Model Number:	YHD-3600(2D)
Certification:	FCC, ce, RoHS
Place of Origin:	China
MOQ:	1 pc
Price:	Negotiation
Payment Terms:	T/T, Paypal
Supply Ability:	10000pcs/month
Delivery Time:	negotiation
Packaging Details:	1 pc in a paperboard box
Sensor:	640*480 CMOS
Indication:	Buzzer & LED
Decoding accuracy:	≥4mil
Trigger Mode:	Button, Continuous, Auto-Induction
Transmission:	Bluetooth+2.4G+Wired
Decode Capability:	1D and 2D bar codes

Contact Now

Add to Cart

Company Info.

Guangdong Lianhe Technology Group Co., Ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

YHD Mini 1D 2D QR Bluetooth Bar Code Reader Portable Image Barcode Scanner Support Screen Reading

Product Specification: YHD-3600(2D) Bluetooth+2.4G+Wired Barcode Scanner
Decoder parameters
Working current: 3.5 V ± 10%x100mA	Light source: 617LED
Sensor: 640*480 CMOS	lumination: 6500K LEDs
CPU: ARM 32-bit Cortex	Decoding speed: 500/sec
Depth of Filed: 30-600mm	Indication: Buzzer & LED
Decoding accuracy: ≥4mil
Trigger Mode: Button, Continuous, Auto-Induction
Printing Contract: ≥25%
Scanning angle: Angle of rotation±30°, inclination± 60°, declination ± 60°
Anti-interference: 0-100000Lux Max
Decode Capability: 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5(IATA), Coda bar(NW-7), MSI Plessey, ISBM,ISSN,China post etc. 2D: QR Code, Data Matrix, PDF417, etc.
Button life: 10000,000 times	LED life: 100000 hours
Drop test: 1.8m	Transmission: Bluetooth+2.4G+Wired
Working temperature: -20℃ to 50℃	Relative humidity: 5%-95%
Wireless Parameters
Wireless type: Bluetooth/Wired	Transmission distance: 50m
Battery: 3.7V-1200mAh	Charging power: 5V-400mA
Working mode: Instant upload mode, Storage mode, Not lost mode
Storage: 4MB≈40000 EAN13 barcodes
Working time: Full load≈15hours, Normal use ≈3 to 8days
