Drill Pipe Hydraulic Sucker Rod Power Tong API 7K 2-7/8"-8"

Categories Wellhead Tools
Brand Name: FORUS
Model Number: Drilling Tools
Certification: API
Place of Origin: China
MOQ: 1 Set
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Sets Per Month
Delivery Time: 30 days
Packaging Details: Wooden Box
Product Name: Sucker Rod Power Tong
Size: 2-7/8"-8"
Industry: Oil Drilling
Warranty: 1 Year
Model: ZQ
COC: Provide
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

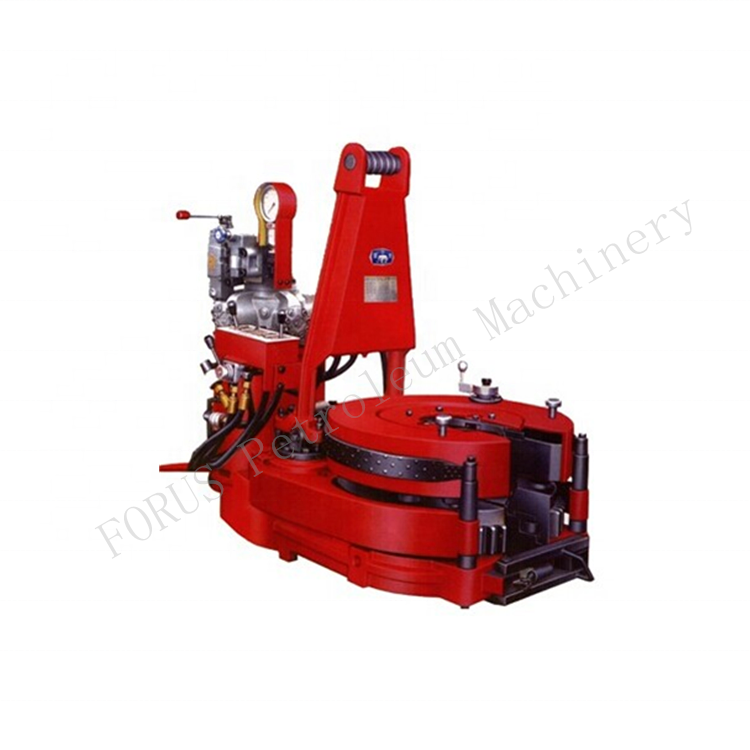

Drill Pipe Hydraulic Sucker Rod Power Tong API 7K 2-7/8"-8"

Wellhead Tools Drill Pipe Hydraulic Power Tong API7K Standard


Wellhead Tools Applications


Drill pipe power tongs are suitable for oil and mine drilling, which is safe and labor-saving and improves work efficiency.


Power tongs have the following features:


1. Adopt pneumatic power to move and drive backup pliers


2. Integral mechanism composed of twist pliers and torque pliers


3. Shifting is allowed during operation


4. The old and new drill pipe joints can be clamped reliably


5. The maximum torque and speed can be run in both directions


ModelZQ127/25YZQ162-50ZQ203-100ZQ203-100-IIZQ203-125
Pipe Size Range of Master TongΦ73-140Φ85-162Φ101-203Φ114-203Φ101-203
27/8 - 51/223/8 - 531/2 - 827/8 - 831/2 - 8
High Gear Rated Torque3500N.m9500N.m9500N.m9500N.m10000N.m
2581ft-lbs7007ft-lbs7007ft-lbs7007ft-lbs7370ft-lbs
Low Gear Rated Torque25000N.m50000N.m100000N.m100000N.m145000N.m
18349ft-lbs36880ft-lbs73756ft-lbs73750ft-lbs106940ft-lbs
High Gear Rated Speed≤65r/min60r/min40r/min40r/min33r/min
Low Gear Rated Speed≤10r/min4.1r/min2.7r/min2.7r/min2.2r/min
Rated Operation Pressure16 MPa14 MPa16 MPa16.6 MPa18 MPa
2320 psi2030 psi2320 psi2400 psi2610psi
Max. Flow120 L/min120 L/min114 L/min114 L/min120 L/min
32 gpm31.7 gpm30 gpm30 gpm32gpm
Pneumatic Operation Pressure0.5~0.9MPa0.5~0.9MPa0.5~0.9MPa0.6~1.0MPa
72.5~130.5psi72.5~130.5psi72.5~130.5psi72.5~130.5psi
Dimension :L x W x H1250x 780 x 10001570 x 800 x 11901700 x 1000 x 14001760 x 1000 x 16301750 x 1060x 1680
Weight(including Backup Tong)650kg1500kg2400kg2500kg2500kg
1433lbs3310lbs5291lbs5510lbs5512lbs
