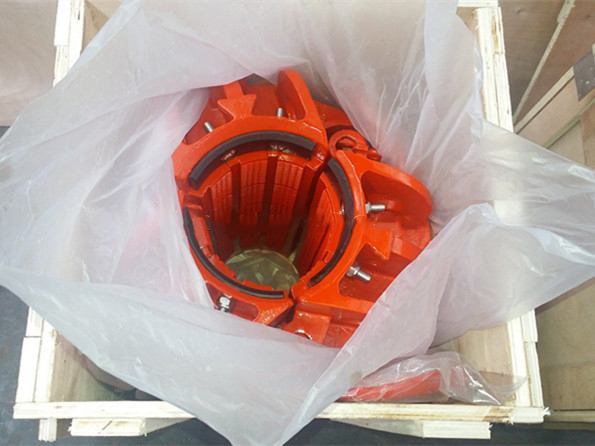

| Packaging Details: | Wooden Box |
| Product Name: | CMS Casing Slips |
| Product Type: | Drilling Wellhead Tools |
| Material: | Alloy Steel |
| Size: | 4-1/2" To 30" |
| Company Info. |
| Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

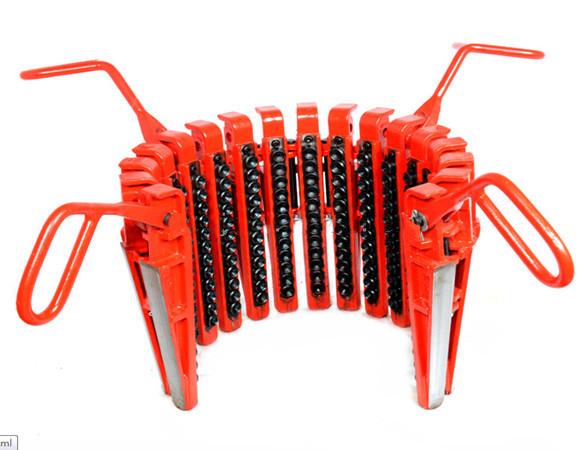

Wellhead Tools CMS Casing Slip Size 4-1/2" To 30" API Standard
Product Description
The casing slips are designed and manufactured in API Spec 7K and SY5049 Slips for Well Drilling. It is manufactured in a structure of multi -
segment pieces with firm structure, light weight and large holding range, which is easy to fit the changing of the external diameter of the casing pipes
due to wear and tear.
Technical Parameter
Casing OD | in | 4.1/2-5 | 5.1/2-6 | 6.5/8 | 7 | 7.5/8 | 8.5/8 | 9.5/8* | 10.3/4* | |
| mm | 114.3- 127 | 139.7- 152.4 | 168.3 | 177.8 | 193.7 | 219.1 | 244.5 | 273.1 | ||
Circular Buttons P/N | 2628-108 | 2620-108 | 2628-144 | 2619-144 | 2630-144 | 2630-156 | 2630-168 | 2630-180 | ||
Total number of segments | 9 | 12 | 13 | 14 | 15 | |||||
| Weight lb (kg) | 168 (76) | 157 (71) | 196 (89) | 184 (83.5) | 166 (75) | 181 (82) | 192 (87) | 209 (95) | ||
Top Bore Size of the Casing Bushing(in | 14.3/8 | 16.1/4 | ||||||||
| Max. Load tons(kN) | 250(2250) | |||||||||
Casing OD | in | 11.3/4* | 13.3/8* | 16* | 18.5/8* | 20* | 24* | 26* | 30* |
| mm | 298.5 | 339.7 | 406.4 | 473.1 | 508 | 609.6 | 660.4 | 762 | |
Circular Buttons P/N | 2627-204 | 2630-216 | 2631-252 | 2626-300 | 2631-312 | 2631-360 | 2631-396 | 2631-444 | |
Total number of segments | 17 | 18 | 21 | 25 | 26 | 30 | 33 | 37 | |
| Weight lb (kg) | 260 (118) | 258 (117) | 308 (140) | 367 (166.5) | 383 (174) | 443 (201) | 486 (221) | 546 (247.5) | |
Top Bore Size of the Casing Bushing(in) | 19 | 21.3/4 | 26 | 30 | 32 | 36 | |||
| Max. Load tons(kN) | 250(2250) | 125(1125) | |||||||
Supply Type
Our products including:
Power Tong : XQ140/12A , XQ114/6B, XQ89/13C
CD Elevator: CD-150, CD-200, CD-250, CD-350, CD-500, CD-750
CDZ Drilling Pipe Elevator: CDZ-150, CDZ-250, CDZ-350, CDZ-500
DD Center latch Elevator: DD-150, DD-250, DD-350
DDZ Drill Pipe Elevator:DDZ-100, DDZ150, DDZ250, DDZ350, DDZ350TD, DDZ500, DDZ500TD, DDZ750. Size from 2-2/8” to 6-5/8”.
TA Elevator: TA-35, TA-65, TA-100, TA-150. Size:2-7/8” to 11-1/4”.
Company Introduce
FORUS company is engaged exporting oil drilling machine and equipment. Our goal is to meet customers’ different requirements, supply high
quality products with best price.
We has a professional team to provide efficiently service, quickly action. Integrity is the cornerstone of our development. Our equipments have
exported many countries, including Kuwait, UAE., Egypt, Indonesia, Russia, USA, Kazakhstan etc., and we are widely praised by our clients.
|
