Small Steel Bar Location / Thickness Concrete Cover Meter Integrated Rebar Location Tester

Small Steel Bar Location / Concrete Cover Thickness Integrated Rebar Location Tester​

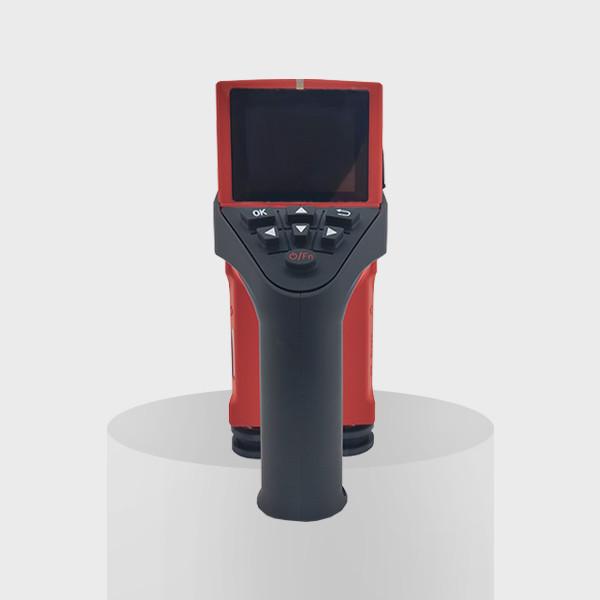

SY-R81S integrated Rebar location tester

Application: The Integrated Rebar Location Tester​ is used for the rebar location detection, rebar distribution, concrete coating thickness and the rebar diameter.

Standard:
JGJ/T 152-2008 Technical specification for test of reinforcing steel bar in concrete
GB 50204-2015 Code for quality acceptance of concrete structure construction
GB/T 50344 -2004 Technical standard for inspection of building structure

Parameters:

Features:
1. Integrated design, the operation will be more easily
2. Small size, can be suitable for any position
3. The detected position will be under the instrument center position, so the testing will be more stable and easy
4. The removable battery can make testing continue without no stop
5. It adopts Multi-coil structure to confirm the rebar position more correctly
6. It can test the steel bar grid and density with high precision
7. With the horizontal and vertical laser light, can fix the scanning direction
8. It has image scanning method to display the rebar directly with photo, grid scanning method and section scanning method to show the distribution.
9. 2.8inch screen can show the tested data and image clearly
10. The ARM high speed Acquisition System can confirm the testing more faster and stable
11. Powerful Windows data process and analysis software can display analysis result by diagram. Test data can be exported to word or Excel easily.
