High Precision NDT Testing Equipment Concrete Rebar Locator 6mm - 90mm

SY-R51+ Rebar Location Tester For Testing Steel Bar Location And Distribution And Concrete Coating Thickness

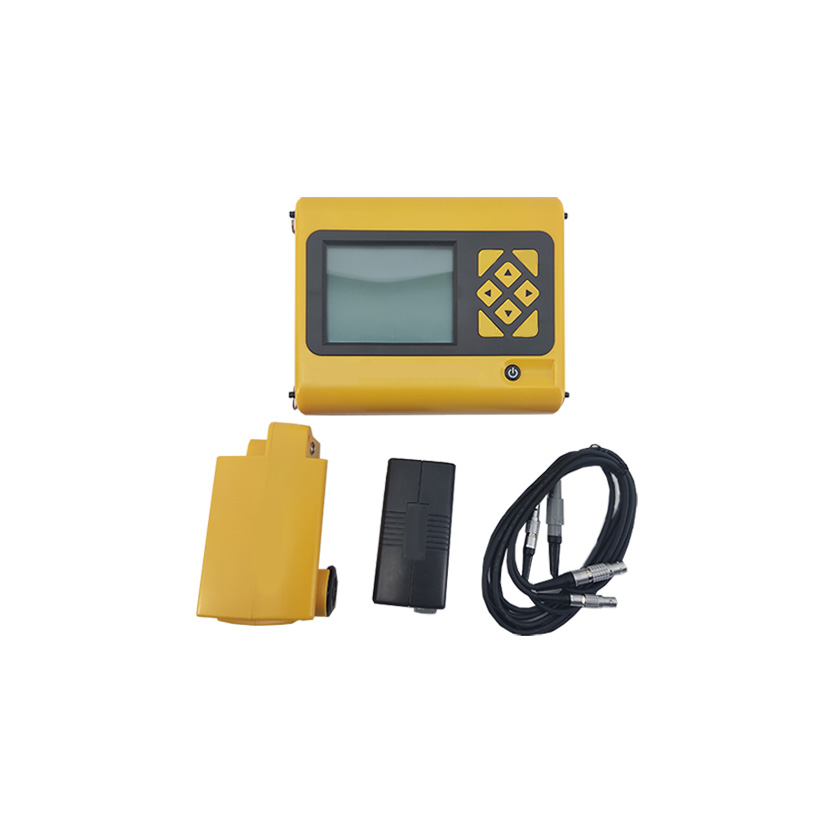

SY-R51+ Rebar location tester for rebar detection

Application: Used for detecting the rebar location, rebar distribution, concrete coating thickness and the rebar diameter.

Standard:

JGJ/T 152-2008 Technical specification for test of reinforcing steel bar in concrete

Parameters:

Features:

1. Longer service life with the imported Lemo Connector Clip from Swiss

2. Good quality of the imported signal cable, flexible and substance.

3. High precision and stability: The instrument can locate the steel-bar accurately and quickly.

4. Longer service life of the sensor with high quality abrasion resistance layer

5. Single sensor: no need to change sensor in test, just switch it between high and low test range, so it can assure the precision of test data and the test depth.

6. Display test information on real-time.

7. Grid and section scan mode: it can display steel bar distribution and without concrete boundary limited.

8. Three-wheel steel-bar scan system can assure scan path along line and the precision of test data.

9. Powerful Windows data process and analysis software can display analysis result by diagram. Test data can be exported to word or Excel easily.

Beijing Samyon Instruments Co., Ltd is specializing on designing, developing and selling concrete Pile Testing Instruments and Optical fiber bragg Grating(FBG. )

1.Concrete Pile Testing Instruments includes: High strain dynamic pile tester, Pile integrity tester, Static pile loading tester, Ultrasonic crosshole pile tester, Ultrasonic drillhole monitor, Nonmetal ultrasonic detector and NDT (Non Destructive Testing) equipments, construction instruments, and laboratory instruments, such as, Concrete resistivity tester, Concrete migration tester, Concrete penetration tester, Crack width/depth meter, Rebar location system, Test hammer, Strength tester, Concrete defect tester, Corrosion tester, Colorimeter, Hardness tester, Ultrasonic flaw detector, Concrete testing equipment, Soil testing equipment, Cement testing equipment, Asphalt testing equipment, and so on . The company takes the science and technology as the guide, with strict management and strong research and development team.

    High Strain Dynamic Pile Tester (Also named PDA by PDI company. )  ;  Low Dynamic Pile Tester (PIT or PET for short); Untrasoic Crosshole Pile Tester for 2, 3 ,4 channels.; Drillhole Monitor  (Also named Koden from Japan company. )

High Strain Dynamic Pile Tester projects at field. If clients need, we also can do the testing compare with PDA from PDI company. We already have done testing at different countries. We got very good feedback from our professional pile testing clients and relative company.

Low Strain Dynamic Pile Tester at field with our software;  Static Load Pile testing at field with our software.

Drill hole monitor testing at field with 100meter depth, with automatic stop function to save untrosonic sensor drop in wells making lost for inspection company.  We also can supply drillhole monitor with 150m depth.

2. Optical Fiber Bragg Grating for temperature and Strain gauge

As FBG strain gauge and temperature sensor are popular in construction monitor system, we also concentrate in this aspects for many years. DTS. DVS system.

Our Lab for optical fiber bragg grating

Oven Humidity and temperature testing.

SAMYON will follow the operation principle to pay more attention to the needs of customers and provide the high quality, competitive products and convenient services to the market with outstanding research and development ability and the exquisite technology.
With more than 10years experiments, SAMYON commits us supply professional line instruments and service to our clients refers to Building, Bridge, Highway, Channel, Airport and so on. At present, we have many international customers from European countries, UK, USA, Thailand, India, Indonesia, South Africa, Pakistan, Singapore, Austrilia, Vietnam, Russia, Brazil, Chile, and so on.
