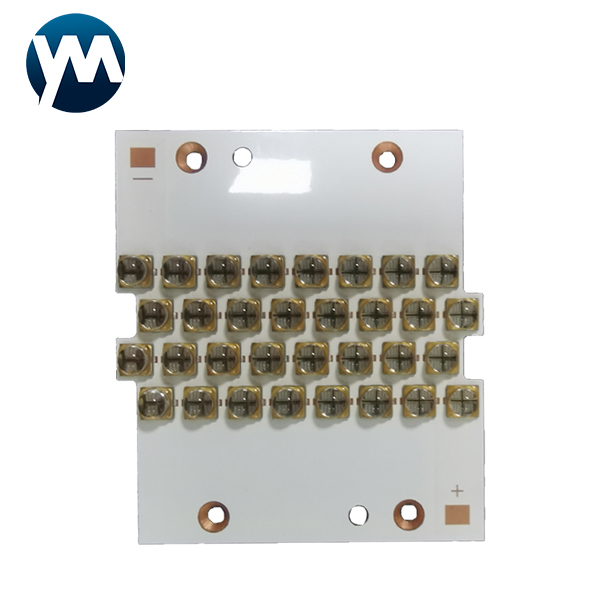

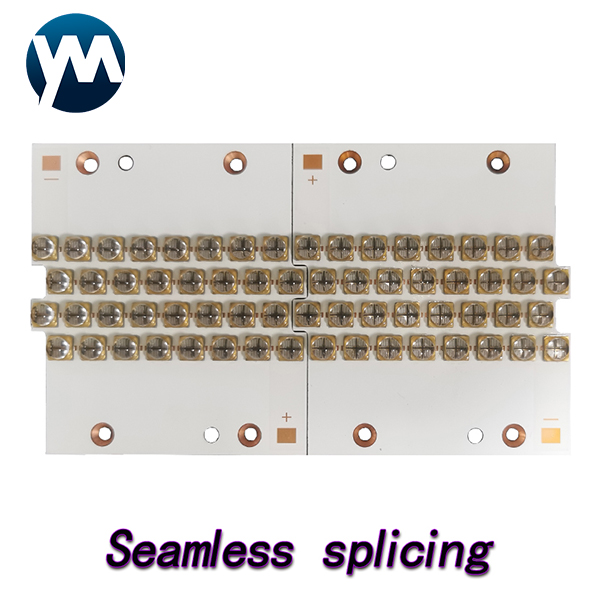

UV LED Module 320W high power uv led module light uv led 365nm,385nm,395nm,405nm

Categories UV LED Module
Brand Name: YM
Model Number: UV LED Module 7282
Certification: High-tech Enterprise Certificate
Place of Origin: CHINA
MOQ: Negotiate
Price: Negotiate
Payment Terms: T/T
Supply Ability: 10000
Delivery Time: 10-15 work days
Packaging Details: Carton
Product Name:: UV LED Module
Module Size: 72.5mm*82mm*2.0mm
Luminous Size: 70.5mm*32.5mm
Voltage: 52-60V
Current: 4-6A
LED Chips: 6565/6868 Optional(LG/Epileds/ Seoul)
Encapsulation process: 2.0mm High temperature quartz lens package
Warranty: 2 Years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

UV LED Module 320W high power uv led module light uv led 365nm,385nm,395nm,405nm

UV LED Module 320W high power uv led module light uv led 365nm,385nm,395nm,405nm

UV LED Module Product Description
The product can be applied with either Water-cooling or wind-cooling method.
Other curing size and voltage can be designed according your requirment, inluding mix
wavelenth special wavelenth and curing size.
High efficiency and low consumption.
Apply in various printing industries, painting, and glue.

FAQ

Q1. Are you a factory?
A. Yes! We are factory in Shenzhen. We have been producing UV LED products for seven years.

Q2. Can we customize the product?
A. Yes! We can produce according to your requirements or technical drawings.

Q3. What is your main products?
A. UV LED Lamp Bead; UV LED Module; UV LED Single Light; uv curing lamp.


Item

High Power UV LED Module

Power

320w

Color

UV

Diode Brand

DC, LG

Diode type

6565,6868 smd type

Lens Material of Diode

Silica gel or quartz

View Angle of the Lens

60,90,120 degree

Module size

72.5mm*82mm*2.0mm
Luminous Size70.5mm*32.5mm

Wavelength

365nm,385nm,395nm,405nm

Voltage

52-60V

Current

4-6A

Chip Material

LG,Seoul,Epileds

Encapsulation process

2.0mm High temperature quartz lens package

Lifespan (hours)

20000-30000

Warranty

2 years

ApplicationApply in various printing industries, painting, and glue.

Place of Origin

Guangdong, China

Matters needing attention
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.
4) In order to prolong the lifetime of ultraviolet light emitting diodes, it is recommended to use a stable
constant current driving power supply or IC instead of a constant voltage driving power supply or IC.
Thank you for your attention
