UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp

Categories	UV LED Module
Brand Name:	YM
Model Number:	UV LED Module 6079
Certification:	High-tech Enterprise Certificate
Place of Origin:	CHINA
MOQ:	Negotiate
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	10000
Delivery Time:	10-15 work days
Packaging Details:	Carton
Product Name::	UV LED Module
Power:	560W

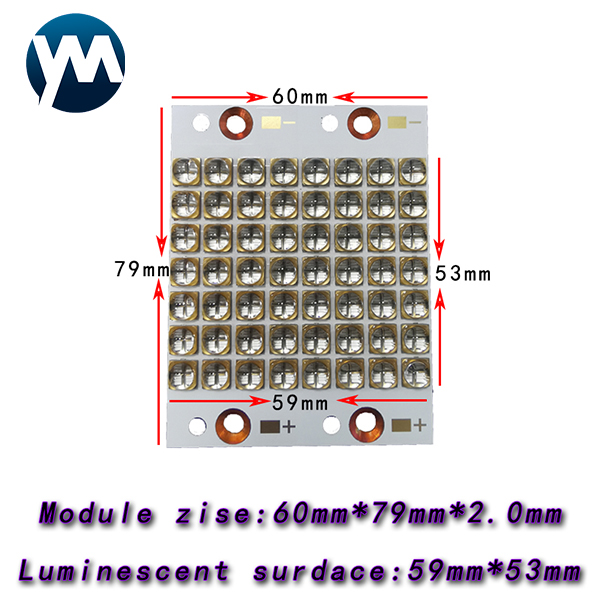

Module Size:	60mm79mm2.0mm
Luminous Size:	59mm*53mm
Voltage:	45-53V *2
Current:	4-6A *2
LED Chips:	Optional(LG/Epileds/ Seoul)
Encapsulation process:	2.0mm High temperature quartz lens package
View Angle of the Lens:	60,90,120 degree
Warranty:	2 Years

Contact Now

Add to Cart

Company Info.

shenzhen yuanming co., ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

UV LED Module 560W uv led chip 395nm foruvink curing uv ink curing lamp

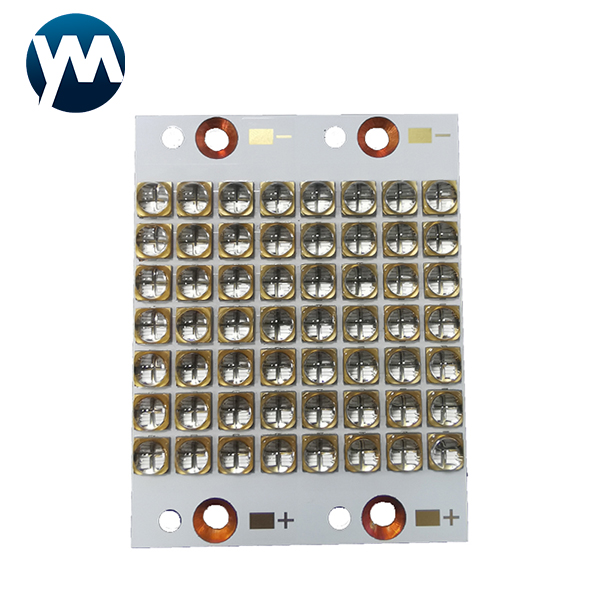

UV LED Module Product Description

The product can be applied with either Water-cooling or wind-cooling method.

Various other treating dimension as well as current could be created according

your requirment, inluding mix

High efficiency and low consumption.Apply in various printing industries, painting, and glue.

FAQ

Q1. Are you a factory?
A. Yes! We are factory in Shenzhen. We have been producing UV LED products for seven years.

Q2. Can we customize the product?
A. Yes! We can produce according to your requirements or technical drawings.

Q3. What is your main products?
A. UV LED Lamp Bead; UV LED Module; UV LED Single Light; uv curing lamp.

Q4. What is your usual payment terms for orders?
A. T/T. Others payment terms also is ok.

Item	High Power UV LED Module
Power	560w
Color	UV
Diode Brand	DC, LG

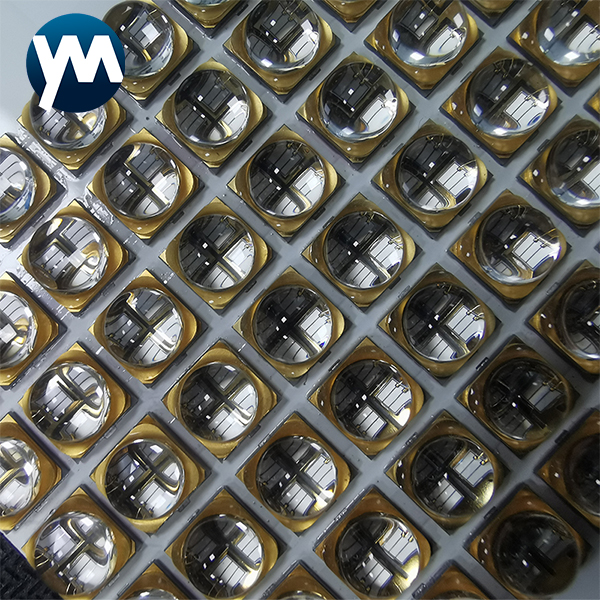

Diode type	6565,6868 smd type
Lens Material of Diode	Silica gel or quartz
View Angle of the Lens	60,90,120 degree
Module size	60mm79mm2.0mm
Luminous Size	59mm*53mm
Wavelength	365nm,385nm,395nm,405nm
Voltage	45-53V*2
Current	4-6A*2
Chip Material	LG,Seoul,Epileds
Encapsulation process	2.0mm High temperature quartz lens package
Lifespan (hours)	20000-30000
Warranty	2 years
Application	Apply in various printing industries, painting, and glue.
Place of Origin	Guangdong, China

Matters needing attention

Attention should be paid to welding high-power UV LED:

1) The welding time should not exceed 3S;

2) Welding temperature should be less than 260 degrees Celsius.

3) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.

4) During the whole process of use, all people who are in direct contact with UVLED should take

measures to prevent and eliminate static electricity, and do not touch the UV light emitting diode

directly with their hands.

5) When welding, attention should be paid to the welding time and temperature, and the positive

and negative polarities should be distinguished.

6) Electrical parameters such as current and voltage should not exceed the rated values.

Thank you for your attention
