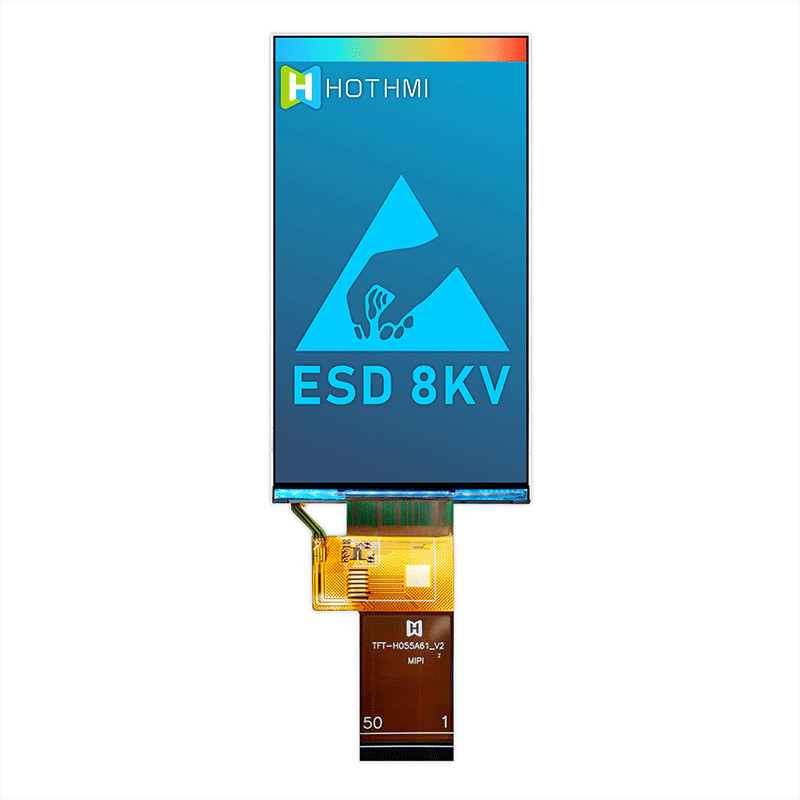

MIPI 720x1280 IPS TFT LCD Display 5.5 Inch FT6336G/TFT-H055A61HDINVKN40

Categories TFT LCD Display
Brand Name: HOTHMI
Model Number: TFT-H055A61HDINVKN40
Place of Origin: dongguan,China
MOQ: 2
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Delivery Time: 25 days

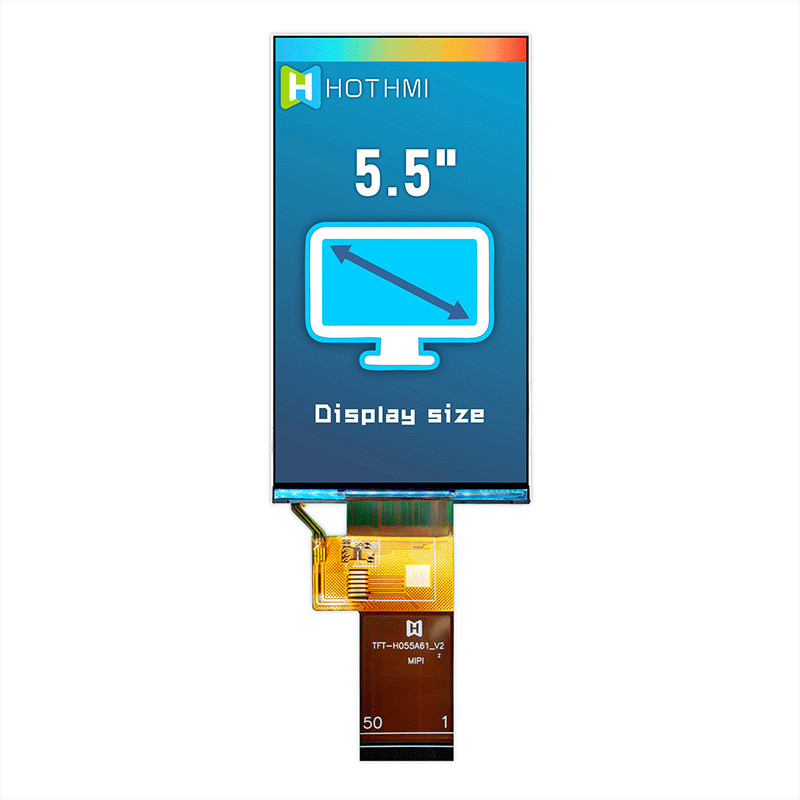

Display Size: 5.5 inch
Active Area: 48.96(H)* 73.44(V) mm
Viewing Direction: 12 O'Clock (U60/D60/L70/R70)
Driver IC: ST7796
Driver Condition: IOVCC=1.8V,VCI=2.8V or 3.3V(Typ)
Touch Panel: Without TP
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

MIPI 720x1280 IPS TFT LCD Display 5.5 Inch FT6336G/TFT-H055A61HDINVKN40

5.5 Inch 720x1280 High Brightness MIPI IPS TFT Display FT6336G/TFT-H055A61HDINVKN40


General Feature


ItemStandard ValueUnit
Display Size5.5Inch

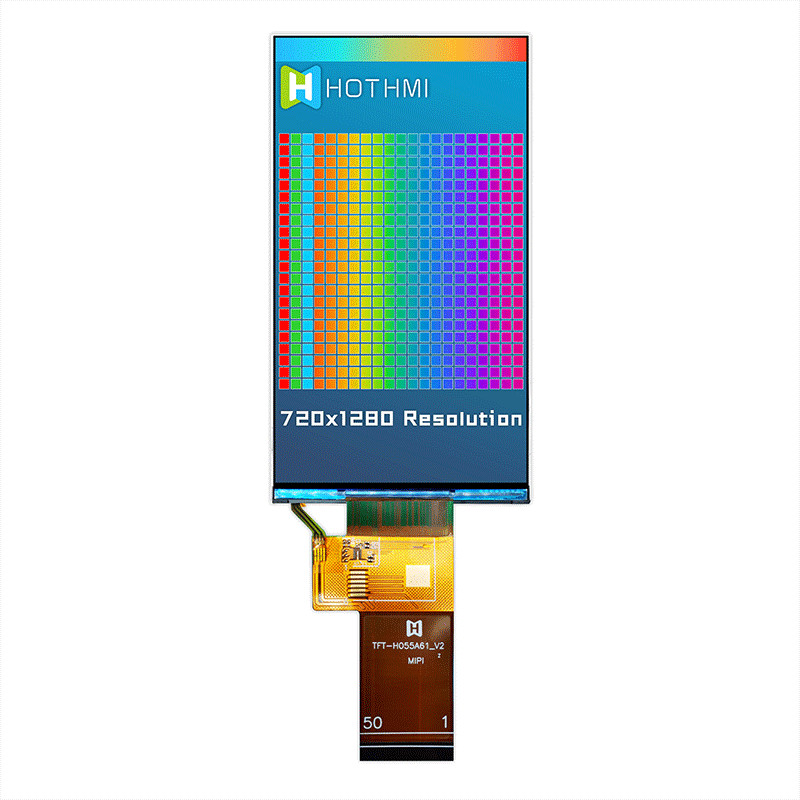

Number of Pixels720(H)*3(RGB)* 1280(V)dots
Active Area48.96(H)* 73.44(V)mm
Outline Dimension54.50(H) * 83.00(V) * 2.30(D)(V0-0)mm
Viewing Direction12 O'Clock (U60/D60/L70/R70)-
InterfaceSPI 3-Line or 4-Line Serial interface-
Driver ICST7796-
Driver ConditionIOVCC=1.8V,VCI=2.8V or 3.3V(Typ)V
BacklightWhite LED/6 PCS/1 PCS serial 6 ways parallel-
Touch PanelWithout TP √With RTPWith CTP-
TFT Operation AT-20 ~ +70
TFT Storage AT-30 ~ +80

1GND26TP-INT
2D0N27NC
3D0P28IM0
4GND29NC
5D1N30IM1
6D1P31NC
7GND32IM2
8DCKN33NC
9DCKP34EXTNB
10GND35NC
11D2N36EXTP
12D2P37NC
13GND38VSN
14D3N39NC
15D3P40VSP
16GND41NC
17NC42NC
18VCI43LEDK
19VCI44LEDKC
20TP-VDD45LEDK
21NC46NC
22RESX47NC
23TP-RST48LEDA
24TP-SDA49LEDA
25TP-SCL50LEDA

DESCRIPTION

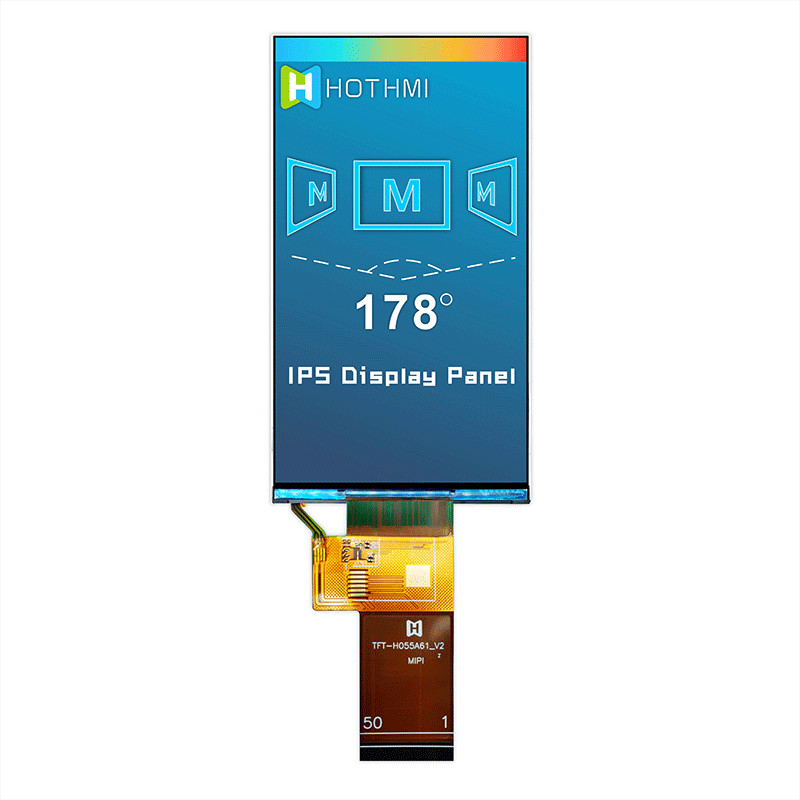

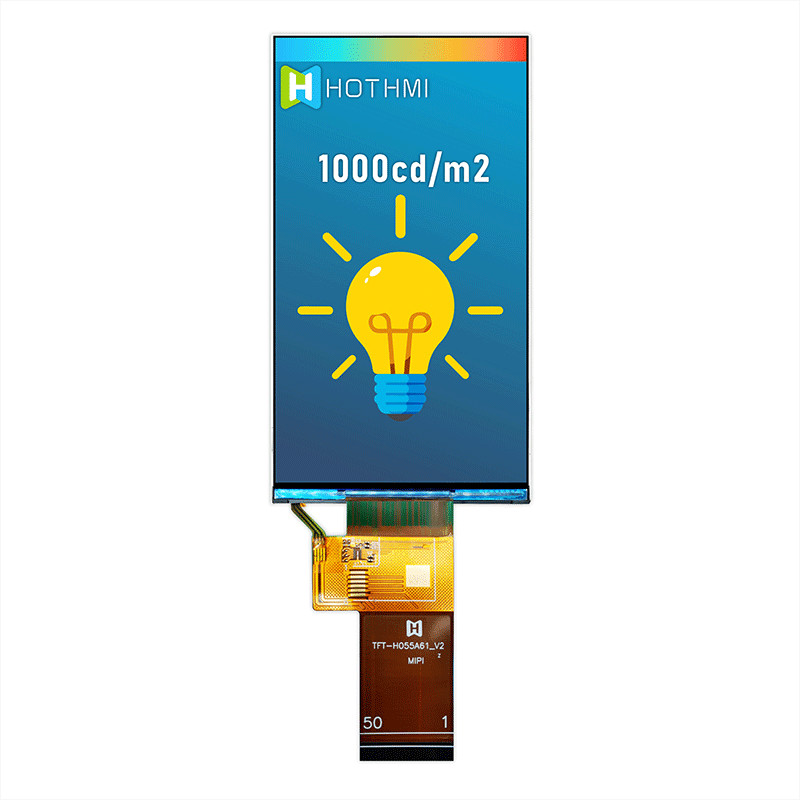

H055A61HDINVKN40 is a 5.5 inch MIPI DSI interface High Brightness 1024 x 600 IPS TFT-LCD module. This TFT-LCD is featured with IPS technology which is having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical) and high brightness of 1000 nits (typical value).

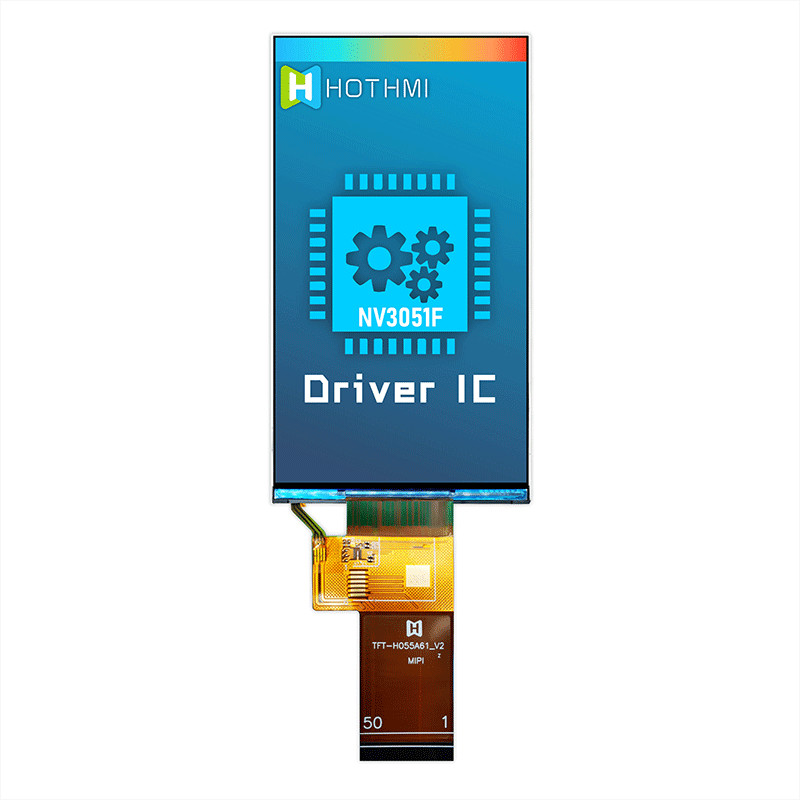

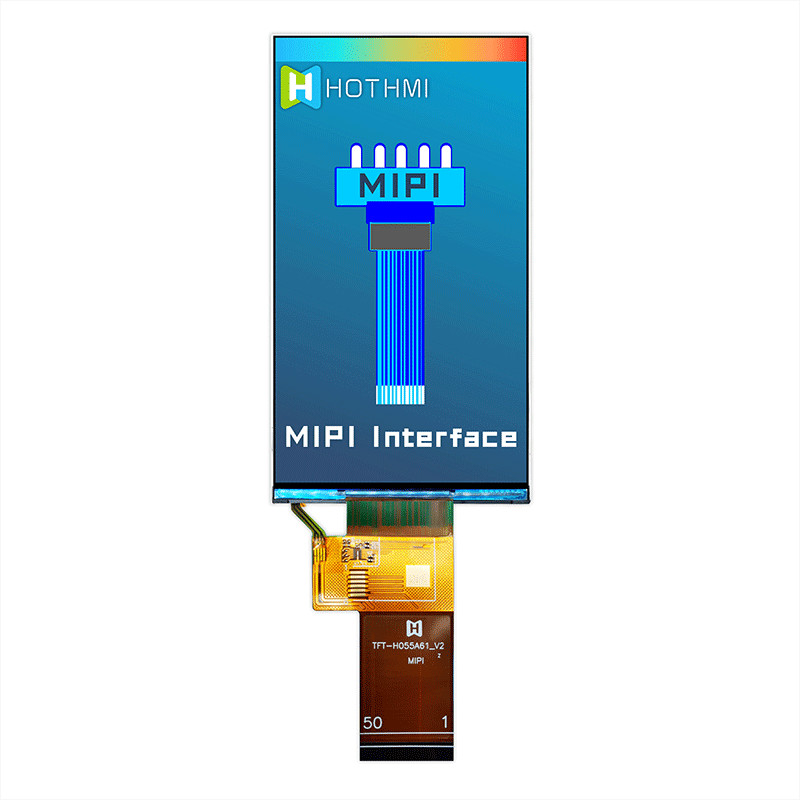

H055A61HDINVKN40 module is built-in with NV3051F driver IC; it supports 4-Lanes MIPI interface (Mobile Industry Processor Interface) DSI (Display Serial Interface). The MIPI DSI interface becomes more popular because of the characteristics of High Speed Data Transmission and High Speed Clock Transmission. This TFT display module featured with anit-glare surface panel; aspect ratio 16:9, it can be operated at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


Search keyword: tft 5.5, tft 5.5", 5.5 tft lcd, 5.5" tft lcd, 5.5 inch tft lcd, tft lcd 5.5, 5.5 tft display, 5.5" tft display, 5.5 inch tft display, tft display 5.5, tft display 5.5"


TFT-H055A61HDINVKN40_V2-0.pdf
