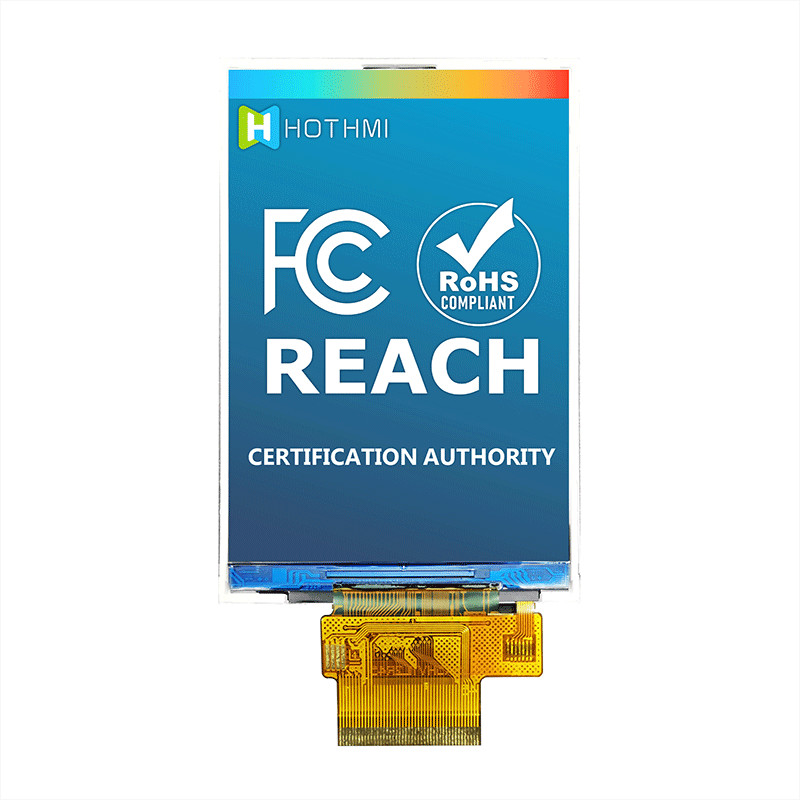

Multi Scene LCD Color TFT Module Vertical For Instrumentation Panel TFT-H035A5HVTST3N45

Categories TFT LCD Display
Brand Name: HOTHMI
Model Number: TFT-H035A5HVTST3N45
Place of Origin: dongguan,China
MOQ: 2
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 99999
Delivery Time: 25 days
Product Type: TFT Vertical Screen

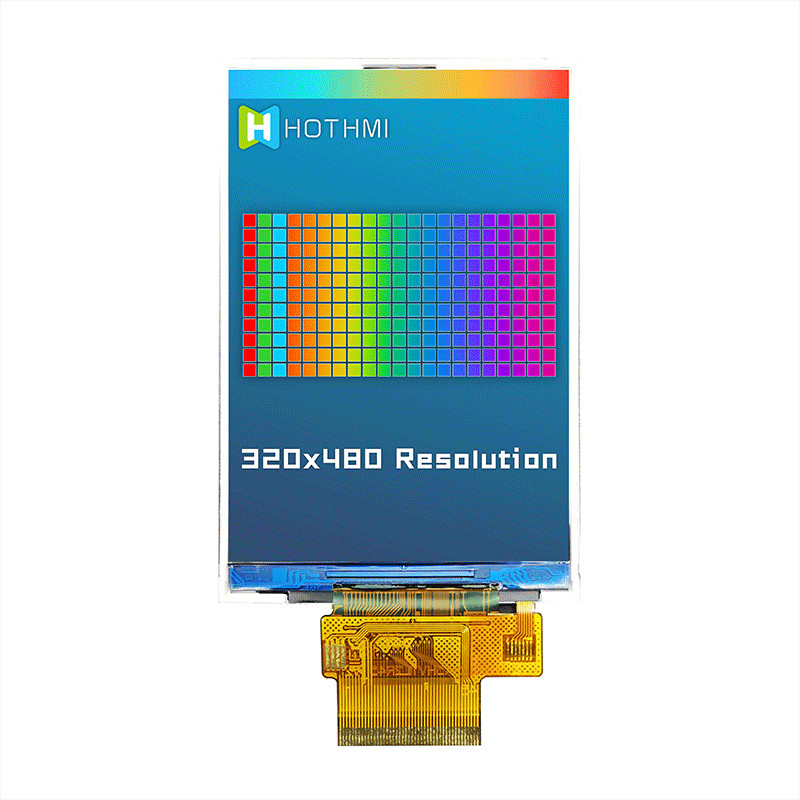

Display Content: 320x480
Dimensions (mm): 55.66x85.04x3.55
Viewport Window Size: 3.5"
Effective Size (mm): 48.96x73.44
Product Application: Instrumentation Panel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Multi Scene LCD Color TFT Module Vertical For Instrumentation Panel TFT-H035A5HVTST3N45

3.5 inch 320480 Color TFT LCD Display Module/320x240 dots/TFT-H035A5HVTST3N45


Product parameters

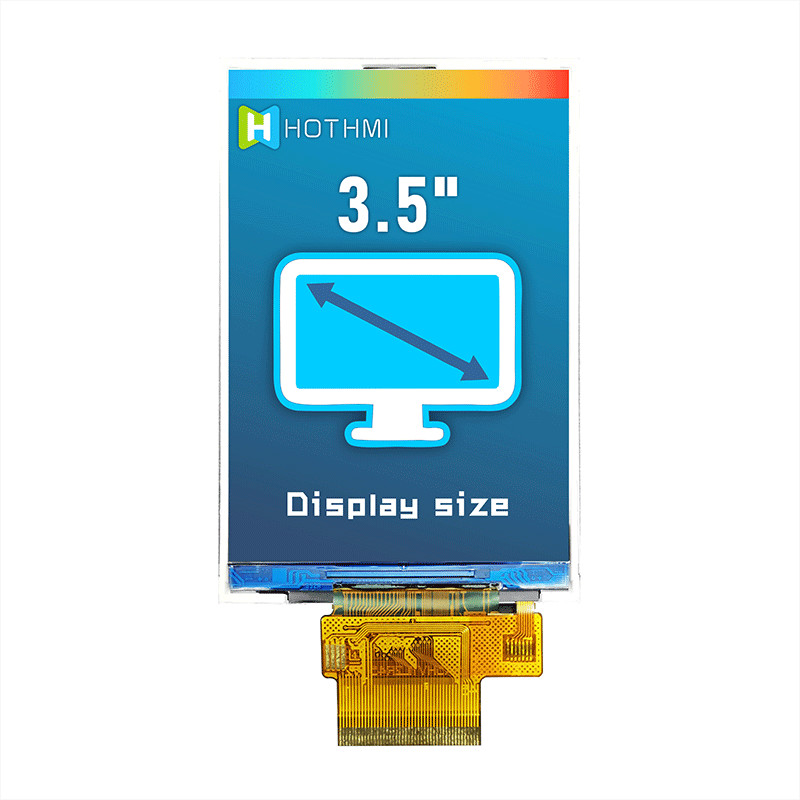

Display Size - 3.5"
Perspective - 12 o'clock
Backlight brightness - 350cd/m2
Connection method PIN number - 45PIN

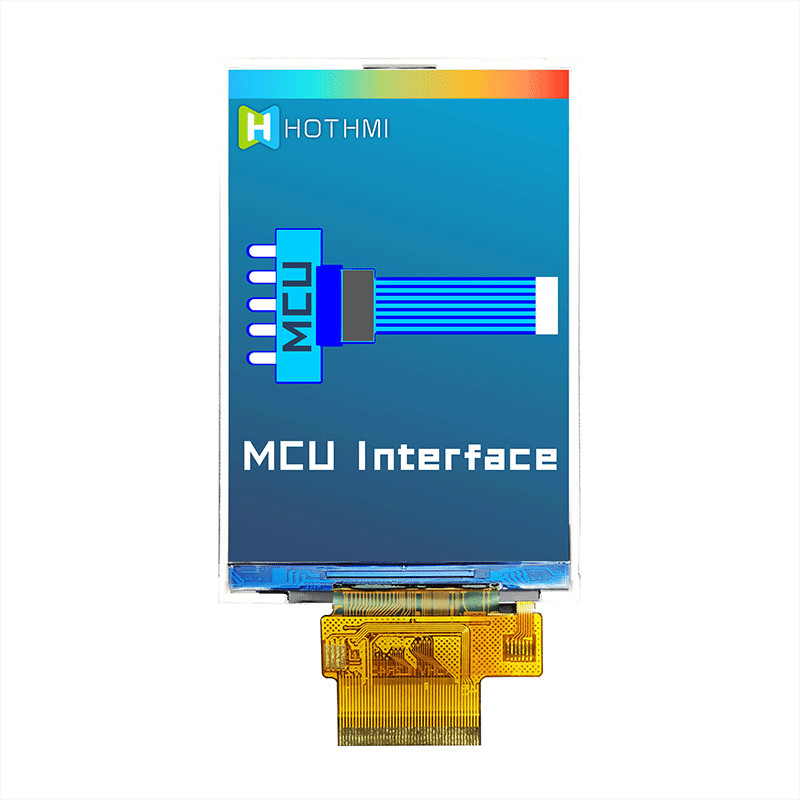

Interface mode - MCU8/16 parallel port
Special Instructions - Optional with Resistive Touch

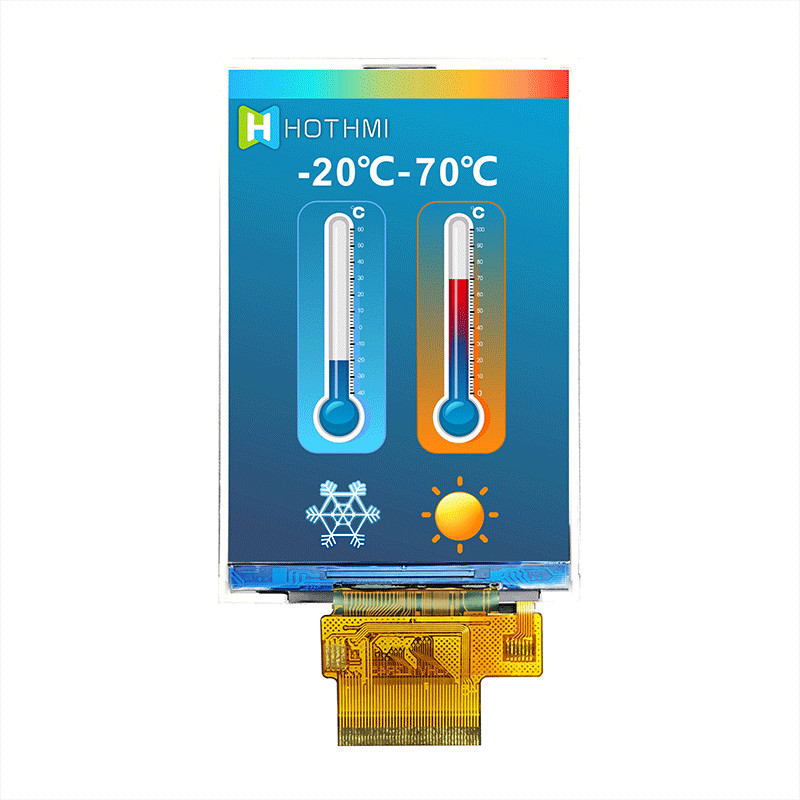

Working temperature - -20~70℃
Supply Voltage - 2.8V

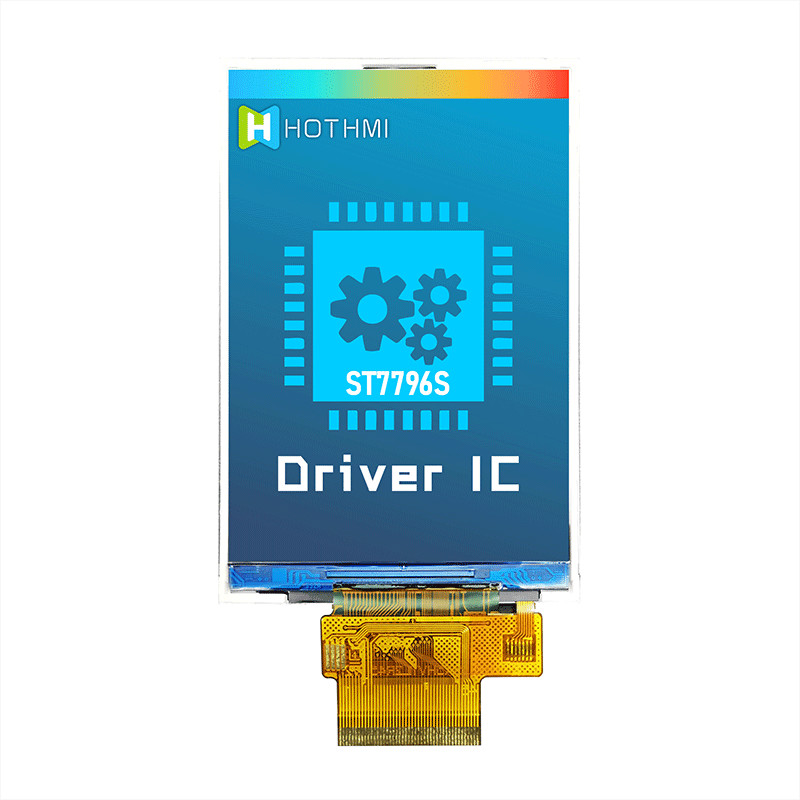

Driver IC Model - ST7796S


General Feature:


ItemStandard ValueUnit
Display Size3.5”--
Number of Pixels320(H)x3(RGB)*480(V)--
Active Area48.96(H) *73.44(V)mm
LCM Outline Dimension55.66(H) ×85.04(V)× 2.40(D)mm
Viewing Direction12 O’Clock-
LCM InterfaceMCU 8/16 Bit-
LCM Driver ICST7796S-
LCM Driver VoltageVCI=2.8VV
BacklightWhite LED-
Touch PanelWithout TP-
CTP Driver IC- - --
CTP Driver VoltageVDD=2.8VV
CTP I/O Digital Voltage- - -V
Operation Temperature-20~70
Storage Temperature-30~80

Pin Description


Pin NO.SymbolDescription
1LED_ALED Anode
2-7LED_K1-K6LED Cathode
8GNDGround
9NCNo Connect
10VCIPower supply for analog and booster circuits.
11IOVCCPower supply for I/O system.
12CSChip selection pin. Low-active.
13WRWrite enable in MCU parallel interface
14RSDisplay data/command selection (RS) pin in MCU interface
15RDRead enable in 8080 MCU parallel IF. Low-active.
16RESETLCM Reset Pin.
17,18NCNo Connect
19-34DB15-DB0Data Bus.If not used, please fix this pin at GND.
35,36NCNo Connect
37TETearing effect output.If not used, leave this pin open
38NCNo Connect
39GNDGround
40RTP_XLResistive touch screen control pins
41RTP_YDResistive touch screen control pins
42RTP_XRResistive touch screen control pins
43RTP_YUResistive touch screen control pins
44GNDGround
45NCNo Connect

Search keyword: tft 3.5, tft 3.5", 3.5 tft lcd, 3.5" tft lcd, 3.5 inch tft lcd, tft lcd 3.5, 3.5 tft display, 3.5" tft display, 3.5 inch tft display, tft display 3.5, tft display 3.5"

TFT-H035A5HVTST3N45.pdf
