Categories | Nvidia AGX Xavier |
---|---|
Brand Name: | PLINK |
Model Number: | NVIDIA Jetson AGX Xavier 32G |
Place of Origin: | China |
MOQ: | 1SET |
Price: | To be discussed |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 1+set+4weeks |
Delivery Time: | 15-30 work days |
Packaging Details: | 110*140*50mm |
NAME: | Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System |
Keyword: | Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System |
AI Performance: | 32 TOPS |
HDMI 2.0: | 2x NVDLA Engines |
Memory: | 32 GB 256-bit LPDDR4x 136.5GB/s |
Power: | DC +12V |
Temperature: | -25~+65℃ |
Single Package Size: | 136mm×100mm×20 mm |
Weight: | 412g |
Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System

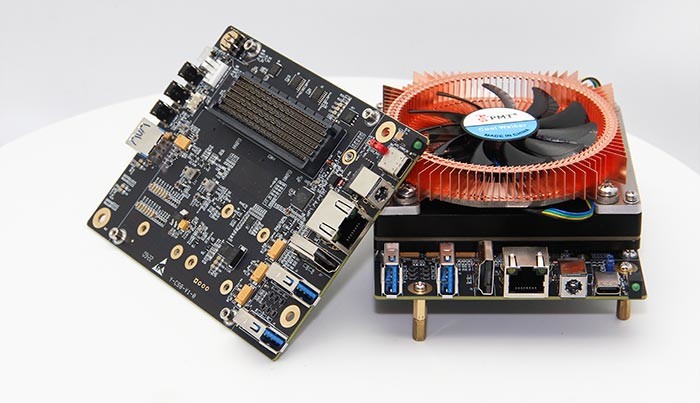

NVIDIA Jetson AGX Xavier (32G ) Y-C9-DEV
NVIDIA Jetson AGX Xavier(32G) + Y-C9 Carrier Board + Cooling FAN
The Y-C9-DEV is for deep lesrning and makes the makers, developers good to creat the autonomous products, it based on NVIDIA Jetson AGX Xavier module, two instances of the NVIDIA Multi-Standard Video Decoder (NVDEC). The video decoder is designed to be extremely power efficient without sacrificing performance and communicates with the memory controller through the video DMA which supports a variety of memory format output options. For low power operations, the video decoder can operate at the lowest possible frequency while maintaining real-time decoding using dynamic frequency scaling techniques.
NVIDIA Jetson AGX Xavier module Technical Specifications
AI Perf | 32 TOPS |
GPU | 512-core NVIDIA Volta architecture GPU with 64 Tensor Cores |
CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
Memory | 32GB 256-bitLPDDR4x 136.5GB/s |
CSI Camera | Up to 6 cameras |
Storage | 32GB eMMC 5.1 |
USB | 3x USB 3.2 Gen2 (10 Gbps) |
PCIe | 1 x8 + 1 x4 + 1 x2 + 2 x1 |
USB 3.1 Type-A | 3 |
Micro USB (Debug) | 1 |
USB Type-C | 1 |
MiniPCIe | 2 |
M.2 Key M | 1 |
3.3V TTL | 2 |
Working indicator light | 1 |
Fan control interface | 1 |
Gigabit Ethernet (10/100/1000 BASE-T) RJ45 | 1 |
HDMI 2.0 | 1 |
Size | 136mm×100mm×20 mm |
Weight | 412g |
Power | DC +12V |
Temperature | -25~+65℃ |
![]() |
