2-6 Cores Abc Overhead Cable Stranding Machine Accurate Control

Accurate Control Bow Cablers And Skip Stranders For Stranding 2-6 Cores ABC Overhead Cable

1. Application:
The machine is mostly used for laying up control table, mine cable and rubber-sheathed cable (not armored).

2.Main features
2.1 Max. dia. of single wire:25mm
2.2 Max. O.D after laying:50mm
2.3 Max. Rotating speed of stranding bow: 179r/min
2.4 Lay Length: 48~710mm
2.5 Max. rev of taping unit: 800r/min
2.6 Taping pitch: step-less
2.7 Max. Pulling force of caterpillar: 1250kg
2.8 Line speed of hauling off: 127.3 m/min
2.9 Central pay off bobbin:800 mm～1250mm
2.10 Pay off bobbin inside cage :1250mm
2.11 Take up bobbin:1250~2500mm
2.12 Main motor: 75kw (ACVF)
2.13 Taping motor:15KW(ACVF)

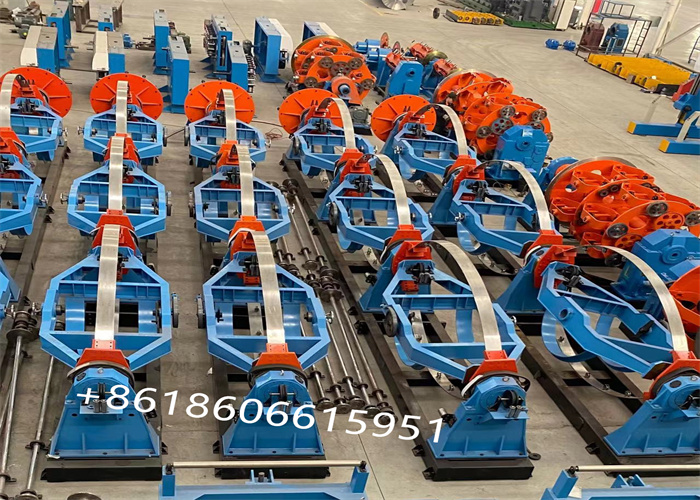

BEYDE bow type cabler are widely used in different fields, and bow type cabler can generally be divided into different types according to different rotational speeds. Today we say this product is a bow type product, so it is mainly used in the product contracting of plastic cables and box cables. There are many varieties of bow type cable formers, and the specifications are particularly complete, so the scope of use is also particularly wide, Moreover, consumers can make corresponding choices according to their needs, which can better play its use effect in the process of use. At the same time, the bow type cable forming machine has the function of retirement and non twisting, and can better meet the practical standards in the process of use. Therefore, our company has very strict requirements when producing bow type cable forming machine. The products produced can better meet God's standards, and every process has a very strict check.

Beyde Trading Co.,Ltd.(Know as Beyde) is the representative office for cable stranding machine factory(Built in 1995)in Hebei, China. BEYDE was set up to meet international business for those factories. One hour and a half hours from Tianjin Port, China, BEYDE keeps superior quality and competitive offers for global valued customers.

BEYDE Trading Co.,Ltd. is a manufacturer engaged in producing cable machines many years. The main products in our company including wire drawing equipments, cable stranding machine, strandingmachinery, plastics extruder and cable Reel drum. We always insists on using the best material to make the machine, so our machines are durable than general machine. We have a lot of customers who use our machine over than 20 years and still using now. Besides, We are makers by ourselves, not machine traders. Therefore, We sell to customers at a low price. We can design any types machine according to the demand of customers. We offer professional technique and services to our customers. Service overseas is provided by our company. We look forward to become your most valuable partner in the future. Let us create a wonderful future!

In 2019, due to the continuous increase of orders, the original production workshop could no longer meet the production requirements. Therefore, the management

of the company decided to repurchase a new piece of land of 10,000 square meters, and built the second processing plant in half a year. branch, and recruited 50

skilled workers, led by professional team personnel, and achieved good benefits, greatly relieving the pressure of production.

Beyde company is used for international advanced cable and wire processing equipment. In China, we are the only real manufacturers with independent processing and design capabilities.

The company produces 200-300 cable machines per year, especially pipe stranding machines, accounting for 60% of the Chinese market.
