| Categories | Bow Type Laying Up Machine |
|---|---|
| Brand Name: | Beyde |
| Model Number: | 1250 1+5 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Payment Terms: | L/C, D/P,, T/T, D/A |
| Supply Ability: | 200 set/year |
| Delivery Time: | 90 days |
| Packaging Details: | container |
| Usage: | Stranding,core cable laying up machine |
| Color: | Customized |
| Name: | laying up machine |
| Application: | Cable Making Industry |
| Function: | electric wire laying up,laying up cores into cable |
| Wire material: | conductor or insulated cores,Teflon PVC Silicone,BV BVR PVC ETC.,steel tire cord/copper wire |
| Plc: | SIEMENS |
| Stranding pitch (mm): | 180-3166 |
| Warranty: | 12 Months |
| Taping rotation (rpm): | 174-387 |
| Type: | Electrical Appliance Machinery |
| Motor: | siemens |
| Inverter: | Japan YASKAWA |
| Company Info. |
| Beyde Trading Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

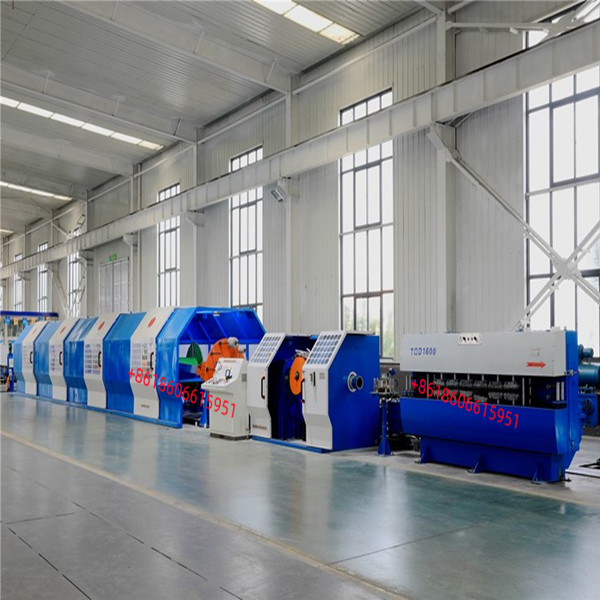

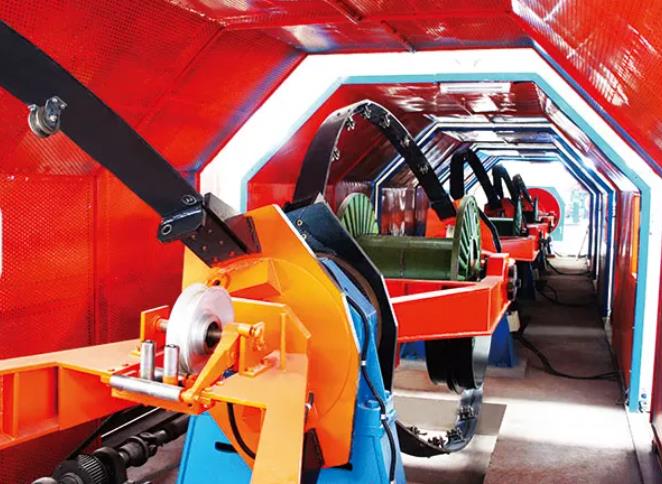

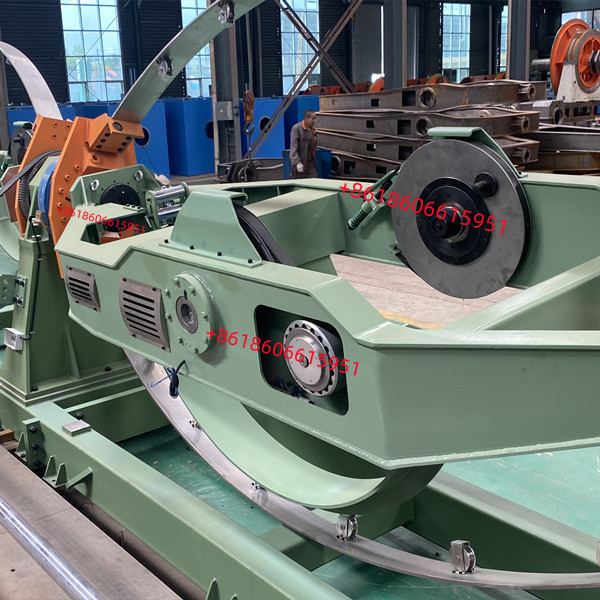

Wire And Cable Machine Bow Type Laying Up Machine Strander Skip Type Twisiting Machine
| achine type | 1250 |
| Wire product of stand | Special use twist aluminum and copper round press dowm the conductor |
| Cooper wire individual | Φ1.5-4.8 |
| Finish standed wire/max. | 10 mm φ/max |
| Finish standed wire/Max. | 15mm φ/max |
| Section of strand-twisting(Flexible strand) | 3.5÷70mm2(6AWG÷450MCM) |
| Section of strand-twisting(Semi-frametwisting1+6) | 3.5÷50mm2(6÷1/0AWG) |
| Section of compaction Cu | 3.5÷50mm2(6AWG÷300MCM) |
| Section of compaction Al | 3.5÷70mm2(6AWG÷301MCM) |
| Line speed/Max. | 150mpm/max |
| Stand pitch(mm) | 40-350mm |
| 60 | 8000rpm/max.(1600TPM) |
| Load weight/Max. | 3000KG |
| Max.compaction angle | 13% |
| Traction pulley | 2×φ600mm |
| Standing Direction | S,Z Direction |
| Main motor(DC/AC/HP) | 55kw D.C. motor |
| Drive of Capstan(DC/AC/HP) | 30kw D.C. motor |
| Drive of take-up unit(DC/AC/HP) | 7.5kw D.C. motor |
| Drive of traverser | 0.75kw Inverter motor |
| Drive of liading&unloading | 1.5kw Inverter motor |
| Power control | Digital type DC control |
| Revise system | Line speed synchronous auto control |
| Spool bobbin size OD | OD:φ1250 mm/Max |
| Spooler size OW | 950×800×80(mm) |
| Control system | PLC man-machine interface |
| Tension control | Coiling motor indicates tension control |
| Lay stranding pitch | PLC digitization setting |
| Operating direction | Left/ right hand machine |
| Traversing width | 1000mm/Max |
| Traversing unit | Wire diameter setting by digital type |
| Take-up type | Reel taken between pneumatic pintles |
| Reel loading & unloading | Liquefaction automatic positioning |
| Brake system | Disc brake |
| Bearing lubricative type | Oiling regularly |
| Air pressure | 6kg/cm2 |
| Vogtage | 380V 50Hz |
| Noise level | 80db |
| Machine size | (L)6030×(W)2280×(H)2280mm |
| Weight | 12500kg |
|
