| Categories | Mobile Thermal Label Printer |
|---|---|
| Brand Name: | WOOSIM |
| Model Number: | WSP-I250 |
| Certification: | CE,FCC,ROHS |
| Place of Origin: | CHINA |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000PCS/Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | carton, 8PCS/ carton |
| Printing Speed: | 120mm/s (Max) |
| Printing method: | Direct thermal line printing |
| Interface: | Bluetooth Verv 4.0, USB 2.0 |
| Resolution: | 203dpi, 8dots/mm |
| Character size: | Font Size A: 12X24 Font Size B : 9X24 Font Size C : 8X16 |
| Paper: | Thermal roll paper, (58mm wide, 50ø) |
| Printing width: | 48mm |
| H/W Spec: | MCU -RX : 32bit, FLASH : 8M bytes, RAM : 16M bytes |
| Battery: | 2600MAH(MAX) |
| Senor: | Balck mark senor |
| SDK: | yes |
| Driver: | Support |

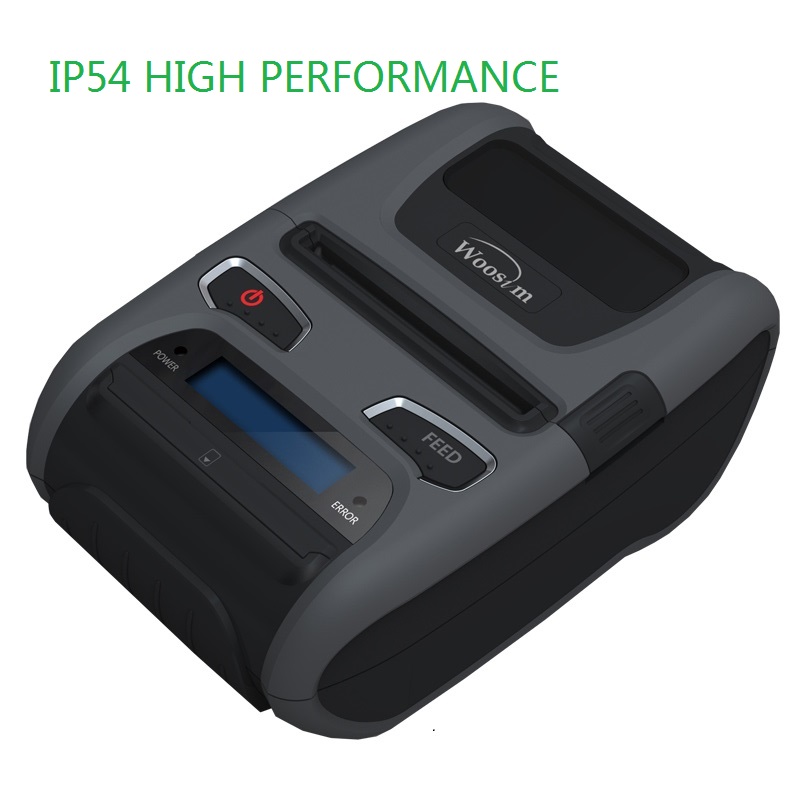

2 inches high performance mobile thermal handle bluetooth label barcode printer
WSP-I250
- Printer door open & Paper-out sensor
- Easier maintenance with self-diagnostic.
- In field programming, Update Firmware, Download Fonts and Logos
- Compack and easy to carry around.
- Water-resistant construction.( IP54 Certified )
- Free fall: 1 meter onto concrete (option 1.8 meter)
- Windows, OPOS, Linux CUPS Driver
- iOS, Android, Windows, Window CE, Linux SDK
- Support Command: ESC/POS
| Item | Specification | |
| Printing method | Direct thermal line printing | |
| Optional Characters | Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek, Japanese, Persian, Latin9 and Others upon request. | |
| Character size | Font Size A: 12X24 Font Size B : 9X24 Font Size C : 8X16 KOR : 24X24(16X24) CHN, JPN : 24X24 | |
| Characters per line | Font A : 32cpl Font B : 42cpl Font C : 48cpl KOR, CHN, JPN : 16cpl | |
| Resolution | 203dpi, 8dots/mm | |
| Print width | 2-inch (48mm, 384dots) | |
| Printing speed | 120mm/s (depend on FW license). | |
| Dimensions (WxDxH) | 92.12 x 140.56 x 59.75 mm (standard) 92.12 x 144.47 x 59.75 mm (MSR Option) | |
| Interface | · USB · Wireless LAN (IEEE 802.11a/b/g/n) [option], UART(RS-232C or TTL) [option] | |
| Paper supplied | Thermal roll paper, (58mm wide, 50ø), Paper thickness : 60㎛-80㎛ | |
| Barcode | 1-dimension : Code128, Code39, I2/5, Code93, UPC-A, UPC-E, EAN8,
EAN13, CODABAR 2-dimension : PDF417, QR Code, DATA Matrix, Micro PDF417, Truncated PDF417, MAXI CODE | |
| Driver | Windows, OPOS, Linux CUPS | |
| SDK | iOS, Android, Windows, Window CE, Linux SDK | |
| Black mark | Support black mark detection | |
| H/W Spec. | MCU -RX : 32bit, FLASH : 8M bytes, RAM : 16M bytes | |
| Receive buffer size | 1 M bytes | |
| MSR [option] | ISO 7810/7811/7812 Triple tracks (1&2&3 Tracks) Reading **DUKPT key management | |
| Smart card reader [option] | ISO 7816 Compliant (EMV level 1 Certified) / T=0, T=1 support / 1 SAM (Security Application Module) | |
| LCD | 128*32 Dots FSTN(Blue LED Backlight) | |
| Battery | Rechargeable 7.4V DC 2,200mAh(Standard) 2,600mAh(Optional) | |
| Battery duration | 1.5 hours continuous printing (20hours per day in normal operation) | |
| AC adapter | Input(100~250VAC, 50~60Hz) Output(8.4VDC/0.8A), 4hours full charge time | |
| Environment | Operation: -10°C ~ 50°C, HR ≤ 80% | |
| Storage: -10°C ~ 70°C, HR ≤ 90% | ||
| MCBF(Mean Cycle Between failure) | Mechanical | 37,000,000 lines |
| TPH | ≥ 100Km | |
|
