| Categories | Mobile Thermal Label Printer |
|---|---|
| Brand Name: | WOOSIM |
| Model Number: | WSP-I450 |
| Certification: | CE,FCC,ROHS |
| Place of Origin: | CHINA |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000PCS/Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | carton, 8PCS/ carton |
| Printing method: | Direct thermal line printing |
| Interface: | Bluetooth Verv 4.0, USB 2.0 |
| Resolution: | 203dpi, 8dots/mm |
| Character: | Font Size A: 12X24 Font Size B : 9X24 Font Size C : 8X16 |
| Paper Roll: | Thermal roll paper, (58mm wide, 50ø) |
| Printing width: | 104mm |
| H/W Spec: | MCU -RX : 32bit, FLASH : 8M bytes, RAM : 16M bytes |
| Battery: | 2600MAH(MAX) |
| Senor: | Balck mark senor |
| SDK: | Android, IOS sdk |
| Driver: | Support |

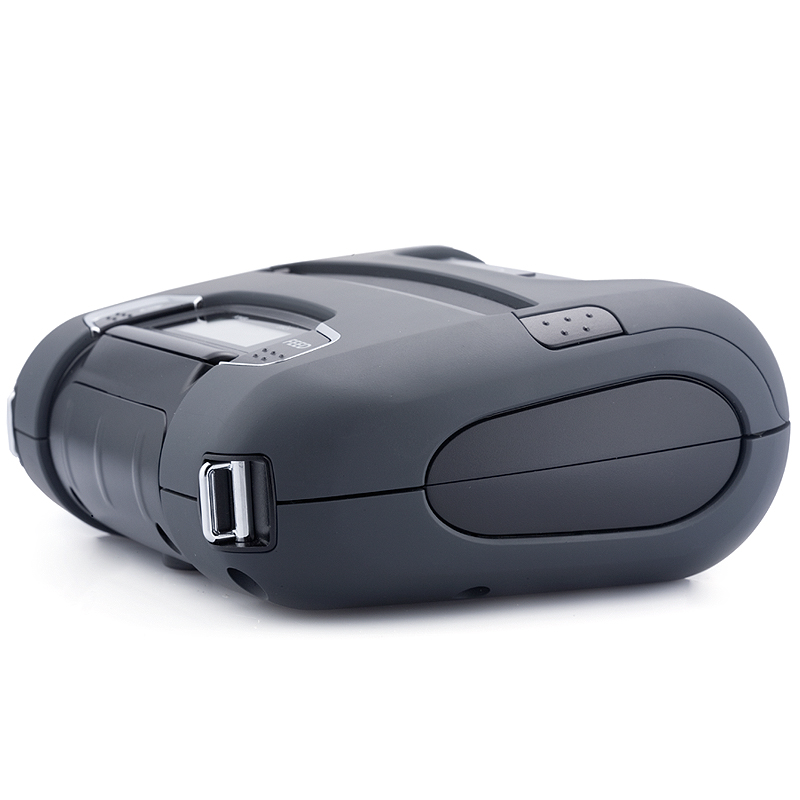

Android bluetooth Mobile portable IP industry thermal label printer
WSP-I450
- Water-resistant construction.( IP54 Certified )
- Free fall: 1.8 meter onto concrete
- Microsoft Windows XP / VISTA / 10
Windows CE, Linux, Android, Blackberry
| Item | Specification | |
| Printing method | Direct thermal line printing | |
| Characters per line | 92cpl (MAX) | |
| Optional Characters | Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek, Japanese, Persian, Latin9 and Others upon request. | |
| Character size | Eng. : 9x24dots, 12x24dots Kor. : 16x24dots [24x24dots] | |
| Resolution | 203dpi, 8dots/mm | |
| Print width | 4-inch (104mm, 832dots) | |
| Printing speed | 110mm/sec (MAX) | |
| Dimensions (WxDxH) | 150.9 x 136.4 (143.2) x 63.3 mm | |
| Weight | 596g [standard] 609g [MSR option] | |
| Interface | · UART(RS-232C or TTL) Bluetooth Ver3.0 · Wireless LAN (IEEE 802.11a/b/g/n)[option] | |
| Paper supplied | Thermal roll paper, (113mm wide, 50ø), Paper thickness : 60±5㎛ | |
| Barcode | 1-dimension : Code128, Code39, I2/5, Code93, UPC-A, UPC-E, EAN8, EAN13, CODABAR 2-dimension : PDF417, QR Code, DATA Matrix, Micro PDF417, Truncated PDF417, MAXI CODE | |
| Driver | Microsoft Widows XP / VISTA / 10 Windows CE, Linux, Android, Blackberry | |
| Black mark | Support black mark detection | |
| H/W Spec. | MCU : 32bit RX, FLASH : 8M bytes, RAM : 16M bytes | |
| Receive buffer size | 1M bytes | |
| MSR [option] | ISO 7810/7811/7812, Triple tracks (1&2&3 Track Reading) **Supports 3DES & AES encryption (3DES is standard) [option]** **DUKPT key management** | |
| Smart card reader [toption] | ISO 7816 Compliant (EMV level 1 Certified) / T=0, T=1 support / 1 SAM (Security Application Module) | |
| LCD | 128*32 Dots FSTN(Blue LED Backlight) | |
| Battery | Rechargeable 7.4V DC / 2,200mAh OR 2,600,Ah (Li-ion) | |
| Battery duration | 1 hour continuous printing | |
| AC adapter | Input(100~250VAC, 50~60Hz) Output(8.4VDC/0.8A), 4hours full charge time | |
| Operating temperature | -20°C ~ 55°C | |
| Storage temperature | -20°C ~ 70°C | |
| MCBF(Mean Cycle Between failure) | Mechanical | 37,000,000 lines |
| Head | Approximately 50Km | |
Applications
Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.
|
