Durable Wall Mount Termination Box , 2/4/6 Cores Fiber Optic Termination Cabinet

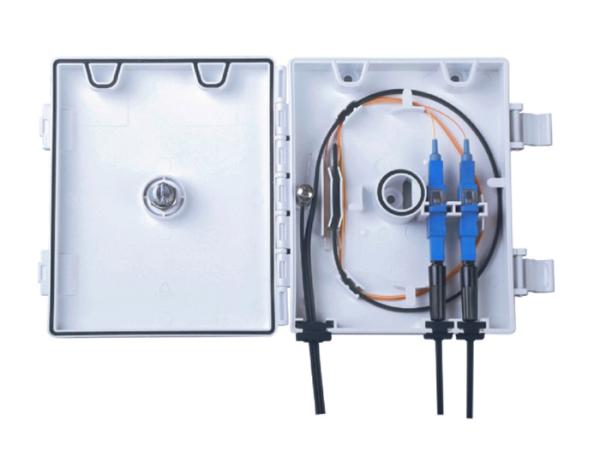

2/4/6 cores fiber distribution box, China FTTH fiber optic terminal box manufacture Description This fiber access termination box is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features ● Water-proof design with IP-66 Protection level. ● Integrated with splice cassette and cable management rods. ● Manage fibers in a reasonable fiber radius condition. ● Easy to maintain and extend the capacity. ● Fiber bend radius control more than 40mm. ● Suitable for the fusion splice or mechanical splice. ● 1*2 or 1*4 PLC splitter can be installed as an option. ● Efficient cable management. ● 2/4/6ports cable entrance for drop cable.

Configuration

Ports No.	Material	Size	Max Capacity			Installation Size	Weight	Color
2core	PC+ABS	AxBxC(mm)	SC	LC	PLC	DxE(mm)	0.8kg	Light Grey
2core	PC+ABS	168x103x32	2 Ports	4 Ports	1x2(SC)	159x80	0.8kg	Light Grey
4core	PC+ABS	AxBxC(mm)	SC	LC	PLC	D(mm)	0.8kg	Light Grey
4core	PC+ABS	186x116x41	4 Ports	8 Ports	1x4(SC)	195	0.8kg	Light Grey
6core	PC+ABS	AxBxC(mm)	SC	LC	PLC	D(mm)	0.8kg	Light Grey
6core	PC+ABS	186x116x41	6 Ports	12 Ports	1x4(SC)	195	0.8kg	Light Grey
