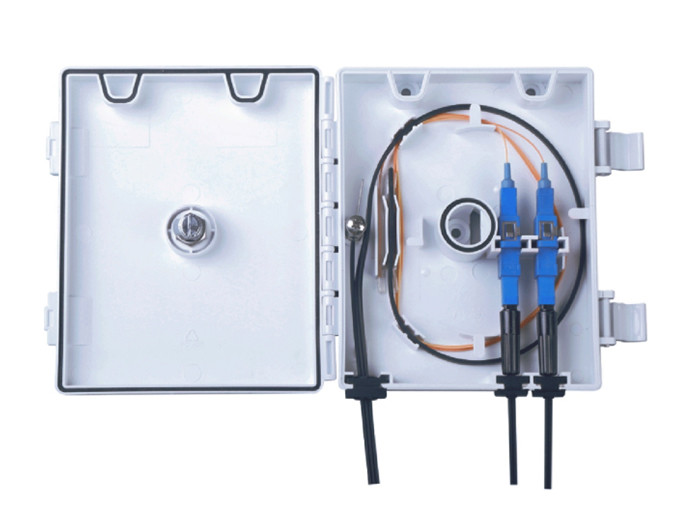

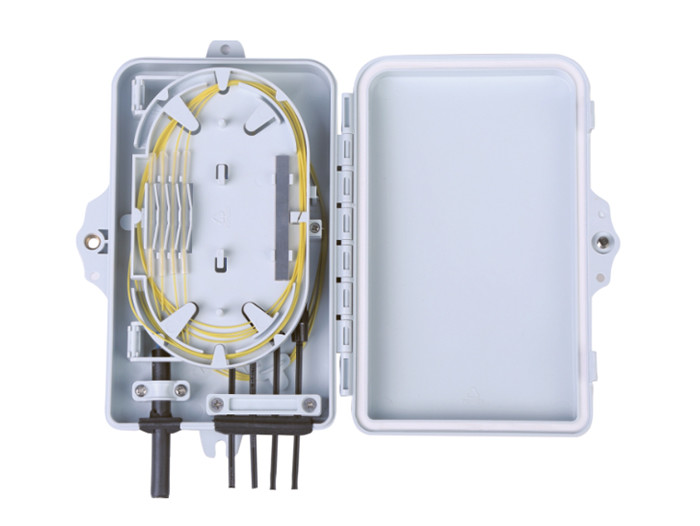

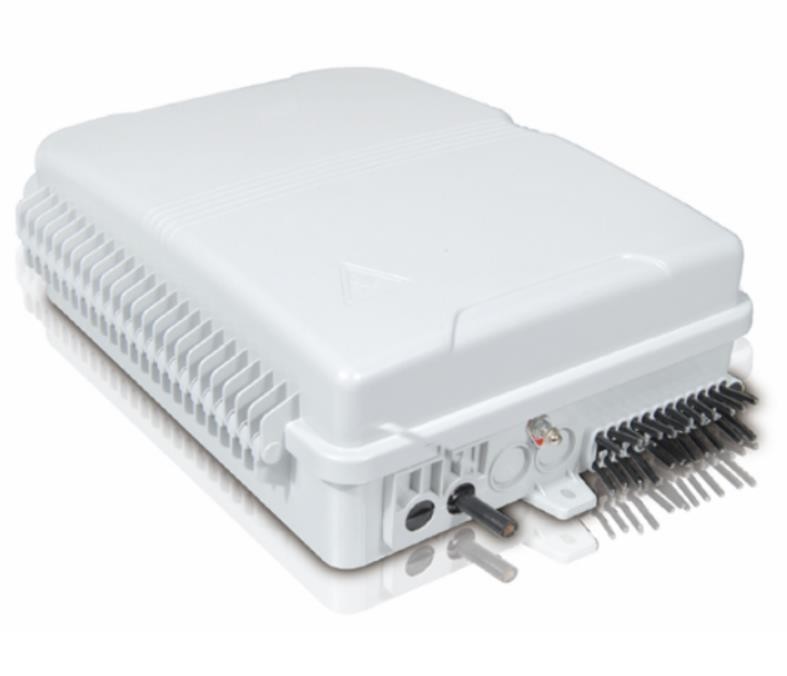

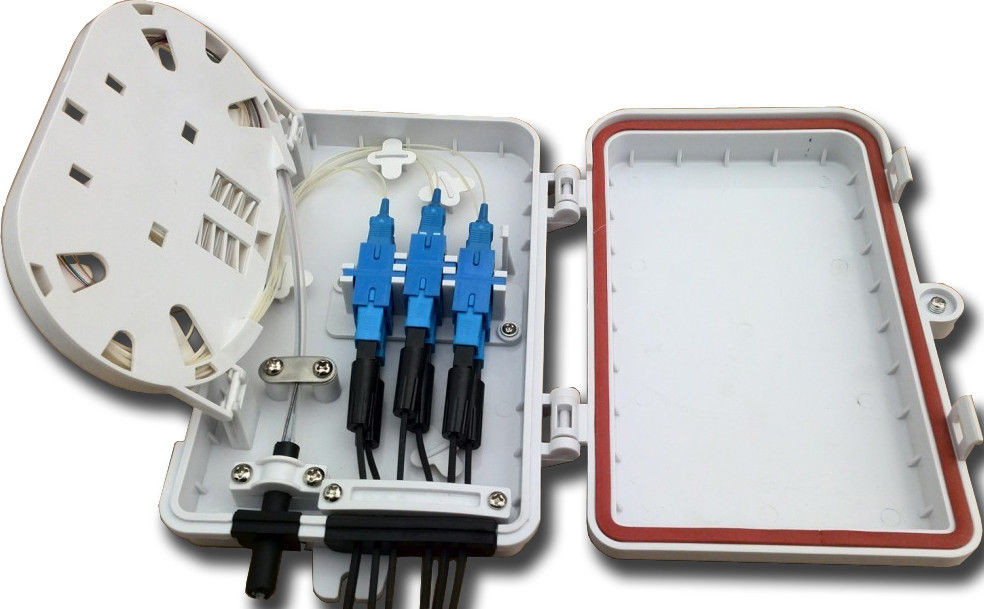

8/12/16 Cores Splice Fiber Optic Termination Box Enclosure Integrated With Splice Cassette

8/12/16 cores splice terminal box, china fiber distribution box/enclosure factory Description This fiber access termination box is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features ● Water-proof design with IP-66 Protection level. ● Integrated with splice cassette and cable management rods. ● Manage fibers in a reasonable fiber radius condition. ● Easy to maintain and extend the capacity. ● Fiber bend radius control more than 40mm. ● Suitable for the fusion splice or mechanical splice. ● 1*8 or 1*16 PLC splitter can be installed as an option. ● Efficient cable management. ● 8/12/16ports cable entrance for drop cable.

Configuration

Ports No.	Material	Size	Max Capacity		Installation Size	Weight	Color
8core	PC+ABS	AxBxC(mm)	SC	Modular PLC	DxE(mm)	1.5kg	Light Grey
8core	PC+ABS	235x200x62	8 Ports	1x8(SC)	168x210	1.5kg	Light Grey
12core	PC+ABS	AxBxC(mm)	SC/LC	PLC	DxE(mm)	1.5kg	Light Grey
12core	PC+ABS	235x200x62	12/24 Ports	1x8(SC)	168x210	1.5kg	Light Grey
16core	PC+ABS	AxBxC(mm)	SC	Modular PLC	DxE(mm)	1.5kg	Light Grey
16core	PC+ABS	317x237x101	16 Ports	1x16(SC)	206x274	1.5kg	Light Grey
