| Categories | CWDM DWDM |
|---|---|
| Brand Name: | Fibery |
| Model Number: | FYFWDM03 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1SET |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram,Paypal |
| Supply Ability: | 5000Unit/Month |
| Delivery Time: | 3-6 work days |
| Packaging Details: | pvc box+outer carton |
| Product name: | Optical Filter FWDM |
| Wavelength: | 1270~1620nm |
| Connector Type: | ST |
| Pass Channel Insertion loss: | on Loss: ≤0.80 dB |
| PDL: | <0.1dB |
| Return Loss: | >50 dB |
| Fiber type: | Corning Single mode SMF-28 |
| Fiber Length: | Customized |
| Warranty: | 1 Year |
| Application: | FTTH FTTB FTTX Network,Telecommunication,WDM Solution,CATV/HFC/PON |
FWDM Optical WDM Equipment FTTX 3 Channel ST 1310nm 1490nm 1550nm CWDM DWDM
Description
FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
We provide filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get‘s "mixed".
Feature
Low Insertion Loss
High channel Isolation
Wide pass band
High reliability and stability
Epoxy free on optical path
Specification
| Parameters | 1×2 FWDM Device | |
| Operating Wavelength Range (nm) | 1260-1620 | |
| Pass wavelengths band[λc] (nm) | 1520-1600 | |
| Reflection wavelengths band[λc] (nm) | 1310±50/1490+/-10 | |
| Pass Channel Insertion Loss (dB) | ≤0.80 | |
| Reflection Channel Insertion Loss (dB) | ≤0.70 | |
| Channel Ripple (dB) | ＜0.3 | |
Isolation (dB) | Pass Channel | ＞30 |
| Reflection Channel | ＞20 | |
| Insertion Loss Temperature Sensitivity (dB/℃) | ＜0.005 | |
| Polariation Dependent Loss (dB) | ＜0.1 | |
| Polarization Mode Dispersion (ps) | ＜0.1 | |
| Return Loss (dB) | ＞50 | |
| Directivity (dB) | ＞55 | |
| Connector Type | COM,1550:SC/APC 1310/1490:SC/UPC | |
| Fiber Length (m) | 1.0 | |
| Fiber type | Corning Single mode SMF-28 | |
| Maximum Optical Power (mw) | 300 | |
| Operating Temperature (℃) | -20～+75 | |
| Storage Temperature (℃) | -40～+85 | |
| Package Dimension (mm) | 90*20*10 | |
Application
Line monitoring
Telecom munication
Cellular Application
Fiber optical Amplifier
Access Network

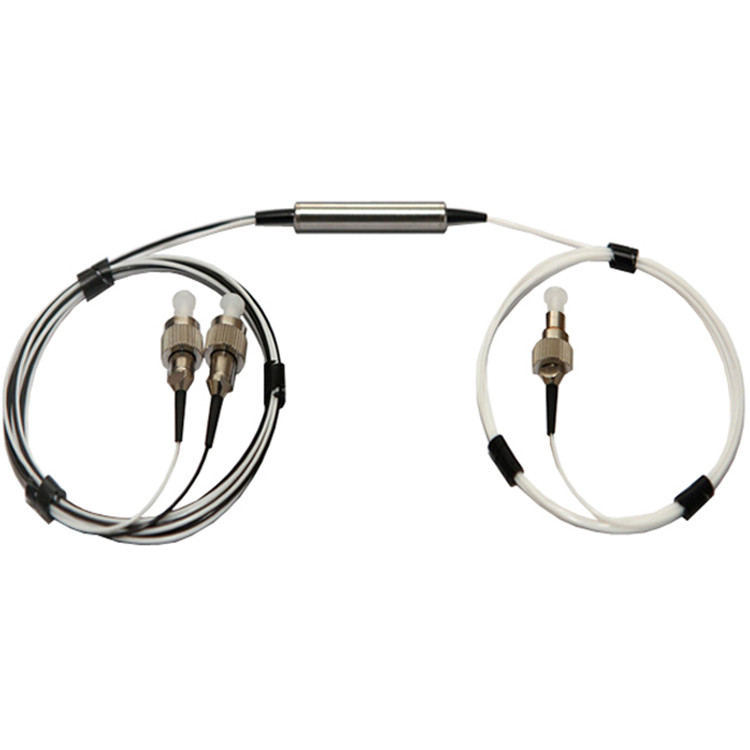

Product pictures
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
|
