| Brand Name: | Fibery |
| Model Number: | FYDWDM40 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1SET |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram,Paypal |
| Supply Ability: | 5000Unit/Month |
| Delivery Time: | 3-6 work days |
| Packaging Details: | pvc box+outer carton |
| Product name: | DWDM Mux Demux |
| Wavelength: | 1270-1610Nm |
| Connector Type: | Optional |
| Insertion Loss（dB): | ≤1.0 |
| PDL: | <0.1dB |
| Return Loss: | >45 dB |
| Fiber type: | Corning Single mode SMF-28 |
| Fiber Length: | Customized |
| Warranty: | 1 Year |
| Application: | FTTH FTTB FTTX Network,Telecommunication,WDM Solution,CATV/HFC/PON |

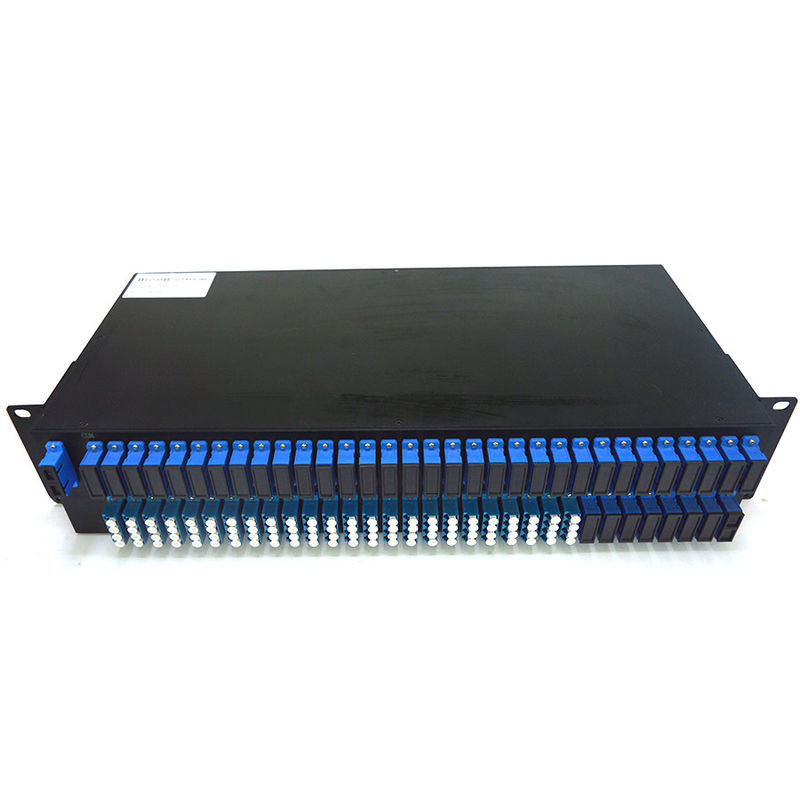

DWDM Mux Demux 40 Channel SC LC Connector AWG Wavelength Division Multiplexing
Description
Dense wavelength division multiplexer(DWDM) is based on the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, within ITU wavelengths to achieve uplink and downlink. It provides ITU channel center wavelength, low insertion loss, high channel isolation, low power consumption, wide passband characteristics, no glue loop, excellent thermal stability and reliability and so on. In a telecommunications network system, it can be used for uplink or downlink optical signal.
We provide filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get‘s "mixed".
| Wavelength Range | nm | 1260 ~ 1620 | ||||
| Channel Center Wavelength | nm | 1270 / 1290 / … / 1610 or 1271 / 1291 / … /1611 | ||||
| Channel Spacing | nm | 20 | ||||
| Channel Passband | nm | λc ± 7.5 | ||||
| Channel No. | λ | 18 | ||||
| Insertion Loss | dB | ≤0.8 | ≤1.5 | ≤2.5 | ≤5.2 | ≤6.4 |
| Adjacent Channel Isolation | dB | ≥ 30 | ||||
| Non-adjacent Channel Isolation | dB | ≥ 40 | ||||
| Wavelength thermal stability | nm/°C | ≤ 0.003 | ||||
| Insertion loss thermal stability | dB/°C | ≤ 0.005 | ≤ 0.007 | ≤ 0.008 | ||
| PDL | dB | ≤ 0.1 | ≤0.15 | ≤ 0.15 | ≤ 0.20 | ≤ 0.25 |
| Polarization mode dispersion | ps | ≤ 0.1 | ≤ 0.15 | |||
| Directivity | dB | ≥ 50 | ||||
| Return loss | dB | ≥ 45 | ||||
| Optical Power | mW | ≤ 500 | ||||
| Operating Temperature | °C | -10 ~ +70 | ||||
| Storage Temperature | °C | -40 ~ +85 | ||||
| Relative Humidity | % | 5 ~ 95 | ||||
| Dimension | 1U Rackmount | |||||
Feature
Low Insertion Loss
High Channel Isolation
Optical path epoxy free
Excellent thermal stability and reliability
telcordia GR-1221 Compliance and RoHS Environmental Protection
Standard
Order Information
| Configuration | Channel No. | Channel | Pigtail Type | Fiber length | Dimensio(mm) | Connector |
| M=Mux D=Demux | 04=4 Channel 08=8 Channel 16=16 Channel N=N Channel …… | 27=1270nm 47=1470nm 49=1490nm …… 61=1610nm SS=special… | 0=250um 1=900um 2=2.0mm | 1=1m 2=1.5m 3=others | 1=L100 x W80 xH10 2=L120xW80xH18 3=19 1U Rack | 0=None 5=other |

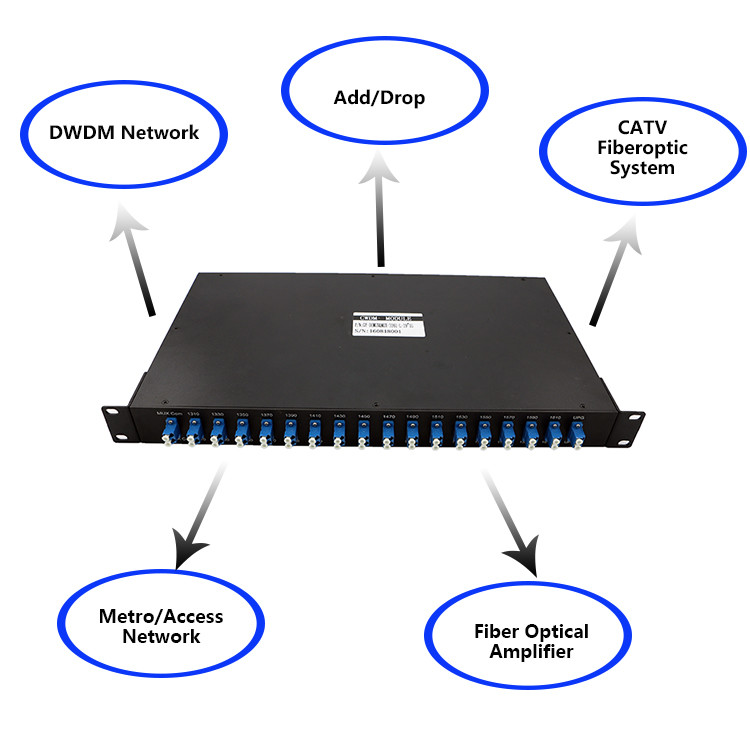

Application
Line monitoring
Telecom munication
Cellular Application
Fiber optical Amplifier
Access Network
