| Categories | Wavelength Division Multiplexer |
|---|---|
| Brand Name: | DYS |
| Model Number: | CWDM/DWDM modules(Premium) |
| Certification: | IS09001-2015.ROHS |
| Place of Origin: | Guangdong, China (Mainland) |
| MOQ: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50000/week |
| Delivery Time: | in 3 days |
| Packaging Details: | Individual Box or According to Customer's Request |
| Price: | Negotiable |
| Operating Wavelength Range: | 1260~1620nm |
| Connector type: | CWDM/DWCM |
| Max. Power Handling: | 300Mw |
| Channel Spacing: | 20 nm |
| Operation Temperature Range: | -40to85℃ |
| Certifaction: | RoHS,ISO9001 |
| Storage Temperature Range: | -40to85℃ |
Coarse / Dense Wavelength Division Multiplexer CWDM / DWDM Connector Modules Premium
Introduction
CWDM & DWDM modules are based on Thin-Film Technology and All-Glass Packaged platform, keeping the device in compact size and excellent performance. Excellent device qualification test ensure the long term performance of module products in field applications.
Features
■ Low Insertion Loss
■ Excellent Channel Isolation
■ High Stability & Reliability
■ Low Cost
■ Flexible Package

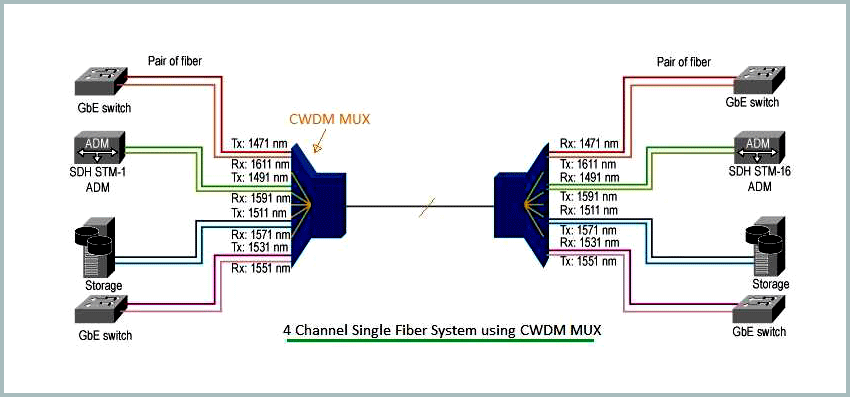

Applications

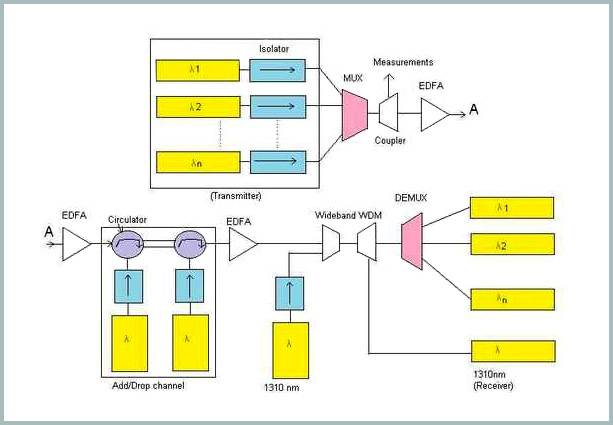

■ WDM Channels Add/Drop Systems
■ WDM Networks & Systems
■ CATV Fiber Optical Links
■ Accessing LAN & WAN Networks
■ Long Haul & Short-Distance Applications
Performance Specifications
| Parameters | Unit | Specifications Specifications | Standardremium | ||||
| 1 | Operating Wavelength Range | nm | 1260~1620 | 1460-1640 | |||
| 2 | Channel Spacing | ----- | 20nm | 100GHz | |||
| 3 | Channel Pass Band | nm | ITU±6.5(±7.0available) | ITU±0.125 | |||
| 4 | Channel Quantity | ----- | C 4CH | C 8CH | D 4CH | D 8CH | |
| 5 | Pass Band Ripple | Max. | dB | 0.25 | 0.30 | ||
| 6 | Channel Insertion Loss | Max. | dB | 1.5 | 2.5 | 1.5 | 2.5 |
| 7 | Adiacent Channel Isolation | Min. | dB | 35 | 35 | 30 | 30 |
| 8 | Non-adiacent Channel Isolation | Min. | dB | 45 | 45 | 45 | 45 |
| 9 | Express Channel Isolation | Min. | dB | 15 | 15 | 15 | 15 |
| 10 | Return Loss | Min. | dB | 45 | 45 | 45 | 45 |
| 11 | PDL(Polarization Dependent Loss) | Min. | dB | 0.10 | 0.10 | 0.20 | 0.25 |
| 12 | Power Handling | Max. | Mw | 300 | |||
| 13 | Operation Temperature Range | ℃ | -40to85℃ | ||||
| 14 | Storage Temperature Range | ℃ | -40to85℃ | ||||
| 15 | Fiber Jacket &Fiber Length | cm | Customized | ||||
| 16 | Package Dimensions-type1 | mm | 100*80*10 or Customize | ||||
| Package Dimensions-type2 | mm | LGX Compatible | |||||
| Package Dimensions-type3 | mm | LGX Compatible | |||||
| 19 | Connector Type | SC/LC/FC or Customize | |||||
| 20 | Fiber Type and Jacket Color | G652D/G.657 A1 (or Customize) | |||||
Remark: 0.3dB will be added on IL with connectors pairs included.
|
