Full Computerized Control Carton Folding Gluing Machine Case Maker Corrugated Carton Making Machine High Speed Save Cost
General Specifications
TP-CR series Flexo Folder Gluer, which is a One-time-pass equipment for carton box making, with huge production abilities, daily production can easy reach to 100,000 boxes.
This machine can finish multi-processes such as Feeding, Printing, Slotting, Die-cutting, Folding, Gluing, Counting Ejecting in one-pass.
Industrial Computer control with Keyboard, easy for order set-up and order change, can connect with ERP system.
Remote Control for future maintains of machine, easy trouble shooting.
MAIN PARAMETERS
Model Parameters (MM) | 0920 | 1224 | ||
| Max.Sheet Size (FxA) | 890x2000 | 1190x2400 | ||
| Skip Feed Size (FxA) | 1200x2000 | 1400x2400 | ||
| Min.Sheet Size (FxA) | 280x780 | 380x780 | ||
| Max.Printing Area (FxA) | 890x2360 | 1190x2360 | ||
| Top Speed (Sheet/min) | 300 | 250 | ||
| Economic Speed (sheet/min) | 120-250 | 120-200 | ||
| Max. Slot Depth Size | 300 | 300 | ||
| Min. Box Height Size (E) | 110 | 110 | ||
| Max. Die-Cutting Area (FxA) | 850x2350 | 1150x2350 | ||
| (Max. size) (B+C) | ≤980 mm | ≤1180 mm | ||
| (Min. size) (B+C) | ≥370mm | ≥380mm | ||
| (Max. size) (B) | 880mm | 1030mm | ||
| (Min. size) (B) | 270mm | 280mm | ||
| (Max. size) (C) | 710mm | 900mm | ||
| (Min. size) (C) | 100mm | 100mm | ||
| (Glue Flap Width) (D) | ≤40mm | ≤40mm | ||
| Sheet Thickness | 1.5-11 | 1.5-11 | ||
| Printing Plate Thickness (Sponge + Film + Plate) | 7.2 | 7.2 | ||
| Main Working Power (KW) | 4 Colors Slotter Die-cutter + Inline Folder Gluer | 70+40 | 70+40 | |
| Total Power(KW) | 4 Colors Slotter Die-cutter + Inline Folder Gluer | 100+51 | 100+51 | |
| Dimension (mm) | 4 Colors Slotter Die-cutter | 10500x5000x2530 | 10500x5200x2630 | |
| Inline Folder Gluer | 14300x2500x2650 | 14300x2600x2650 | ||
| Frame Thickness | Flexo Printer | 60mm | 60mm | |
| Folder Gluer | 40mm | 40mm | ||
Adopts friendly HMI with Touch Screen and PLC for machine control, easy to adjusted.
Can storage more than 100,000 orders, so no worry about small orders.

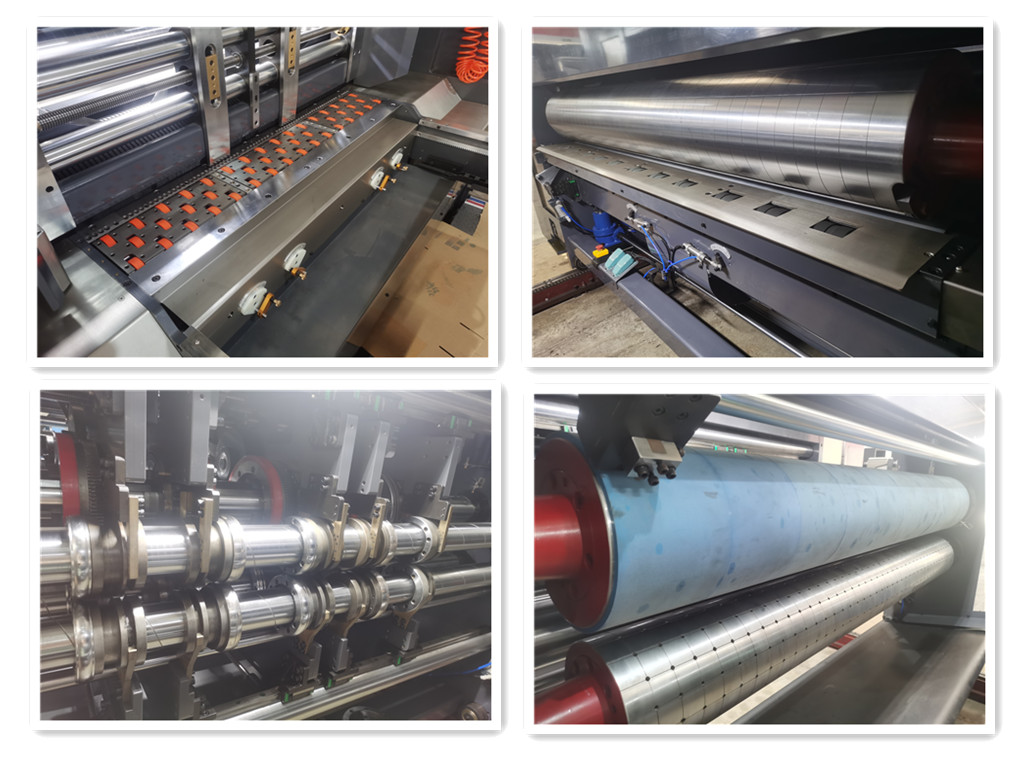

Lead edge feeder with 3-4 shafts running, stable and durable, frequency control of air flow.
Top printing unit with Vacuum transfer, benefits for bend and wraps cardboards.
Two options for slotting structure, Pre-creasing, Creasing, Re-creasing, Single Shaft Dual Slotting or Pre-creasing, Slotting, Creasing, Slotting, Slotting boss movement adopts Linear guiding Real with Screw for accurate and smooth move.
Heavy Duty die-cutting structure, especially equipped with line speed compensation system, to ensure accuracy die-cutting.
Adopts friendly HMI with Touch Screen and PLC for machine control, easy to adjusted.
Top printing flexo with down folding folder gluer,full closed unit for safety operation.
Easy to adjustment and maintain, most of the main functions is automatically adjusted or by Order Management System.
Top Loading counter ejector, which is easier for die-cutting boxes stacking.

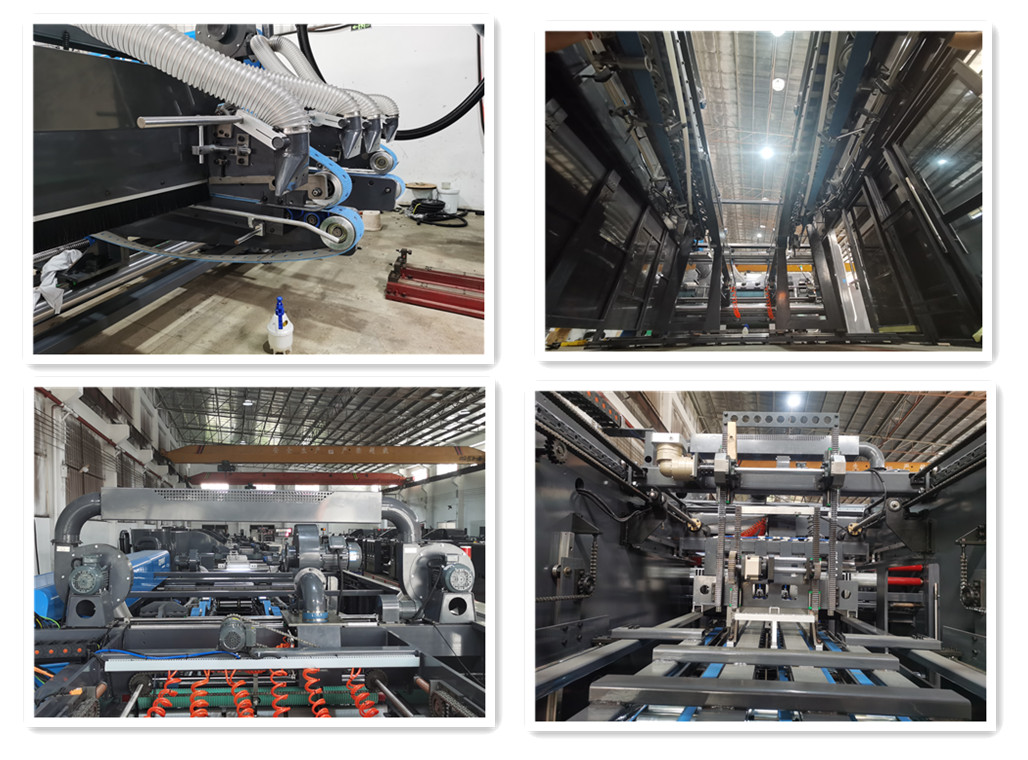

Adopts servo control for Side folding belts and guiding wheels, to correct big/small gap and fishtails.
All the function of Counter ejector uses servo control, fast feedback and easy to adjust, also reduce vibration and noise of paper arm system.
Suction belts for cardboard conveying straightly.
Ejecting unit equipped with fam to support cartons drop smoothly.
USA VALCO gluing system, the glue length can be adjusted, easy to operate and maintain.
|
