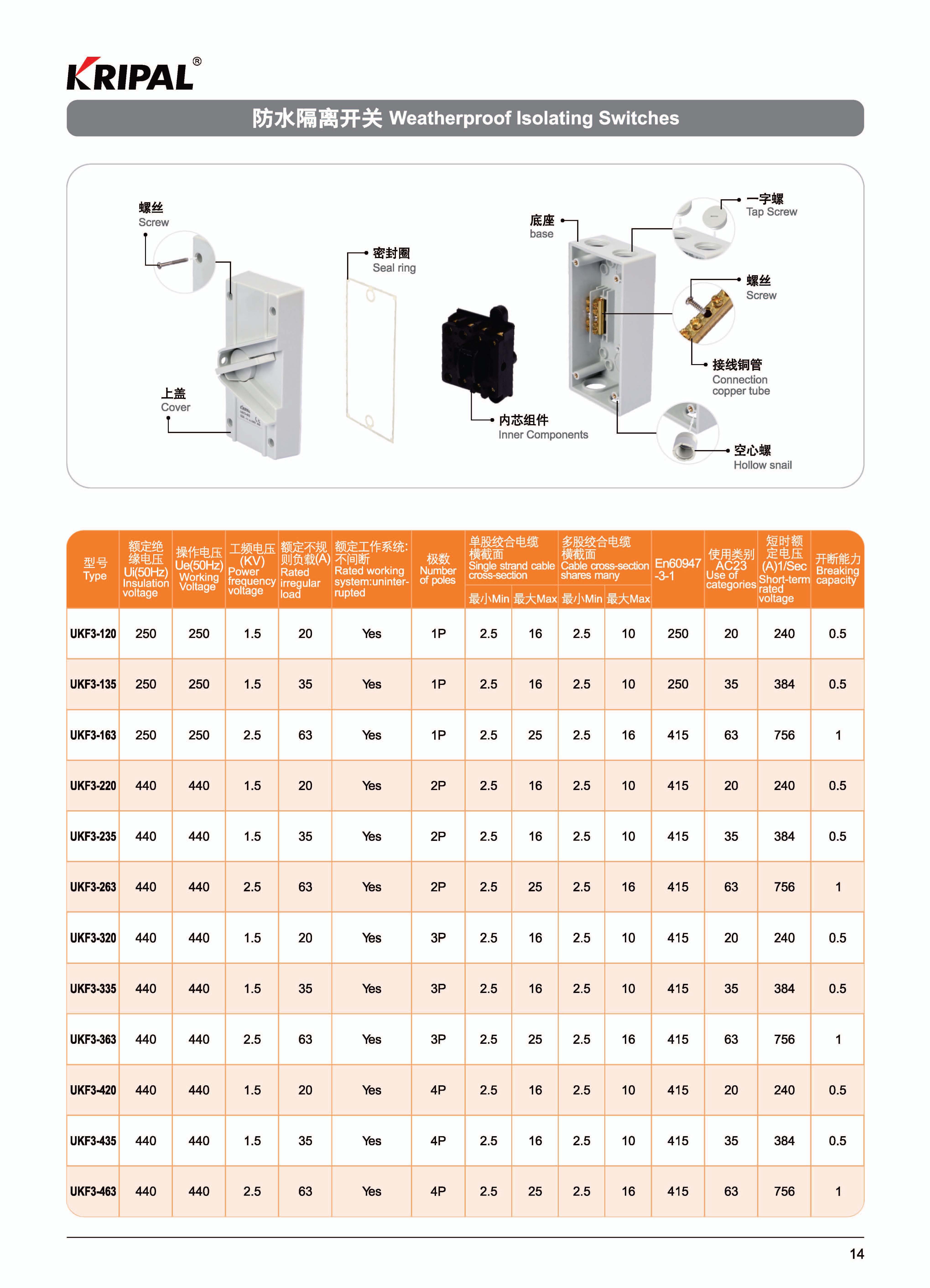

IP66 3Pole 20A Waterproof Isolator Switch UKF Australian standard

Product Description

Product Feature

1. UKF series weatherproof isolation switch wide range of applications, suitable for any outdoor application conditions. Including unipolar, bipolar and three-pole switch, current range 20A-63A. Base mounting arrangement provides easier termination and more wiring space. (Switch size is 165 * 82mm, total height 85mm)
2. Install ground and neutral connecting rod with double intensify screw, dial the same cable length and reliable clamping aperture terminal 5-6mm. More secure, installation switches to a metal structure with an insulating cap, insulating cap covering the base mounting screws to prevent their exposure to energized cables.
3. Each device provides a threaded pipe threaded Reducing joint connector box to connect with 25mm or 20mm conduits and screw caps. Screw caps must be installed to ensure IP Rating. For security, a 7mm diameter hole is provided for padlocking the lever in the OFF position. Deep moulded barriers protect the operating lever from physical abuse or accidental switching.

4. All units comply to IEC60947-3. Standard colours are grey & white.

Product Application

Products are widely used in smelting, chemical industry, power electronics, airports, railways, construction sites, mines, quarries, water supply and drainage treatment plants, automobile manufacturing, ports, docks, shopping malls, hotels and other places. When used as maintenance switch and safety switch, the position of "on" and "off" shall be clearly marked, and the padlock hole shall be provided, and the padlock can be installed at the "off" position; If you want to lock in the "open" position, you only need to lock one hole; To ensure the safety of users.

Packaging & Delivery

Our service

Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development.

With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of “Famous Export Brand”.

Kripal now has the factory area 12000 m2 and workers more than 500, including over 10 senior engineers, 30 professional technicists and 30 senior executives. Products pass the certification of CE, CB, UL, VDE, TUV, KEMA, SAA, SEMKO, RoHS, and China CCC as well as quality management system such as ISO9001.

Cooperated with domestic and foreign R&D institutions, Kripal successively developed more than 100 independent intellectual properties; some of them were successfully awarded the national patent for invention and utility models as its well performance. Kripal now has been selected as provincial technical research and development center and patent demonstration enterprise by government.

Kripal always adheres to the enterprise principle of “Scientific management, Independent Innovation, Coordinating Collaboration and Cultural Brand”, keep faith of “moral first”, and fulfill the core value of “double-win cooperation with customers, creating profit for company owners, getting rich together with workers, building harmony for society” and fight for the mission of “make the dream of world famous electrical brand come true”.

Workers: 650 (including workers in Taizhou factory)

Engineers: more than 30

QA/QC: more than 20

Certificate: CQC, CB, CE,VDE,UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: amounts to 25000m2

What we do: products’ design, mold building, production of parts (injection & punching), assembling,
                      products’ inspection, testing and etc

KRIPAL adheres to the belief - "scientific management, independent innovation, coordinating collaboration, and cultural brand" and the enterprise principle - "we are advancing every day".
