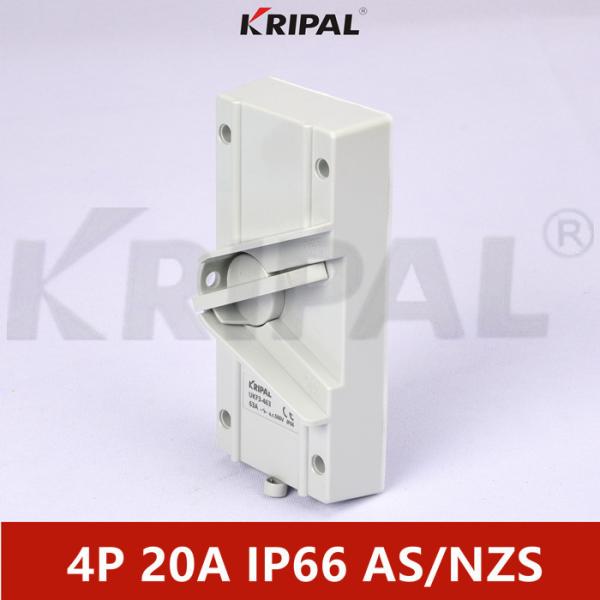

4P 20A 440V Waterproof Isolator Switch Australian standard

Product Description

Isolating switch having a superior waterproof and dustproof waterproof function, can effectively prevent the entry of dust and oil, in case of rain or strong mist will not affect the performance of the product; the same time, it has a corrosion resistance, UV resistance, cold resistance The characteristics of high temperature, anti-aging, etc. can solve your need for safe electricity use in harsh outdoor environments (such as rain, dust, freezing, high temperature, strong ultraviolet rays). Weather-resistant isolation switches have a wide range of applications and are suitable for any outdoor application conditions.

Product Feature

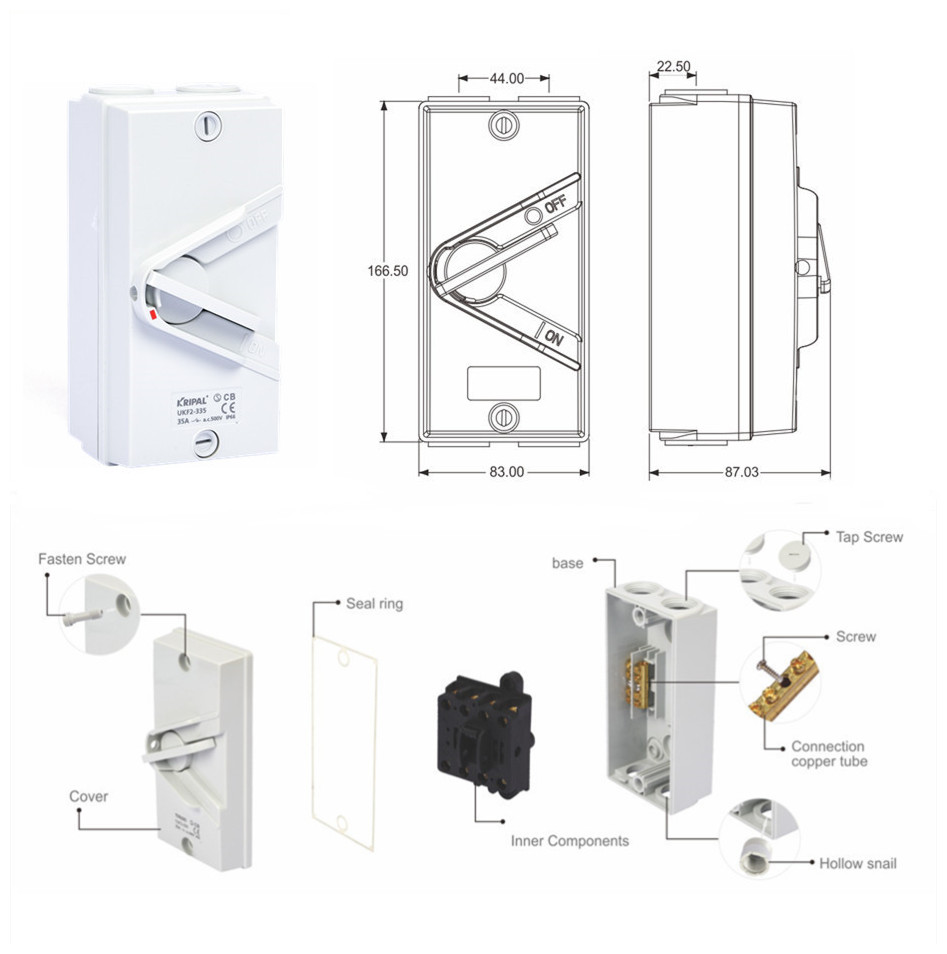

1. UKF series weatherproof isolation switch wide range of applications, suitable for any outdoor application conditions. Including unipolar, bipolar and three-pole switch, current range 20A-63A. Base mounting arrangement provides easier termination and more wiring space. (Switch size is 165 * 82mm, total height 85mm)
2. Install ground and neutral connecting rod with double intensify screw, dial the same cable length and reliable clamping aperture terminal 5-6mm. More secure, installation switches to a metal structure with an insulating cap, insulating cap covering the base mounting screws to prevent their exposure to energized cables.
3. Each device provides a threaded pipe threaded Reducing joint connector box to connect with 25mm or 20mm conduits and screw caps. Screw caps must be installed to ensure IP Rating. For security, a 7mm diameter hole is provided for padlocking the lever in the OFF position. Deep moulded barriers protect the operating lever from physical abuse or accidental switching.

4. All units comply to IEC60947-3. Standard colours are grey & white.

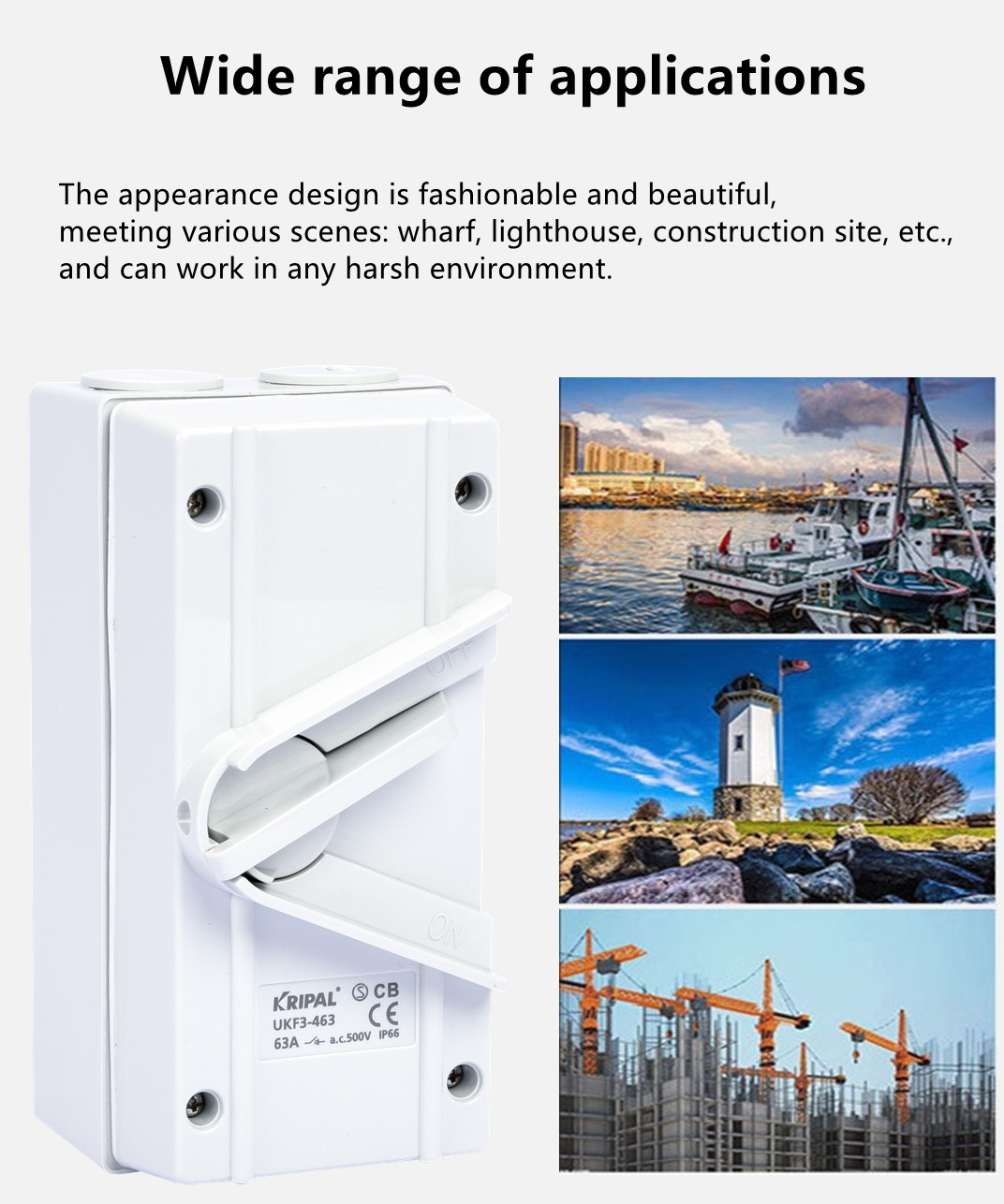

Product Application

Packaging & Delivery

FAQ

Q:Are you factory?

A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two hours to Hangzhou by train, and one hour to Shanghai by air .Also very near to Wenzhou international Airport and Yueqing train station.

Q:How many employees do you have?

A:We have more than 500 employees now,with in-house R&D teem.

Q: What is your sample policy?

A: Sample is available ,but sample should be paied in advance. The cost of sample will be refund after further order.

Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q:Do you offer OEM service?

A:Yes,we have been providing OEM/ODM service to global manufacturers and suppliers for many years.

Our company

Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".

Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Zhejiang Province.

The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.

Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!

Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development.

With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of “Famous Export Brand”.

Kripal now has the factory area 12000 m2 and workers more than 500, including over 10 senior engineers, 30 professional technicists and 30 senior executives. Products pass the certification of CE, CB, UL, VDE, TUV, KEMA, SAA, SEMKO, RoHS, and China CCC as well as quality management system such as ISO9001.

Cooperated with domestic and foreign R&D institutions, Kripal successively developed more than 100 independent intellectual properties; some of them were successfully awarded the national patent for invention and utility models as its well performance. Kripal now has been selected as provincial technical research and development center and patent demonstration enterprise by government.

Kripal always adheres to the enterprise principle of “Scientific management, Independent Innovation, Coordinating Collaboration and Cultural Brand”, keep faith of “moral first”, and fulfill the core value of “double-win cooperation with customers, creating profit for company owners, getting rich together with workers, building harmony for society” and fight for the mission of “make the dream of world famous electrical brand come true”.

Workers: 650 (including workers in Taizhou factory)

Engineers: more than 30

QA/QC: more than 20

Certificate: CQC, CB, CE,VDE,UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: amounts to 25000m2

What we do: products’ design, mold building, production of parts (injection & punching), assembling,
                      products’ inspection, testing and etc

KRIPAL adheres to the belief - "scientific management, independent innovation, coordinating collaboration, and cultural brand" and the enterprise principle - "we are advancing every day".
