28.6 inch Ultra Wide Stretched Bar LCD Monitor Commercial Screen shelf edge display stretched lcd display

Categories Stretched Bar LCD Display
Brand Name: ZXTLCD
Model Number: ZXTLCD-BAR286HMJ
Certification: CE/Rohs/FCC/ERP Energy Label
Place of Origin: China
MOQ: 1
Price: Negotiate
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Delivery Time: 3~5 working days
Packaging Details: Machine body appearance wrapped in pearl carton firstly, packed in carton
Screen size: 28.6 inch
Resolution: 1920(V) X 540(H)
Brightness: 400cd/m2
Contrast ratio: 1200:1
Backlight type: WLED
Active display area: 698.4(H) X 196.43(V)mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

28.6 inch Ultra Wide Stretched Bar LCD Monitor Commercial Screen shelf edge display stretched lcd display

28.6 inch Ultra Wide Stretched Bar LCD Monitor Commercial Screen shelf edge display stretched lcd display


Product Advantage:


1), The stretched LCD display board support the object-based format to provide visitor information with high visibility and intelligibility. The screen video, message, graphics can be displayed in different ways.


2), An advantage of widescreen LCD display units, it can display the temperature weather&date and advertising video, graphics real-time.


3), 7*24*365 hours working.


4), The right message at the right time: Support WIFI, 3G, LAN, Signage Administrator, Mobile App


5), Android Network Digital Signage


The specification
Model NoProduct modelZXTLCD-BAR286HMJ
LCD Screen PanelScreen size28.6" LCD Panel
Active display area698.4(H) X 196.43(V)mm
Resolution1920(V) X 540(H)
Brightness400cd/m2
Contrast ratio1200:1
Display color16.7M
Backlight typeWLED
Viewing angles

89°/89°/89°/89°(U/D/L/R)

Response time8ms
Lifespan50000 hours
Main boardCPURockchip PX30 Quad core ARM Cotex-A35
RAM1G DDR3(1 G/2G for optional )
ROM8G EMMC(8G/16G/32G/64GEMMC for optional)
Memory extensionTF Card extension with the highest support for 64GB
SystemAndroid 8.1
InternetSupport 2.4G WIFI connection
RTC real time clockSupport timing on / off function
Interfaces1xTF card slot
1*micro USB(OTG)
1*Type-c(DC 12V input,Need to match with our company's special adapter for power supply)
External function optional4G module
8Ω1WX1 speaker
Support special requirements customization
machine specificationOperating voltage100-240V(50/60Hz)
Power consumption≤30W

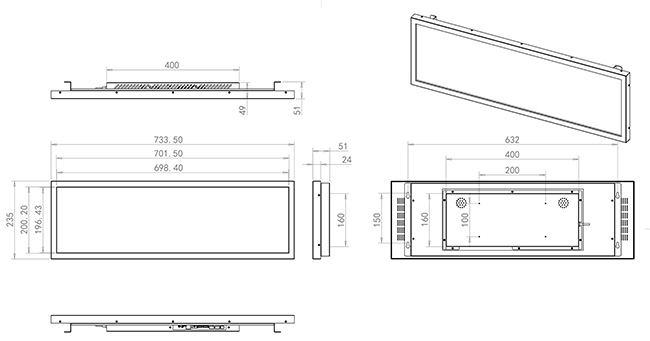

Product size733.5(H)X235(V)X51(D)mm
Installationwall-mounted
Apperance materialMetal shell
Net weight≤4.8KG
Surface treatmentBlack metal paint
EnvironmentalStorage EnvironmentTemperature:-20℃~60℃
Humidity:5%~95%
Atmospheric Pressure:86kPa~104kPa
Working EnvironmentTemperature:0℃~45℃
Humidity:10%~85%
Atmospheric Pressure:86KPa~104KPa
Packing listBar lcd display1pcs
OTG Cable1Pcs(OTG cable,micro USB to USB 2.0)
Adapter1Pcs (12V, 2A)
Support special requirements customization


Trend of New Retail Info Display

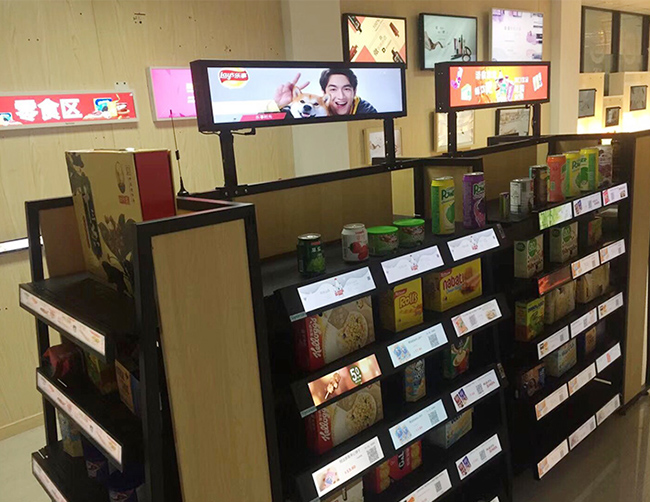

Smart retail uses commercial screen as display terminal to create scene marketing. Through the use of various intelligent means and big data analysis to influence consumers. With the rise of smart retail, commercial display plays an increasingly important role in retail window, interior decoration and other fields.



Traditional shopping malls will display a wide variety of goods for consumers to choose, and consumers will always make goods messy because of touching and fiddling. With the arrival of smart retail, commercial screen has become the catalyst of human- screen interaction, and consumers can complete data matching of goods and virtual try- on of clothes and shoes by touching it lightly.



Supermarkets are full of a whole variety of different products, and you’ll also notice that, as time goes by, prices are constantly changing, deals are being offered, and various promotions also included.



Please send us a inquiry if you want to know much more
