Categories | Stretched Bar LCD Display |
---|---|
Brand Name: | ZXTLCD |
Model Number: | ZXTLCD-BAR350AXCG |
Certification: | CE/Rohs/FCC/ERP Energy Label |
Place of Origin: | China |
MOQ: | 1pcs |
Price: | Negotiate |
Payment Terms: | Western Union, T/T, MoneyGram |
Supply Ability: | 300pcs per month |
Delivery Time: | 3~5 working days |
Packaging Details: | Machine body appearance wrapped in pearl carton firstly, packedin wooden box |
Screen size: | 35 inch |
Active display area: | 878.4(H) X 48.19(V)mm |
Resolution: | 2880(V) X 158(H) |
Brightness: | 400cd/m2 |
Contrast ratio: | 3000:1 |
Display color: | 16.7M |
Backlight type: | LED |
System: | Android 9.0 |
Company Info. |
Shenzhen ZXT LCD Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
35 inch 2880X158 Resolution Stretched lcd shelf display on supermarket shelf
Stretched lcd shelf display is a new concept lcd advertising screen designed for the shelf. Compared with the traditional lcd screen, it can be customized according to the size of the shelf, with high definition, high luminous efficiency and high color saturation and ultra thin for branding or advertising on various shelves as well as price tags and information display on the edge of shelf.
Product Feature :
The specification | ||
Model No | Product model | ZXTLCD-BAR350AXCG |
LCD Screen Panel | Screen size | 35" LCD Panel |
Active display area | 878.4(H) X 48.19(V)mm | |
Resolution | 2880(V) X 158(H) | |
Brightness | 400cd/m2 | |
Contrast ratio | 3000:1 | |
Display color | 16.7M | |
Backlight type | LED | |
Viewing angles | 178(H)/178(V) | |
Response time | 9.5ms | |
Lifespan | >30000 Hrs(24Hrs*7) | |
Main board | CPU | T972 ,Quad core A35 |
RAM | 2gb | |
ROM | 8gb EMMC | |
System | Android 9.0 | |
Network support | 10M/100M Auto-adjust Gigabit Ethernet , WIFI | |
RTC real time clock | Support timing on / off function | |
Interfaces | 1*USB2.0 | |
1*OTG USB | ||
1*RJ45 | ||
Video formats | AVI,H.264 ,MKV,MP4,MPEG etc. | |
Audio formats | MP4,WAV,APE,FLAC,AAC etc. | |
Photo formats | PG, JPEG, BMP, PNG, GIF, | |
machine specification | Operating voltage | DC 12V / 2A |
Power consumption | ≤24W | |
Product size | 891.6(H)X59.6(V)X15.2(D)mm | |
Speaker | no | |
Installation | wall-mounted | |
Appearance material | Metal shell | |
Net weight | ≤1.4KG | |
Appearance color | Black | |
Environmental | Storage Environment | Temperature:-10℃~55℃ |
Humidity:10%~60% Non-Condensing | ||
Working Environment | Temperature:0℃~45℃ | |
Humidity:≤ 90℃ Non-Condensing | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |
Support special requirements customization |

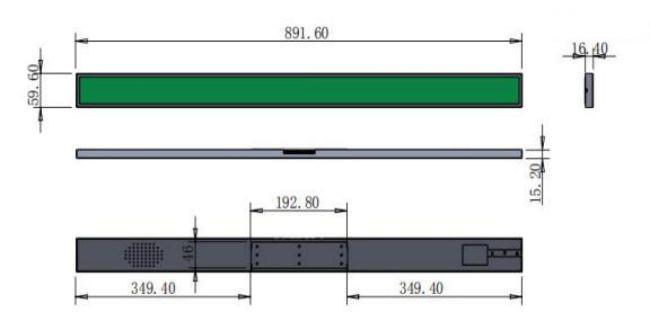

The design drawing as follows :

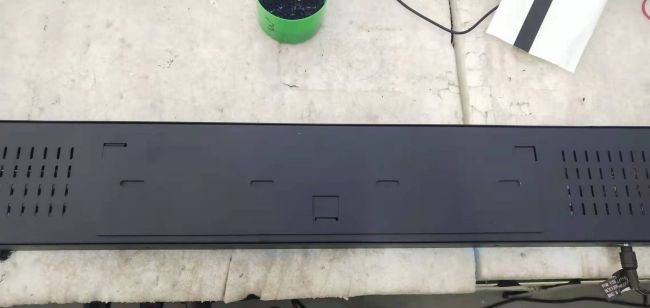

Product physical Photo

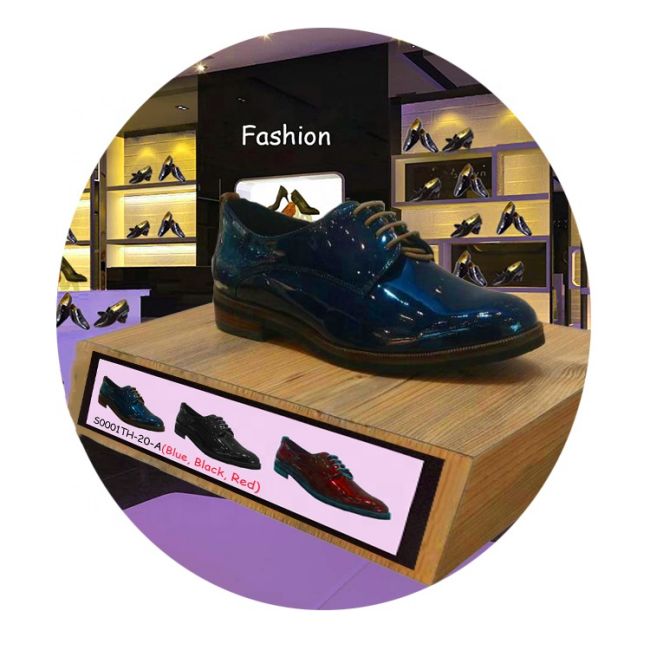

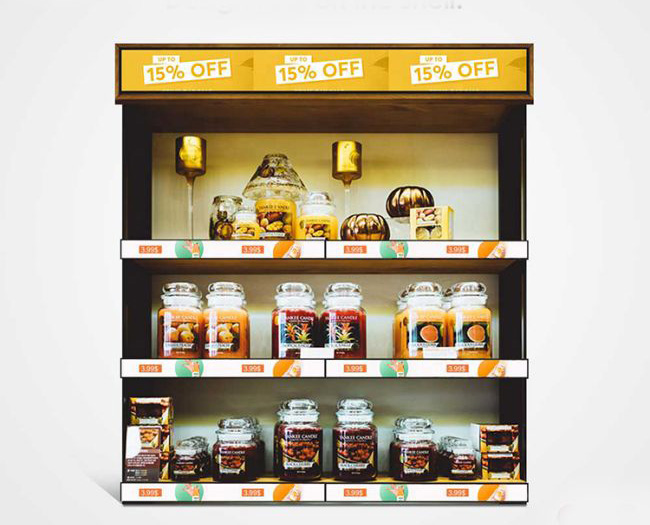

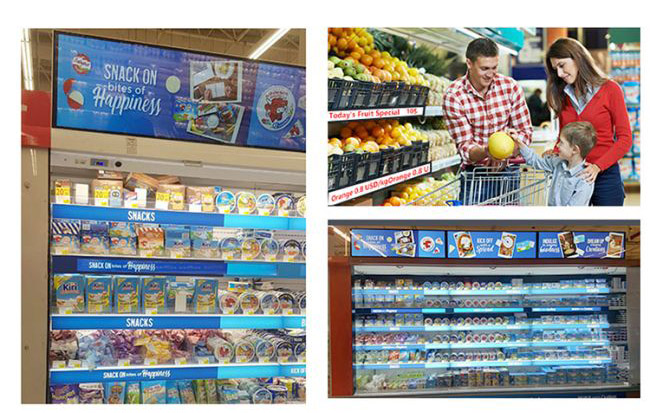

Application :
1) Replacing messy paper labels with digital shelf displays keeps shelves clean and tidy.
2) Showing video ads on the screen is a more effective way to
stimulate buying desire.
3) One stretched screen can gracefully display information and
prices for multiple products.
4) Digital content can be updated via network to save labor and
material costs.
If you would like to discuss your requirement or need any additional information on our Stretched lcd shelf display, and then please do not hesitate to contact our sales team.
![]() |
