| Categories | Small LCD Screens |
|---|---|
| Brand Name: | SUNMEG |
| Model Number: | LX15429LX-29 |
| Certification: | CE,FCC,ROHS |
| Place of Origin: | China |
| MOQ: | 5 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 60K pcs/month |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Standard export package |
| Product name: | Color LCD TFT Displays |
| Interface: | Spi 4-Line |
| LCD Interface: | CPU 8bits/SPI 4W/SPI 3W |
| Specification: | 1.54′′ square tft display |
| Resolution: | 128*128 |
| Brightness: | 350CD/M2 |
| LCD Drive Mode: | TFT LCD Module |
| Active Area(mm): | 25.5*26.5mm |
Smart Home, Payment Terminals, Telecommunication Devices, Security
System Equipments, Automobile Electronics, Medical Equipments,
Household Electrical appliances ,These TFT LCD modules are including options of TFT
panel ,the products have been applied in a wide range of industries including
wearable deivices, energy portable devices.
| Item | LCD panel screen |
| Display Type | TFT |
| LCD Size | 1.5 inch tft lcd module |

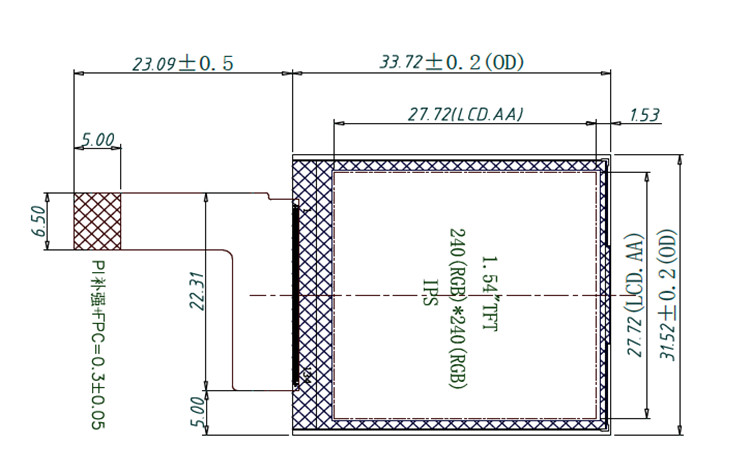

| LCD Outline | 31.5*35*2.1mm |
| Active Area | 27.72*27.72mm |
| Display Mode | Transmissive, 262K color |
| LCD Interface | CPU 8bits/SPI 4W/SPI 3W |
| Driver IC | ST7789V |
| Brightness | 145 cd/m2 (Min) |
| Certification: | RoHS |
FAQ:
Q:The LCD screen can be exported directly? what certification could
provide ?
A:Liquid crystal products comply with the RoHS standard, can be
directly exported.Products by RoHS, CE, SGS certification.
Q: What kind of packaging? The transport process will not be
damaged?
A:Our products are divided into three categories, small size
screens use foam packaging,
small and medium size use knife card isolation packaging, large size screens are used
in aircraft box packaging, all packages are protected by outer box
and strapping to ensure the safety of material transportation.
Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the
minimum purchase quantity
constraint.Mold fee for all kinds of products are not the same, the
general principle is: LCD mold fee category: TN was low,STN was
high.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products
are shipped with 100% inspection.
|
