| Categories | Small LCD Screens |
|---|---|
| Brand Name: | OEM |
| Model Number: | LX22005LX-05 |
| Certification: | CE,FCC,ROHS |
| Place of Origin: | China |
| MOQ: | 5pcs |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 60Kpcs/month |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Standard export package |
| Type: | TFT |
| Resolution: | 176*220 |
| Size: | 2.2inch |
| Interface: | MCU/RGB |
| Working Voltage: | 3.3Volt |
| Application: | Industrial , Consumer |
| Connector: | FPC |
| Brightness: | 330 Cd/m2 |
| Active Area: | 41.70*56.16mm |

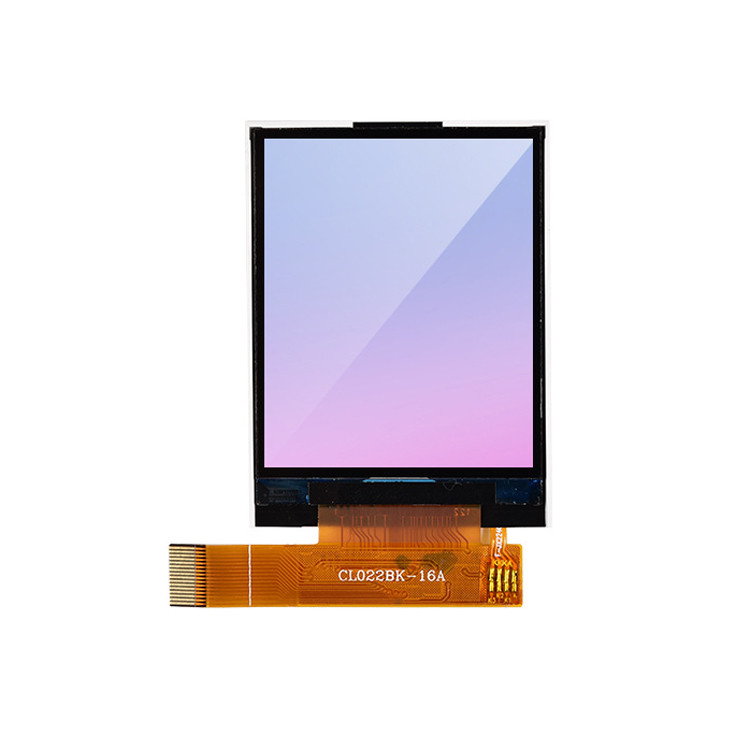

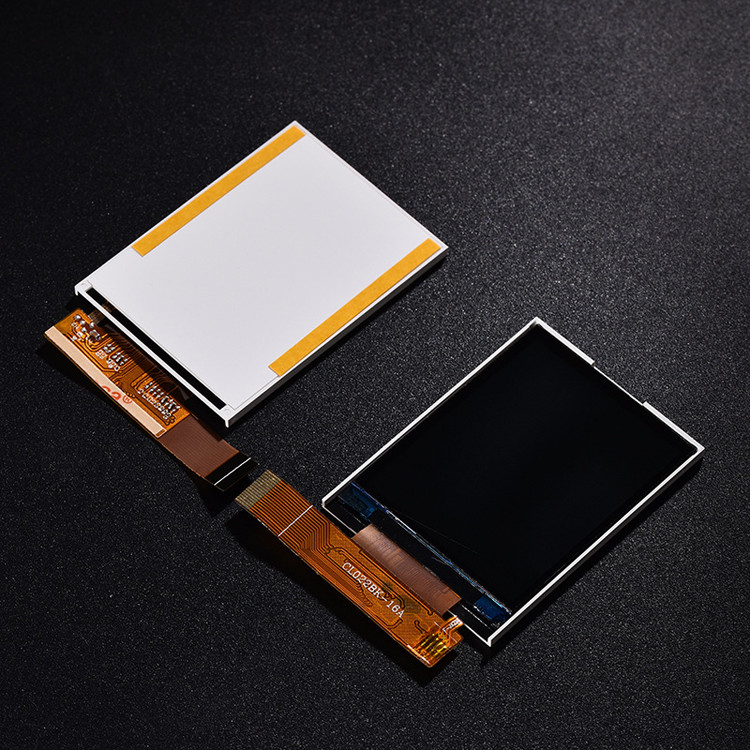

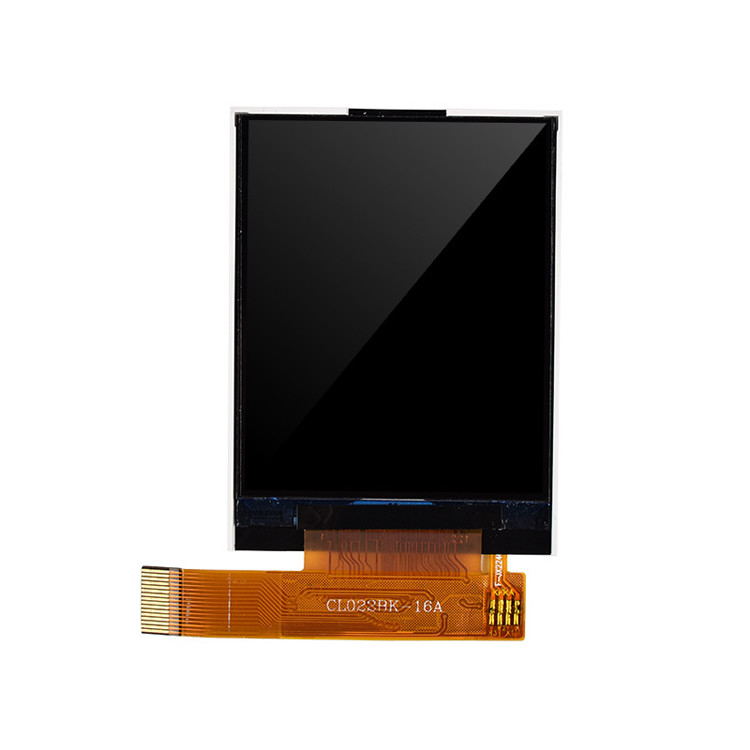

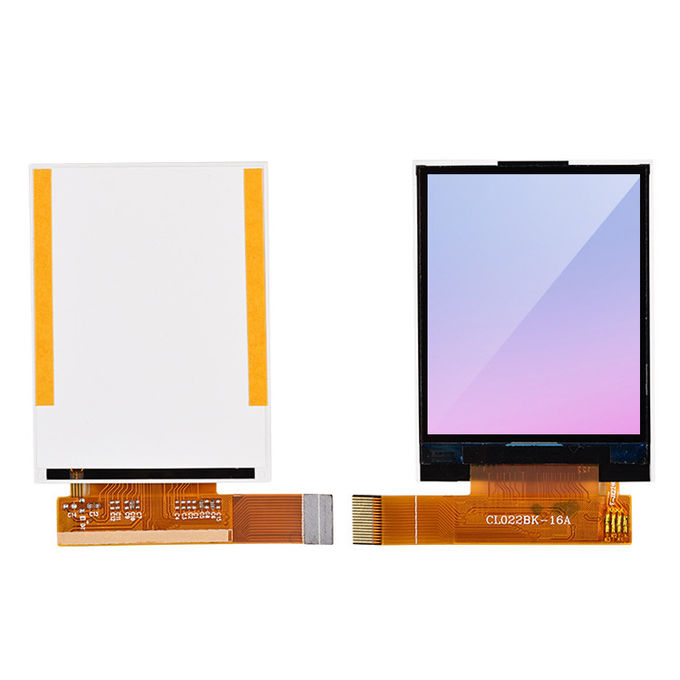

2.2 inch customized 176x220 tft lcd display MCU display panel 2.2 inch tft lcd module
| 1 | LCD Type | TFT LCD module panel |
| 2 | Dot Arrangement | 176x(R.G.B)x220 |
| 3 | Active Area | 41.70*56.16mm |
| 4 | Interface | CPU 8/16 Bits |
| 5 | Driver IC | ST7789 |
| 6 | FPC Type | Soldering Type |
| 7 | Viewing Angle | 6 O'Clock |
| 8 | Operation Temp | -20~+70C |
| 9 | Touch panel | Option of resistive touch panel |
|
