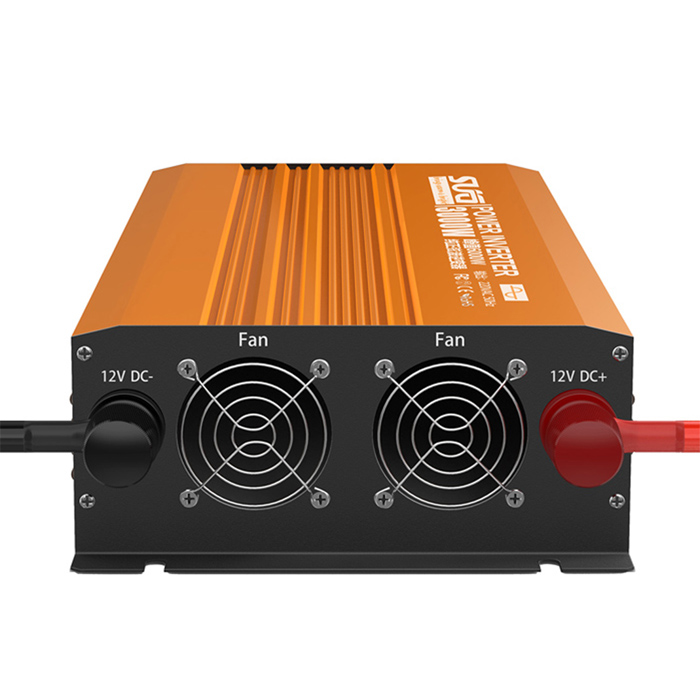

Off Grid Pure Sine Wave 96V Solar Inverter For Home

Off Grid Pure Sine Wave 96V Solar Inverter For Home

Introduction of the Inverter:

It is our newly designed model, owns LED Intelligent digital display and remote Switch

it provides household power on the go!

It converts battery power DC 12V/24V/48VDC to AC 100/110/120/220/230/240V household power.

Its rated power is 3000w and peak power is 6000w

Original brand IGBT and MOSFET, we use famous original brand like IR, FAIRCHILD, ON&SLKOR only

We own CE and ROHS certificates for EU, FCC and ETL certificates for USA and PSE certificates for Japan.

FAQ:

1.Are there any appliances that cannot be run on an inverter?

In general you can connect almost any appliance to an inverter, with a few practical exceptions. Although the inverter can easily supply a heavy load like an electric heater, the battery capacity is often too low to maintain the supply for any longer duration of time. The same applies to air conditioning units. As long as the battery capacity is high enough, you can use a high rating inverter to run a washing machine, a large single cooking element or a small two-ring electric cooker.

2.What rating inverter should I buy?

Determine Continuous Load and Starting (Peak) Load: You need to determine how much power your tool or appliance (or combination of them that you would use at the same time) requires to start up (starting load), and also the continued running requirements (continuous load).

What is meant by the terms "continuous-2000 watts" and "peak surge-4000 watts" is that some appliances or tools, such as ones with a motor, require an initial surge of power to start up ("starting load" or "peak load"). Once started, the tool or appliance requires less power to continue to operate ("continuous load")

Helpful formulas:
To Convert AMPS to WATTS:
Multiply: AMPS * AC (voltage) * η (efficiency of Inverter) = WATTS
This formula yields a close approximation of the continuous load of the appliance
To calculate approximate Startup Load:
Multiply: WATTS * 2 = Starting Load
This formula yields a close approximation of the starting load of the appliance, though some may require an even greater starting load.

NOTE: Induction motors such as air conditioners, refrigerators, freezers and pumps may have a start up surge of 3 to 7 times the continuous rating.

Most often the start up load of the appliance or power tool determines whether an inverter has the capability to power it.

Products Specification:

125th Canton Fair In Guangzhou

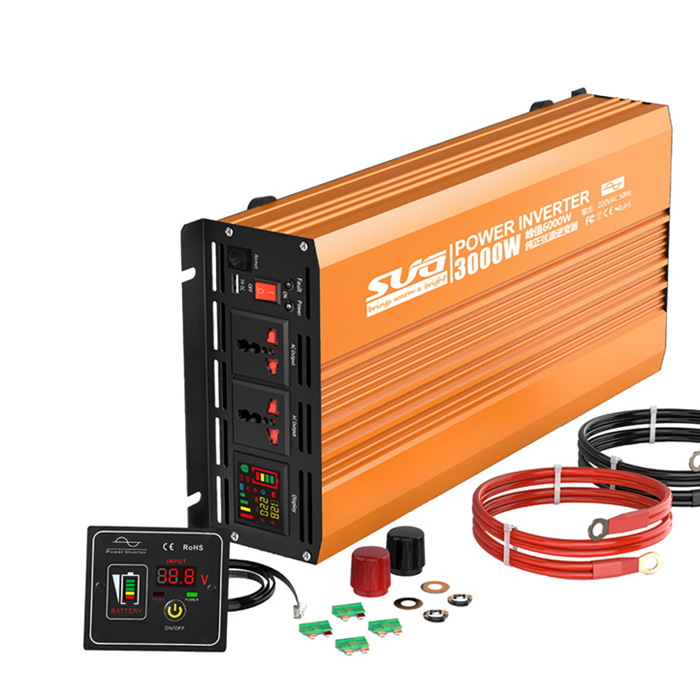

Products Display:

About - SUG New Energy Co., Ltd

SUG(shanggao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and has gained various of certificate worldwide, such as FCC & ETL for North America, CE & ROHS for Europe, PSE for Japan.

SUG New Energy Co., Ltd specialize in manufacturing high performance power inverter like Pure Sine Wave Inverter, Modified Sine Wave Inverter, Mini Car Inverter, PV On-grid Inverter, Solar Controller, Solar Lighting, Solar System, UPS, Transformer and related accessories. To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was located in Beijing in 2011, now we have established PCB & electronic research center and advanced testing lab.

SUG is growing fast through years' great effort, now we have become one of the leading inverter manufacturer in China. We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.
