Universal Outlet AC120V PV Power Inverter For Household

Categories	PV Power Inverter
Brand Name:	SUG
Model Number:	SGPR-600W
Certification:	CE & ROHS & FCC & PSE
Place of Origin:	China
MOQ:	1pcs
Price:	56＄-64＄
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8000pcs/month
Delivery Time:	Sample: 1-2days Bulk Order: 10-15days
Packaging Details:	Carton
Model:	SGPR-600W
Rated Power:	600W
Surge Power:	1200W
Input Voltage:	12/24/48V(provide input voltage customization)
Output Voltage:	100/110/120/220/230VAC(provide output voltage customization)
Output Frequency:	50HZ or 60HZ
Output Waveform:	Pure Sine Wave
Product Size:	20.2158cm
Meas:	633438.5cm/10pcs
N.W./Unit(kg):	2kg
G.W./Ctn(kg):	24kg
Warranty:	2 years(start when you sell to your customer)
Socket:	USA, EU, UK, Japan, Australia, Universal, Brazil and so on
Type:	DC to AC

Contact Now

Add to Cart

Company Info.

SUG NEW ENERGY CO., LTD

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

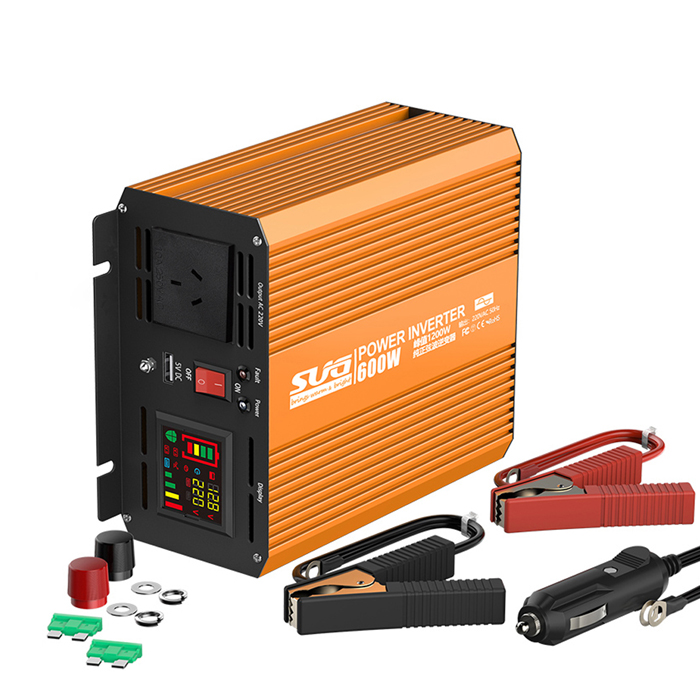

Universal Outlet AC120V PV Power Inverter For Household

Description of the products:

Its rated power is 600w and peak power is 1200w(continuous for several seconds)

and with sufficient power and high quality.

We have our own factory and can promise the quality.

We also provide OEM and ODM service, including the input voltage, output voltage, lable and so on.

It is with 8 safety protection, reverse connection protection, surge power protection, over-temperature protection,

low voltage protection, over load protection, short circuit protection, over current protection, over voltage protection.

It is with intelligent control fans, the fan works when the temperature reaches 45℃ and it will stop working when the temperature reduce.

Products Specification:

Model	SGPR600-121	SGPR600-122	SGPR600-241	SGPR600-242	SGPR600-481	SGPR600-482
Rated Power	600W
Surge Power	1200W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 0.5A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	20.2158cm (L×W×H)
Meas./Ctn	633438.5cm / 10pcs
N.W./Unit	2.0KG
G.W./Ctn	24KGS
Packing	box
Warranty	2 Years

Products Display:

Guangzhou International Solar PV Exhibition:
