5L Lab Glass Reactor

Categories Lab Glass Reactor
Place of Origin: Henan, China
Brand Name: Lanphan
Certification: CE ISO
Supply Ability: 3000 Set/Sets per Month
Packaging Details: Packing of 5L Science Glass Reactor: carton or wooden case package, customized package is available.
MOQ: 1 - 2 Units
Price: $1,005.00
Condition: New
Automatic Grade: Automatic
Type: Reaction Kettle, double jacketed vessel
Voltage: 220V/50Hz
Power(W): 90W
Dimension(L*W*H): 350*410*1250mm
Weight: 38KG
Warranty: One Year
After-sales Service Provided: Overseas third-party support available, Video technical support, Online support
Reactor capacity: 5L
Vacuum degree: 0.098Mpa
Glass material: GG-17
Main support: Stainless Steel
Interlayer volume: 0.8L
Number of reactor bottle: 5
Stirring speed: 0-800rpm
Port: Shanghai, Tianjin, Qingdao
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

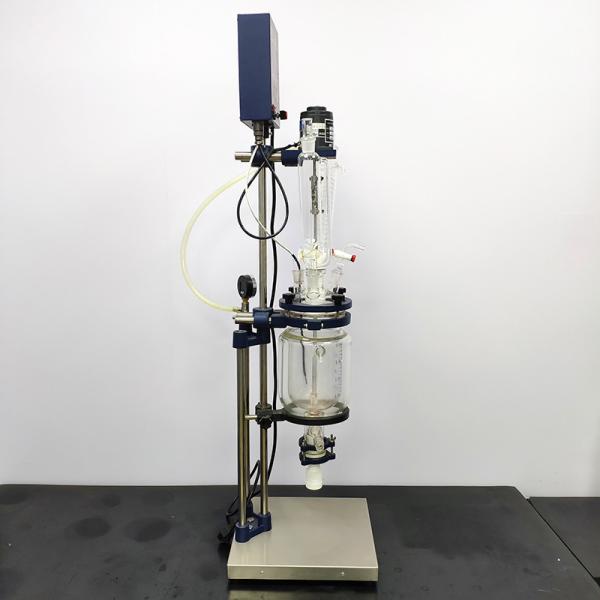

5L Lab Glass Reactor

TypeS212-5L
Glass materialGG-17
Frame materialStainless Steel
Pipe fitting material304 Stainless Steel
Move methodUniversal castors with braking
Number of reactor bottle6
Discharge outlet liftoff height450mm
Reactor reaction temperature-80-250 degree
Vacuum degree0.098Mpa
Stirring speed0-450rpm
Stirring diameter of axis12mm
Stirring power90W
Voltage/Frequency(V/Hz)220V/50Hz
Boundary dimension (mm*mm*mm)520*520*2000
Package Dimension(mm*mm*mm)1370*590*800 0.65m³
Package weight(KG)68

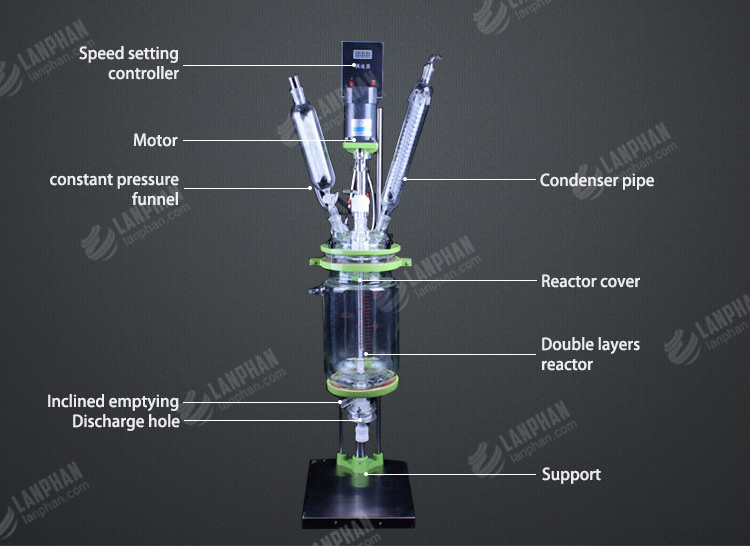

The glass reactor is generally used in the modern fine chemicals, biopharmaceuticals, scientific research experiments and other industries, especially applicable for the cannabis extraction process. It can be used together with a vacuum pump, a chiller and a water or oil bath to form a complete vacuum constant temperature experimental environment. The glass reactor has a great number of advantages, as follows.

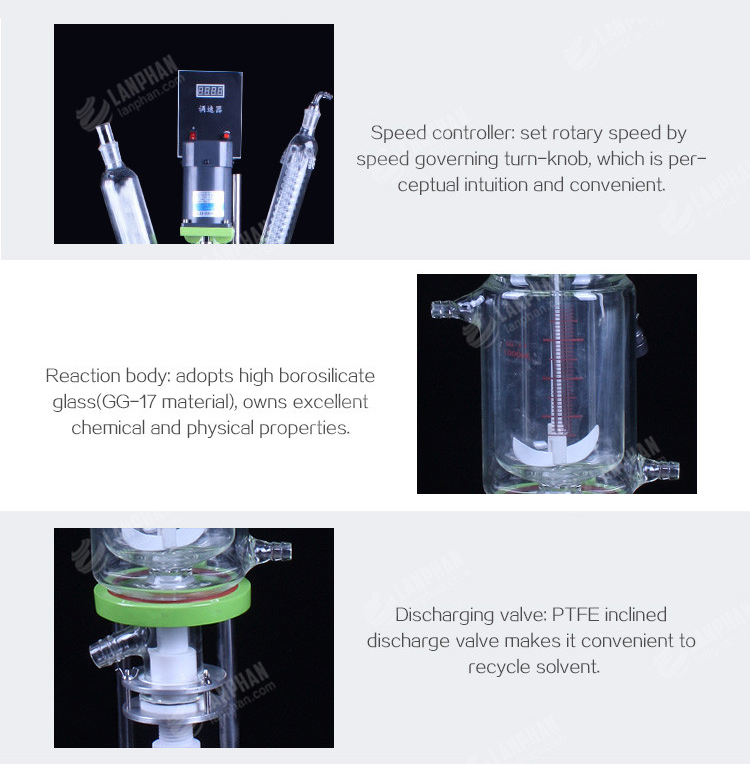

1. The reactor body adopts high borosilicate glass(GG-17 material), possessing excellent chemical and physical properties. And the transparent flask makes it easy to observe the reaction liquid material.

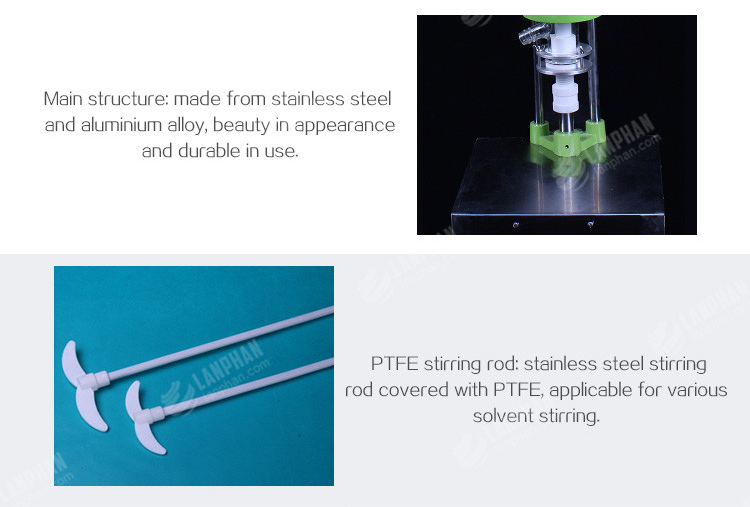

2. The stainless steel stirring rod is covered with PTFE, applicable for various solvent stirring without corrosion and pollution.


3. Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force, no spark and long service life.


4. Sealed by PTFE component and fluorous rubber, it is able to maintain higher vacuum degree and longer service life.


5. This equipment has speed controller, and it can set rotary speed by speed governing turn-knob, which is perceptual intuition and convenient.


6. This equipment has vacuum display function, meaning that the best working vacuum degree for low boiling point material can be selected.


7. The PTFE inclined discharge valve makes it so convenient to recycle solvent.
