Lab Glass Reactor Solvothermal Kettle Chemical Reaction Double Layer

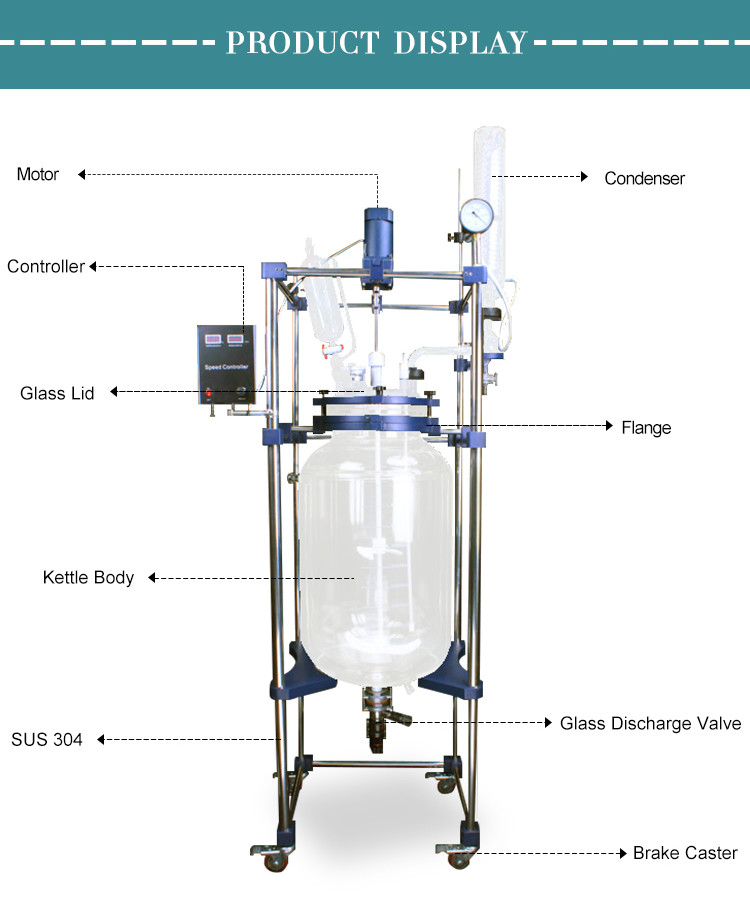

Description of Glass Reactor

Double-layer glass reactor is designed for the double glazing that enters the inner layer of the reaction for stirring reaction.The sandwich can transfer various cold and hot sources (frozen liquid, hot water or hot oil) for cyclic heating or cooling reaction.

Isothermal conditions can be set in the sealed glass reactor as required. Under normal pressure or negative pressure, the reaction solution of stirring, reflux and distillation is used for modern fine chemical engineering, biological pharmaceutical test, production equipment and ideal synthesis of new materials.

Our company's reactor has a series of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L and 150L, which integrates the advantages of similar domestic products, customers’ suggestions and experience.

Feature of Glass Reactor

1. Adopting Teflon composite seal, which can maintain a high degree of vacuum.
2. Efficient condenser to ensure high recovery.
3. The full set of GG3.3 high borosilicate glass, which has a good chemical and physical performance.

4. Hot oil passes through the loop at the interface between glass layers at high temperature.

5. The reaction can be carried out at low temperature through the coolant.

6. It can also be connected to tap water, which allows rapid heat loss.

7. Dispersing material flange mouth and Teflon valve makes the container has no dead angle, which is convenient for the discharge of solid materials.

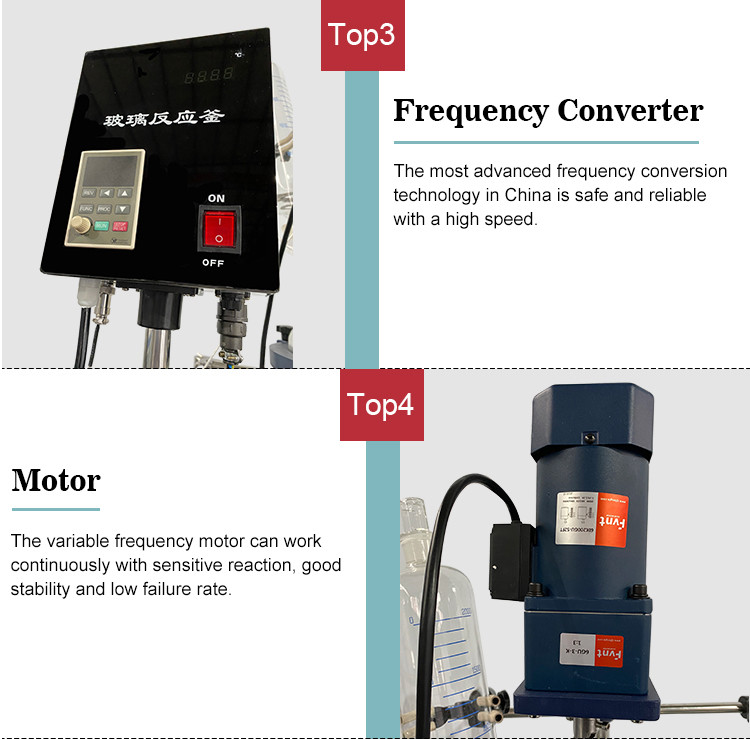

8. The mixing motor adopts digital frequency conversion control and is equipped with a torque.

9. Reasonable structure and material stress.The mechanical parts consist of stain- less steel and aluminum parts.

10. The glass is suitable for various high temperature and high chemical properties of borosilicate glass.

11. Electronic components: the main components are imported components.

Installation of Glass Reactor

Install fixed kettle cover card, increase stir bar depth.

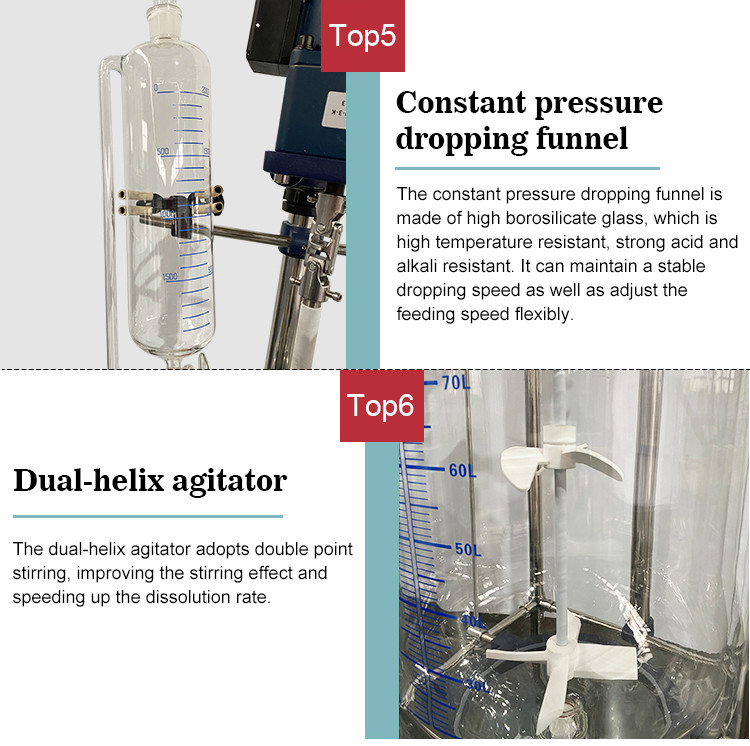

The whole screw and the card are fixed tightly, and the condenser and the constant pressure funnel stainless steel support rod are installed.

The reflux condensation bracket is installed on the condenser with the reflux pipe installed on the kettle cover.The constant pressure funnel cover is installed in the kettle, the thermometer sleeve and the glass vent valve are installed.

Digital converter installation location.

Parameter of Glass Reactor
