140*450*140mm Vacuum Helium Leak Test System For Power Relays

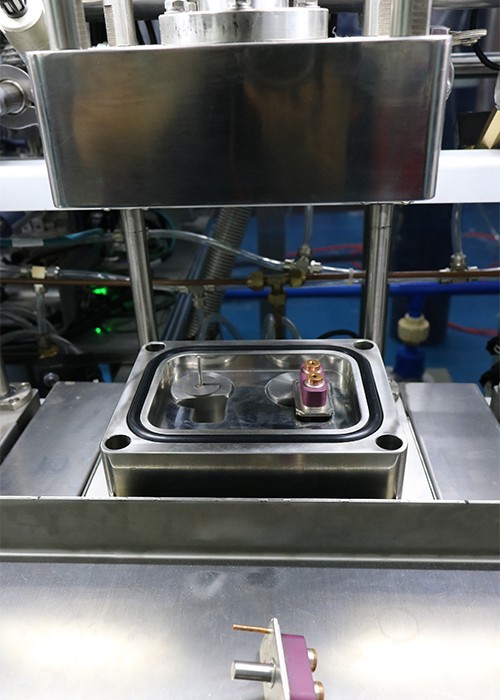

Vacuum Helium Leak Test System for Power Relays With 3 Vacuum Chambers

Basic Functions:

Operator inserts copper tube of the product into the fixture hole and presses the start button, the functions of closing the chamber, vacuuming the chamber, vacuuming the product, filling the product, vacuum leak detection, and venting the chamber can be automatically finished.

Special Sealing Fixture:

Adopts a special sealing structure design, which can solve the connection and sealing problem between the workpiece and the system. The sealing performance can reach leakage ≤1×10-9Pa.M3/s, which ensures that the helium gas detected during the leak detection process is possible from the workpiece. Leak Testing Equipment

Background Cleaning Technology:

HJ AUTO's patented helium background noise cleaning technology can effectively remove the helium background noise of the vacuum chamber system, provide a clean and stable reference background environment for the system, and avoid the system's radon background noise level to excessively affect the stability of the system operation, and improve the operating efficiency of the system.

Specification:

Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern enterprise specialized in R & D, manufacturing and sales of technology intensive industrial equipment. Its main products include laboratory testing equipment and production line detection system, which are widely applied to refrigeration, automotive, electric power industries, military, home appliances and other industries.

The company is led by Mr. Li Jianhe, an expert with profound knowledge in vacuum and automatic testing equipment. The company has its own core technology and a number of invention and utility model patents. Relying on a high-level talent team, the company adopts a new production mode focusing on development and design, assembly and debugging and after-sales service, and launches products suitable for its use and technical requirements according to different situations of customers. Since its establishment, the company has launched various types of special equipment to the market. While meeting the domestic market demand, the equipment is also exported to the Americas, Europe, Asia and Africa and other countries and regions. The pursuit of excellence and respect is the business philosophy and the highest guiding principle of the company's operation and management.

Our business goal is to rely on our technology to provide customers with excellent products and services. We will promote core competitiveness, create high performance, and build into the world's top brand in the field of automation and control.
