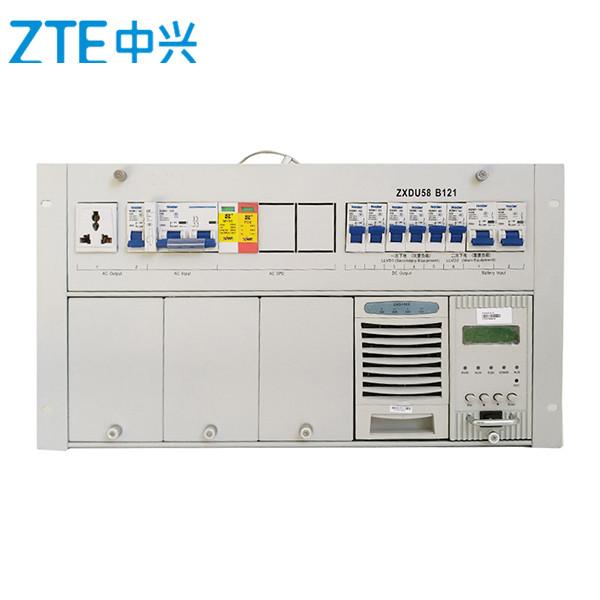

ZXDU58 B121 High Frequency Switch Mode DC ZTE Power Supply

ZXDU58 B121 High Frequency Switch Mode DC Power Supply System ZTE

Key Features

* LVD protection, extending battery backup time of the important loads
* Provides AC auxiliary output
* Intelligent air cooling with low noise
* Supervision mode, RS232/RS485/Dry contact
* Hot-swap rectifier modules
* Front access design for easy installation and maintenance

Applications

GSM/CDMA mobile station
Microwave repeat station
Satellite BTS station
Transmission equipment
Ground satellite transceiver stations
Other small/middle capacity situation
Requiring reliable –48V power supply

System technical feature

Parameters	Description
AC input
Rated input voltage	220Vac single-phase
Rated input voltage	380Vac three-phase (optional)
Input voltage range (phase to neutral)	80 ~ 300Vac (45~66Hz)
Efficiency (rated input, full load)	≥90%
Power factor (rated input, full load)	≥0.99
DC output
Output voltage range	(-42 to -58)Vdc, adjustable
Output current (full configuration)	120A (full load at >154Vac)
Output breaker	Max.output 6 breakers(6-63A)
Battery input	2*100A breakers
Protection	OCP, OVP, UVP, OTP
Safety standard	IEC60950-1
Environment requirement
Operating temperature	(-5 to +50)℃
Storage temperature	(-40 to +70)℃
Relative humidity	10% to 90%RH
Dimensions and weight	396.1 mm x 482.6 mm x 350 mm (Hx W x D), 38.1kg

Rectifier Technical Feature

Parameters		Description
AC input	Input mode	Single-phase/3-wires (L/N/PE)
	Input voltage	Rated voltage: 220Vac; Fluctuation range: 80Vac ~ 300Vac
	Input frequency	Rated frequency: 50Hz; Fluctuation range: 45Hz ~ 66Hz
	Input current( maximum)	10A
	Efficiency	≥90%
	Input power factor	≥0.99
DC output	Output power	Rated output: 1500W ; Max. output: 1915W
DC output	Output voltage	Rated output: 48Vdc ; Adjustable range: 42Vdc~58Vdc
Mechanical specification	Dimensions	134mmx87mmx290mm(H x W x D)
Mechanical specification	Weight	3.5kg
Applicable standards	Electrical safety	IEC 60950-1
Applicable standards	EMC	ETSI EN300 EN 61000-6-1(immunity,light industry) EN 61000-6-2 (immunity, industry) EN 61000-6-3(emission,light industry) EN 61000-6-4(immunity, industry)

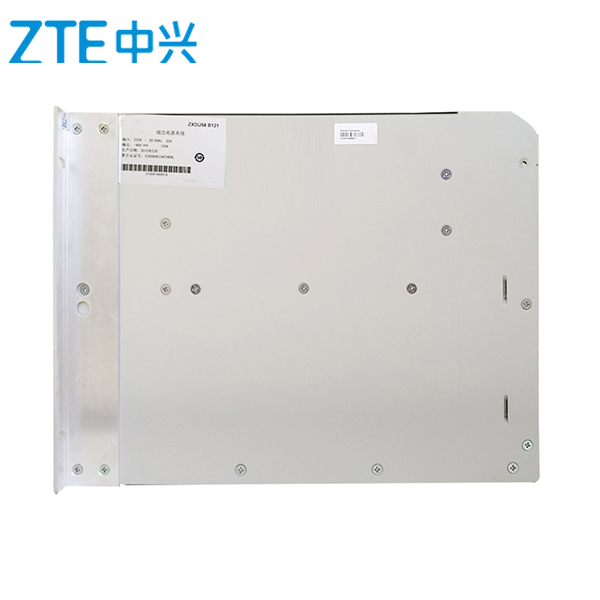

ZTE ZXDU58 B121 Power System4

Product Tags:

ZXDU58 B121

High Frequency Zte Power Supply

ZXDU58 B121 High Frequency Switch Mode DC ZTE Power Supply

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	5G Network Equipment
Brand Name:	ZTE
Model Number:	ZXDU58 B121
Certification:	CE, RoHS
Place of Origin:	China
MOQ:	1 set
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	1000 sets/month
Delivery Time:	within 10 days of payment
Packaging Details:	carton box
Battery input:	2*100A breakers
Protection:	OCP, OVP, UVP, OTP
Input voltage:	80~300Vac (45~66Hz)
Output voltage:	(-42 to -58)Vdc, adjustable
Efficiency:	≥90% (rated input, full load)
Power factor:	≥0.99(rated input, full load)
