| Categories | 5G Network Equipment |
|---|---|
| Brand Name: | HUAWEI |
| Model Number: | ETP48200-C5B6 |
| Certification: | CE, RoHS |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets/month |
| Delivery Time: | within 10 days of payment |
| Packaging Details: | carton box |
| Max capacity: | 12 kW |
| IP grade: | IP20 |
| Cooling mode: | Natural cooling |
| SPD: | 0/40 kA, 8/20 μs |
| Weight: | ≤20 kg(non-rectifier) |
| Rated power: | 3000 W (176–300 Vac) |

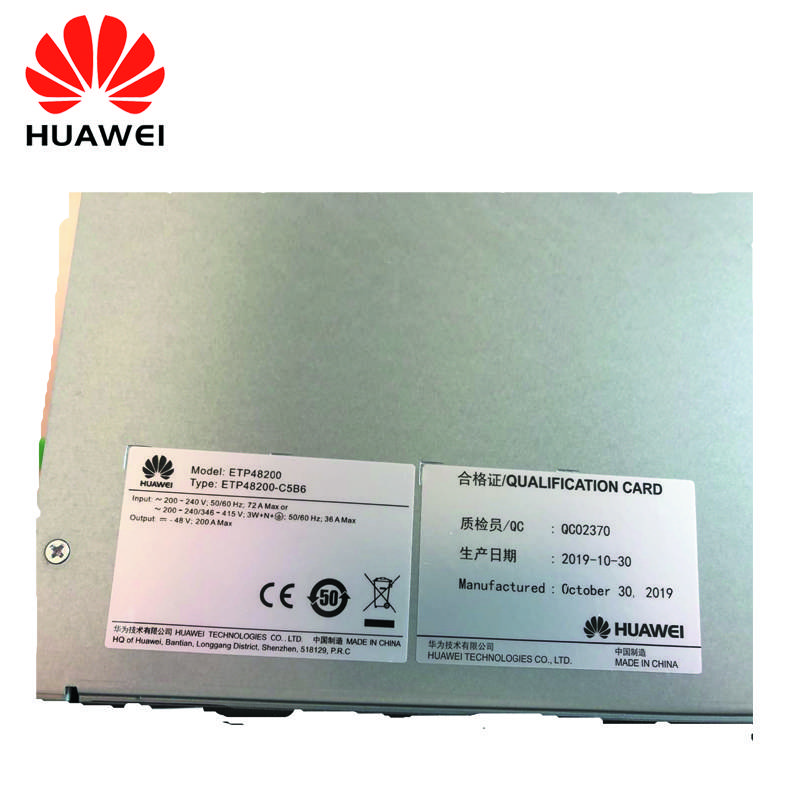

Huawei embedded -48V DC power system for 19inch 23 inch cabinet 200A 12W max 4 rectifiers R4850G R4850N slots
Introduction
ETP48200-C5B6 is an AC/DC 48V embedded power system that can be installed in standard 19 or 23 inch cabinet.,maximum match 4 pcs 48V 50A rectifier, max current 200A.
Each functional unit adopts standardized size design, supports hot swap, The system can adapt to a wide range of AC input, using intelligent battery management, remote monitoring and other functions.
Features
1 1U rectifier module:high density(42.7W/inch3), high efficiency(>96%),reliable output at high temeperature(below 55℃ without derating)
2 Power supply wide working temperaute:-40～+65℃
3 The module support hot swapping,easy maintance
4 Compact structure,saving space and installation cost.
5 Perfect sleep module function, further improve system efficiency.
6 Intellgient battery management and battery protection to extend battery life.
7 Support enviroment monitoring,can realize remote management through dry contact, RS485 or RS232 .
Application:
Wireless base station
Transport network
Enterprise communication network
Specificaiton
| Type | ETP48200-C5B6 | |
| System | Size(W × D × H) | 482.6 mm × 330 mm × 219.5 mm |
| Weight | ≤ 20 kg(non-rectifier ) | |
| Cooling mode | Natural cooling | |
| Installation mode | 19 inch or 23 inch relay rack or embedded cabinet | |
| Cabling mode | Top in Top out | |
| Maintenance mode | Front maintenance | |
| IP grade | IP20 | |
| AC distribution | Input mode | 220/380 Vac 3 phase ,compatible 220 Vac single phase |
| Input voltage | 85–300 Vac,Rated voltage:220 Vac | |
| Frequency | 45–66 Hz,Rated efficiency:50/60 Hz | |
| Battery breakers | 1 × 63 A/3P | |
| SPD | 20/40 kA,8/20 μs | |
| AC output | - | |
| DC distribution | Output voltage | 42–58 Vdc,Rated:53.5 Vdc |
| Max capacity | 12 kW | |
| Battery breakers | 2 × 125 A/1P | |
| Load breakers | 1 × 80 A/1P,6 × 32 A/1P | |
| Batery breakers | 1 × 80 A/1P,2 × 32 A/1P,1 × 10 A/1P | |
| SPD | 10/20 kA,8/20 μs | |
| Rectifier module | Type | R4850G2 |
| Rated power | 3000 W (176–300 Vac) | |
| Dimension(W× D× H) | 105 mm × 281 mm × 40.8 mm | |
| Efficiency | > 96% | |
| Controller | Type | SMU06C1 |
| Communication port | RS232, RS485 | |
| Enviroment | Operating temperature | –40℃ ~ +65℃ (Between 3000~4000 meters,derating1℃ at per 200 meters ) |
| Storage temperature | –40% ~ +70% | |
| Humidity | 5% – 95%(non-condensing) | |
| Altitude | 0 – 4000 m | |
|
