Brand Name: | ZHENHENG |
Model Number: | JZM1000 Drum mobile concrete batching plant |
Certification: | SGS, ISO, BV, CE |
Place of Origin: | HENAN CHINA |
MOQ: | 1 set |
Price: | Negotiation |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 30 sets per month |
Delivery Time: | 7-15 working days after confirm order |
Packaging Details: | Export standard container: 20GP or 40GP, 40HC |
Machine Type: | Drum Mobile Concrete Batching Plant |
Power Type: | Electric |
Max. Aggregate: | 80/60mm |
Warranty: | 1 year |
After-sales service provided: | Engineers available to service machinery overseas |
Product name: | Mobile Concrete Batching Plant |
Color: | Customer Required |
Application: | Building Works |
Electric 50m3 / H JZM1000 Drum Mobile Concrete Batching Plant For Building Works
Product Description Electric 50m3 / H JZM1000 Drum Mobile Concrete Batching Plant For Building Works
YHZG Series mobile concrete batching plant is a new type mixing
plant adapt to the fast installation and movement. It is designed
and manufactured by our factory based on the practical construction
projects. The whole design is with convenient installation, stable
and reliable operation convenient transportation. These advantages
make it the ideal equipment in the road construction,bridge
construction and other long-distance production and transportation
.
Zhenheng YHZG Series mobile concrete batching plant with drum mixer, which is self-falling type bipyramid reversed discharging concrete mixing machine.
Aggregate batching and transferring is automatic and precise;
Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
The whole plant chassis can be moved easily, don't need to be separated and assembled;
This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.
The main features of Electric 50m3 / H JZM1000 Drum Mobile Concrete Batching Plant For Building Works:
A: The overall layout
Modular design,easy to disassemble.
B: structure characteristics
Unique water supply lines, automatic water supply system, reduced
water time and increased production efficiency by 20 %
C: Traction mode
Trailer traction, easy to move and walk.
D: Control System
One-button start mode, simple operation, stable and reliable
performance.
Main Technical Parameters
Technical Parameters of Electric 50m3 / H JZM1000 Drum Mobile Concrete Batching Plant For Building Works
Model | JZM500-2 | JZM750-2 | JZM1000-2 | JZM1500-2 | |
Theory capacity | 25m³/h | 35m³/h | 50m³/h | 75m³/h | |
Discharging height | 1600mm | 1600mm | 1600mm | 1600mm | |
Total power | 44kw | 50kw | 58.9kw | 66.9kw | |
Dimension(L * W * H) | 8 X 2.2m X3.8m | 8m X 2.2m X3.8m | 10m X 2.3m X4.2m | 12m X 2.3m X 4.2m | |
Mixing System | Model of Mixer | JZM500 | JZM750 | JZM1000 | JZM1500 |
Mixing motor | 2*5.5kw | 2*7.5kw | 2*11kw | 2*15kw | |
Discharging volume | 500L | 750L | 1000L | 1500L | |
Aggregate System | Model of Batcher | PLD800-2 | PLD1200-2 | PLD1200-2 | PLD1600-2 |
Aggregate bin volume | 5m³×2 | 6m³×2 | 7m³×2 | 8m³×2 | |
Max. Aggregate Dia | 60/80mm | 60/80mm | 60/80mm | 60/80mm | |
Measurement System | Cement weighing hopper | 500KG | 500KG | 560KG | 900KG |
Water weighing support | 220KG | 220KG | 220KG | 330KG | |
Additive weighing support | 30KG | 30KG | 30KG | 40KG | |
Trailer Speed | 40-60Km/h | 40-60Km/h | 40-60Km/h | 40-60Km/h | |
Optional cement silo | 50/100T | 50/100T | 50/100T | 50/100T |

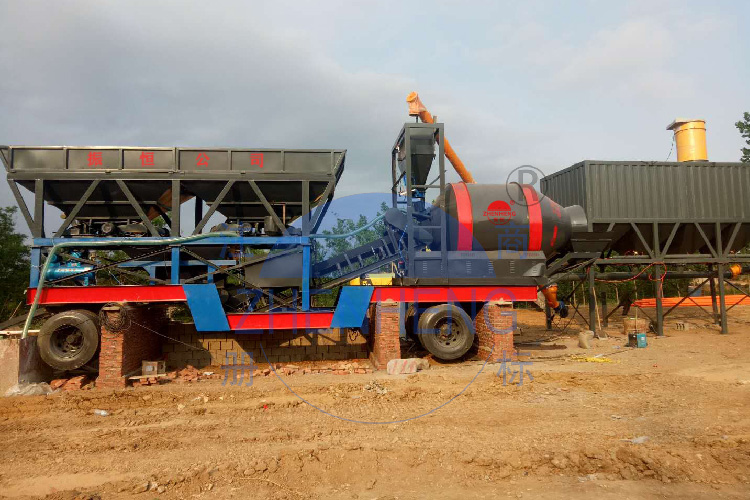

Reference Photos of Electric 50m3 / H JZM1000 Drum Mobile Concrete Batching Plant For Building Works
![]() |
