Industrial YHZS25 Mobile Concrete Mixer Machine , 25m3 / H Onsite Concrete Mixer

Categories Mobile Concrete Batching Plant
Brand Name: ZHENHENG
Model Number: YHZS25 Mobile concrete batching plant
Certification: SGS, ISO, BV, CE
Place of Origin: HENAN CHINA
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month
Delivery Time: 7-15 working days after confirm order
Packaging Details: Export standard container: 20GP or 40GP, 40HC
Discharging Height: 3800mm
Mixing motor: 18.5kw
Discharging volume: 500L
Aggregate bin volume: 2x5m3
Cement weighing hopper: 300kg
Water weighing support: 120kg
Additive weighing support: 20kg
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial YHZS25 Mobile Concrete Mixer Machine , 25m3 / H Onsite Concrete Mixer

Industrial YHZS25 Mobile Concrete Mixer Machine , 25m3 / H Onsite Concrete Mixer


Products Introduction of Industrial YHZS25 Mobile Concrete Mixer Machine , 25m3 / H Onsite Concrete Mixer

Zhenheng YHZS series mobile ocncrete batching plant adopt the 500 litre twin shaft JS500 industrial concrete mixer which made by the matching degree of high-quality and external parts, versatility, easy maintenance, customer use pressure-free, low cost of use, save customer time and money costs.


The main features of Industrial YHZS25 Mobile Concrete Mixer Machine , 25m3 / H Onsite Concrete Mixer:
• Storing, weighing, transit, mixing and discharging are all controlled by full automatic control system, saves time vastly.
• Fully sealed production mode, with advanced dust removing system, vastly reduces dust and noise pollution.
• Unique designed mixing blades make the mixing easy, reliable and with high efficiency.
• High quality motor propelled vibration screen mesh, vastly increases efficiency, meantime lowers the fault rate.
• Specially designed storage bottom structure, vastly reduces floor area required.
• Adopts double full automatic computer or manual control system, with malfunction automatic diagnosis program, simple and reliable operation.


The technical parameters of Industrial YHZS25 Mobile Concrete Mixer Machine , 25m3 / H Onsite Concrete Mixer


ModelYHZ25
Theory capacity25m³/h
Discharging height3800mm
Total power38.5kw
Approximate weight without siloAbout 13T
Dimension(L * W * H)13.2m X 3.2m X 6.3m
Moving size(L * W * H)11.8m X 2m X3.8m
Mixing SystemModel of MixerJS500
Mixing motor18.5kw
Charging volume800L
Discharging volume500L
Aggregate SystemAggregate bin5m³×2
CylinderSCU φ100
Aggregate conveyer SystemMotorized PulleyWII-500x650
Conveyor beltW650×L21000mm
Measurement SystemCement weighing hopper300KG
Water weighing and support frame120KG
Additive weighing and support frame20KG
Pneumatic ControlSystemAir compressor0.6m³/min 1 sets
Electromagnetic gas valve4V310 6 sets
Moving SystemTowing pinφ50mm/ φ90mm 1 set
Tyre70R16 4sets
Computer Control SystemIndustrial control computer1 set
Display15” liquid crystal LCD

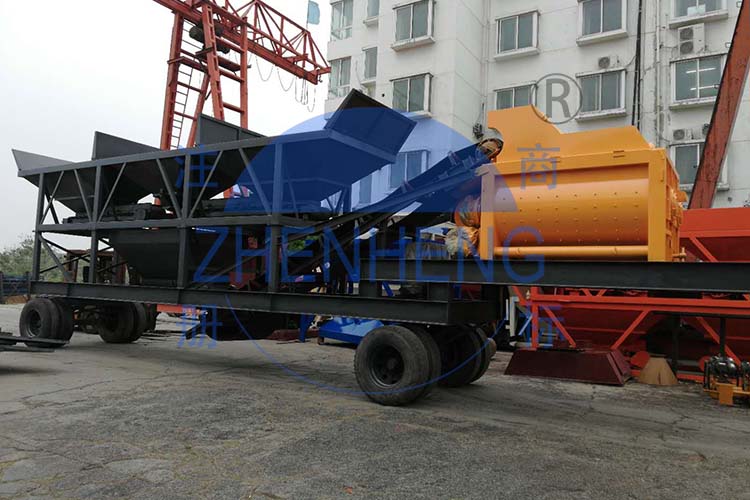

More photos of Industrial YHZS25 Mobile Concrete Mixer Machine , 25m3 / H Onsite Concrete Mixer


Q: Can you test our order before shipping?
A: Yes. All of our goods will test in factory before shipping to customer.


Q: How long it takes to do all the installation
A: It's at most 5days processing and manufacturing for single machine,for production line,at most 15days.


Q: Can we visit your factory?
A: Yes. You can visit our factory at anytime you want.

Q: Can you put our logo on the machine?
A: Yes,it is available.LOGO and color are usually as per customer's requirement.

Q: What’s the warranty time?
A: From the date of shipment, 1 year or 1500working hours, whichever comes first.

Q: What’s your payment term?
A: We accept T/T(30% down payment and balance before shipping) and L/C mostly, but if you prefer other payment terms please contact us for further information.

Q: How long is your delivery time?
A: Usually, it is 7-10 workdays if the goods are in stock, or it is 15-20 working days if the goods are not in stock, it is according to quantity.

Q: Can we paint our label on your product?

A: Of course. OEM and ODM are acceptable, please send us your logo or brand, we’ll paint for you.
