12PIN HRS Push-Pull Self-Locking Industrial Camera Connector For Machine Vision

12PIN HRS Push-Pull Self-Locking Industrial Camera Connector For Machine Vision

Product Description

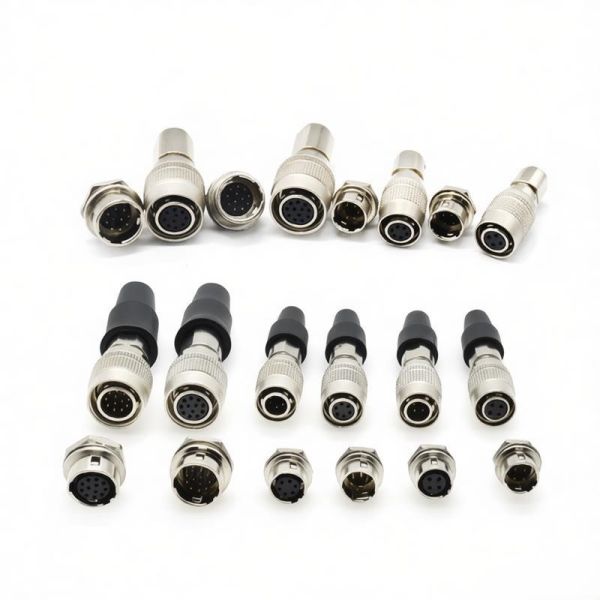

This is a high-precision, push-pull self-locking circular connector series designed specifically for industrial cameras and machine vision systems. It features a compact metal housing with reliable push-pull quick-release locking mechanism, making it easy to connect and disconnect while ensuring secure mating under vibration. Available in 4-pin, 6-pin, 7-pin, 10-pin, and 12-pin configurations, it is widely used for power supply, trigger signals, GPIO, and data transmission between industrial cameras (Basler, Cognex, Sony, AVT, JAI, etc.) and controllers or cables.

High-lighting Benefits

1. Precise Triggering: Enables accurate sensor-triggered image capture for high-speed machine vision applications.
2. Reliable Connectivity: Robust AISG locking connector ensures secure connection in vibrating industrial environments; SMH200 provides compact, reliable board-level connection.
3. High Compatibility: Works with major industrial camera brands for power, trigger, and I/O signals.
4. Customizable & Durable: Flexible cable lengths, good shielding against EMI, and industrial-grade materials for long-term reliability.
5. Cost-Effective: Direct from Chinese manufacturer (Dongguan area suppliers), suitable for OEM/volume production.

Technical Parameters

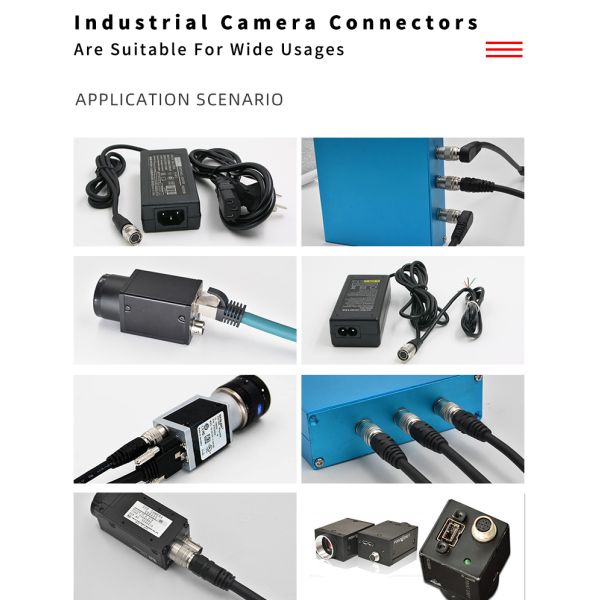

Application Scenarios

• Machine vision inspection systems on production lines (e.g., defect detection, measurement).
• Robotics and automation for part picking, alignment, or quality control.
• Industrial cameras in factory automation, semiconductor, automotive, or pharmaceutical manufacturing.
• Triggering external sensors (photoelectric, proximity) to synchronize camera captures.
• Integration with PLCs, GigE Vision, or Camera Link setups.

FAQ:

Q: What is the main purpose of this cable?
A: It connects industrial cameras to trigger sensors or controllers for synchronized image acquisition.

Q: Is the cable length customizable?
A: Yes, custom lengths and pin assignments are available, contact us for details.

Q: Is it compatible with Basler or Sony industrial cameras?
A: Yes, commonly used with HR series style or similar camera interfaces for power/trigger signals.

Q: What is the difference between AISG and SMH200 connectors?
A: AISG is a robust circular connector for reliable field connections; SMH200 is a compact 2.0mm pitch board connector.

Q: Does it support waterproof applications?
A: Many variants are designed with IP-rated protection for harsh industrial environments—confirm with the specific listing.

Q: What is the minimum order quantity (MOQ)?
A: Typically 100pcs or customized from 1k pcs for trial orders.
