20mm Brush DC Geared Motor with Encoder
20A130 20mm Brush DC Geared Motor 12V Spur Gear Reducer Low RPM
Permanent Magnet Micro Motor with Encoder
Product Features
- High Efficiency: 90%-65% operating efficiency
- Motor Model: FF-130 or FF-180 DC Micro Motor
- Rated Speed: 5rpm - 4000RPM (customizable)
- Constant rotating speed with custom specifications available
- Compact Size: 20mm diameter planetary gear DC motor
- Certifications: CE, RoHS, ISO9001, REACH, 16949
- Low noise operation suitable for small diameter applications
- Motor Type: Brushed Motor with metal or carbon brushes
- Bidirectional Operation: CW & CCW available
- Operating Temperature: -40°C to +60°C
- Rated Power: 1W-5W with maximum torque of 5KG.cm
- Multiple Shaft Options: Round, D-cut, Double-cut, Threaded, or with
holes
Technical Specifications
Key Attributes
| Speed (RPM) | 5rpm-4000rpm |
| Continuous Current | Customized |
| Efficiency | 90%-65% |
| Place of Origin | Guangdong, China |
| Brand Name | Masing Motor |
| Model Number | MS-20A130 |
| Rated Torque | 0.01-5kg.cm |
| Shaft Diameter | φ4mm, D-cut |
| Gearbox Diameter | φ20mm |
| Noise Level | ≤55DB |
| Minimum Order Quantity | 1000Pcs |
Product Images

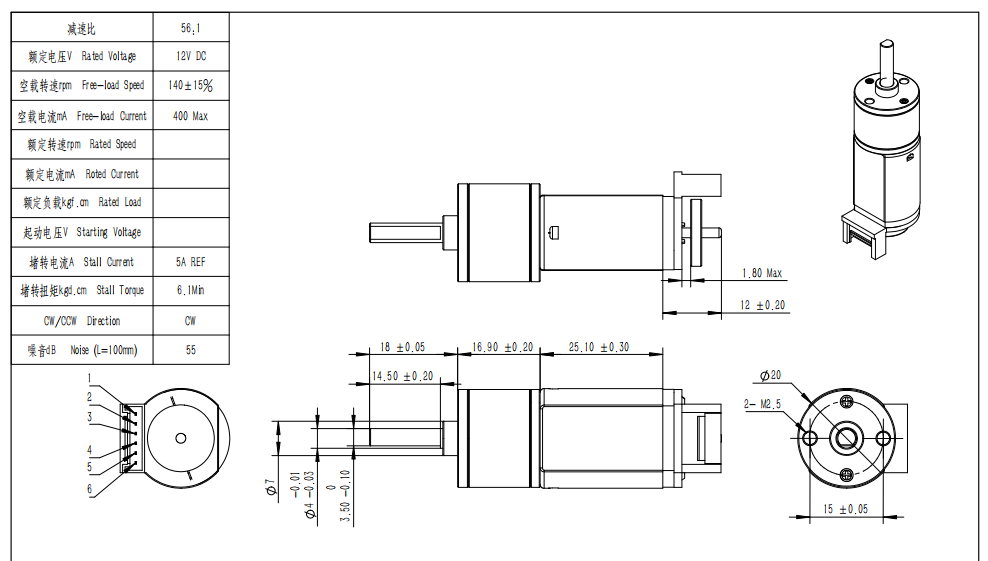

Performance Data
Applications
Intelligent household appliances, office automation, automotive,
medical, personal care, robot, electronic lock, industrial
automation, door-lock systems, robotics, toys, 5G products, SMART
HOME devices, electric bicycle locks, and cosmetic instruments.
Packaging & Delivery
Strong Carton packaging (200pcs/box) or customized packaging
available. Shipping from Shenzhen, Guangzhou, or Shanghai ports.
Package Details
| Single Package Size | 37×27×24cm |
| Single Gross Weight | 85g |
| Supply Ability | 100,000 pieces per month |
Lead Time
| Quantity (pieces) | Lead Time (days) |
|---|
| 1 - 100 | 10 |
| 101 - 1000 | 15 |
| > 1000 | To be negotiated |
Samples
Maximum order quantity: 1 piece. Sample price: $15/piece.
Certifications
Factory Overview
Product Classification
Frequently Asked Questions
Q1: How to select a suitable motor?
A1: If you have motor pictures, drawings, or detailed
specifications like voltage, speed, torque, motor size, working
mode, required lifetime, and noise level, please share them with
us. We will recommend the most suitable motor for your application.
Q2: Do you have a customized service for your standard motors?
A2: Yes, we offer customization for voltage, speed, torque, and
shaft size/shape. We can also add wires/cables, connectors,
capacitors, or EMC components as required.
Q3: Can I have samples for testing first?
A3: Yes, after confirming the required motor specifications, we
will provide a proforma invoice for samples. Once payment is
received, we will proceed with sample production.
Q4: How do you ensure motor quality?
A4: We maintain strict quality control procedures including
incoming material inspection, production process inspection, and
final inspection to ensure all products meet quality standards
before shipping.
Q5: When will you reply after receiving my inquiries?
A5: We respond to all inquiries within 24 hours.
Q6: Can I visit your company?
A6: Yes, we welcome company visits. Please notify us at least two
weeks in advance to schedule your visit appropriately.
